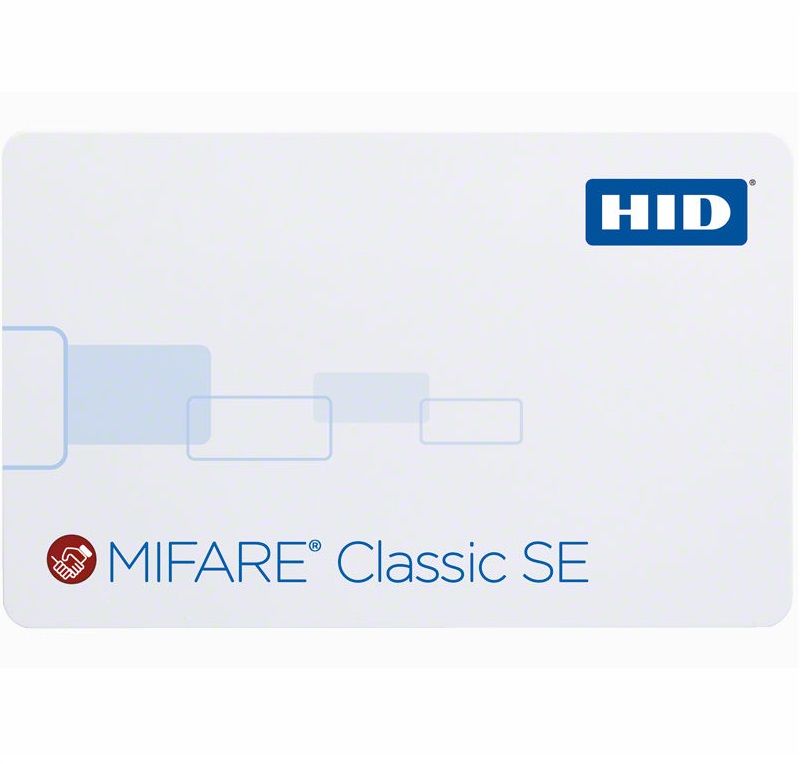

HID 340x MIFARE Classic SE

$5.58 (incl. GST)

POSMarket SKU: Z17490

3400PGGMN: SIO Enabled for Mifare Contactless Smart Card, 1k Memory with 16 Sectors

SIO Technology-Enabled Cards for MIFARE® with ISO Thick, Photo Imageable

Product Rating
Product Overview
The HID's SIO Technology-Enabled (SE) Cards for MIFARE are part of the next generation access control platform and open ecosystem based on HID's Trusted Identity Platform was designed to provide additional key diversification, authentication, encryption and portability for advanced applications, unprecedented mobility, heightened security and enhanced performance.

The 13.56 MHz read/write contactless SE Card for MIFARE is a credit card-sized smart card credential that can be used for diverse applications such as physical access control, PC logon, biometric verification, time and attendance, cashless vending, public transportation, airline ticketing and customer loyalty programs.

Features
  • Ensures data authenticity and privacy through the multi-layered security of HID's SIO
  • HID Global's TIP for secure provisioning
  • SIO data binding inhibits data cloning by binding an object to a specific credential
  • New access control platform that offers secure, standards-based, technology-independent and flexible identity data structure
Product Specifications
SIO Technology-Enabled Cards for MIFARE®
Base Part Number 3400 PVC SE Card for MIFARE® 1K
3406 PVC SE Card for MIFARE 4K
3450 Composite PET/PVC SE Card for MIFARE 1K
3456 Composite PET/PVC SE Card MIFARE 4K
General
Description SE Card for MIFARE, ISO Thick, Photo Imageable
Card Construction Gloss white/white PVC or PVC/Polyester Composite
Dimensions 2.125" x 3.375" x 0.070" max. (5.40 x 8.57 x 0.18 cm)
Weight 0.20 oz (6.0 g)
Operating
Temperature 3400, 3406 PVC Cards: -40 to 122º F (-40 to 50º C)
3450, 3456 Composite Cards: -40 to 158º F (-40 to 70º C)
Humidity 5-95% non-condensing
Performance
Frequency 13.56 MHz
RF Interface ISO 14443 A, Parts 1-3
Transaction Time <100 ms
Baud Rate 106 Kbps
Memory Type EEPROM
Memory Specification 1K Byte (8,192 bits) or 4K Bytes (32,768 bits)
Memory Sector 0 is used as the MIFARE® Application Directory (MAD)

Unique 4 Byte (32 bit) ID per card (CSN)
Each sector uses two encryption keys - Key “A” to read only; Key “B” to read/write
Each encryption key is 6 Bytes (48 bits)
Multi-application Memory MIFARE 1K: memory arranged in 16 64-Byte Sectors
MIFARE 4K: memory arranged in 40 Sectors: 32 sectors of 64 Bytes, 8 sectors of 256 Bytes
Write Endurance Min. 100,000 cycles
Data Retention 10 years
Typical Maximum Read Range Up to 4"
*Dependent upon installation conditions.
Card Marking Inkjet standard, Laser engraving optional
Custom Graphics Optional
Programming Factory or field programmable
Operates With iCLASS SE readers and any reader that can read DESFire or MIFARE technology.
Warranty Lifetime warranty. See complete warranty policy for details.
ModelDescriptionPriceStock
3400PGGMN SIO Enabled for Mifare Contactless Smart Card, 1k Memory with 16 Sectors $5.58
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document SIO Enabled for Mifare Smart Card Datasheet.pdf 449KB Download
PDF Document HID iCLASS SE Brochure.pdf 1MB Download
PDF Document HID Card Technology Guide.pdf 2MB Download
