POSMarket SKU: Z17534
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

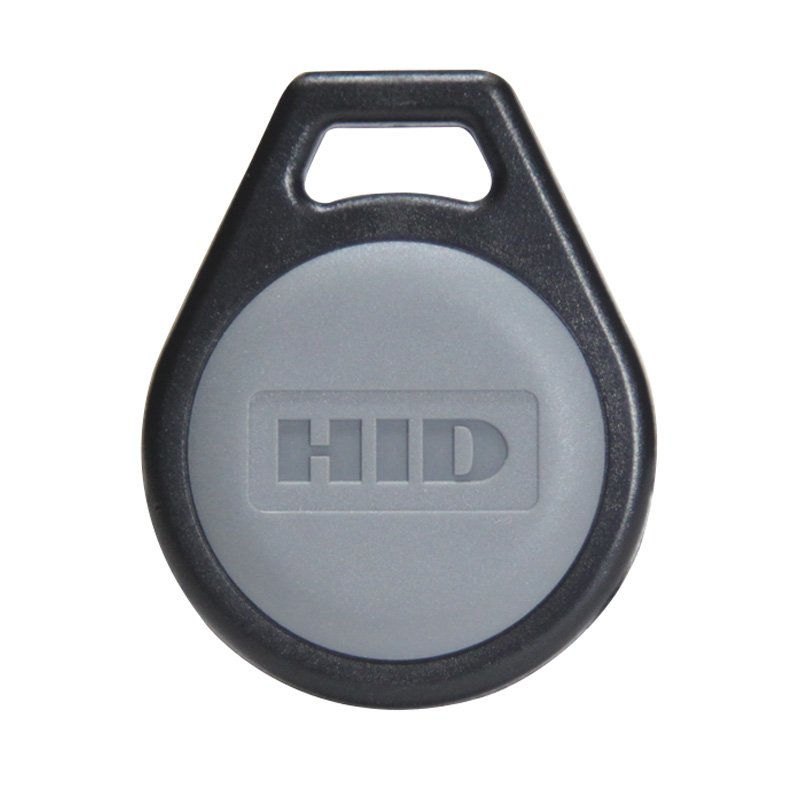

Soes 8K Key Fob that is compact and convenient credential for key ring applications
Seos 8K Key Fob | |
Operating Frequency | 13.56 MHz |
Communication Protocol Compliance | ISO14443A-4 |
Communication Speed | Up to 848kbps |
Memory Type | EEPROM |
Memory Size | 8 Kbytes |
Multiple Applications Support | Yes (using Open Data Profile) |
SIO Data Object Support | Yes (Enabled by default) |
HID Format Support | Yes (wrapped in SIO) |
Write Endurance / Data Retention | Min 100,000 cycles / 10 years |
Typical Transaction Time | Data size dependent |
Extended Privacy Support | Yes |
Security Features | Mutual authentication (compliant to ISO/IEC 24727-3), key diversification (based on NIST SP800-108 using AES 128), secure messaging (compliant to EN14890-1:2009). Session key derivation based on NIST SP 800-56A. |
Security Certification | Common Criteria (CC) EAL 5+ HW certified platform |
UID | Random UID (default), 7 byte static UID (optional, not recommended) |
COMPATIBILITY AND PERFORMANCE | |
iCLASS SE² Readers (non-keypad variants) | Up to 3 cm (1.18â€) |
iCLASS SE² Readers (keypad variants) | Up to 1 cm (0.3â€) |
iCLASS SE Express | Up to 3 cm (1.18â€) |
CP1000D Desktop Encoder | Read/ Write (SIO) / R/W to custom ADF |
iCLASS SE Biometric Reader | Template R/W up to 2cm (0.78â€) |
iCLASS SE RB25F Fingerprint Reader | Template R/W up to 2cm (0.78â€) |
Omnikey Readers3 | Read SIO and R/W to Open Data or custom ADF |
Embedded SE devices | 4 Read SIO and R/W to Open Data or custom ADF |
MECHANICAL, ENVIRONMENTAL AND COMPLIANCE | |
Card Construction | Ultrasonically welded ABS Shell with TPE insert |
Weight | 0.13 oz (3.8g) |
Operating Temperature | -13° F to 185° F (-25° C to + 85°C) |
Storage Temperature | -13° F to 185° F (-25° C to + 85° C) for 1000h |
Thermal Shock | -31° F to 185° F (-35° C to + 85°C) 100 cycles (soaking time 5 min, transition time 30 s) |
Chemical Resistance | The card can withstand exposure salt water (5%) salt mist, acetic acid water (5%), carbonated sodium water (5%), sugared water (10%), ethylene glycol (50%) for at least 24 hours |
Standards Compliance | ISO14443-4, ISO/IEC 24727-3:2008, EN 14890-1:200 |
Environmental Compliance | IP67 (1m /1 hour), RoHS, China RoHS, REACH, Halogen Free |
Warranty | Lifetime Warranty |
Model | Description | Price | Stock | |
---|---|---|---|---|
5266CPROG | SEOS Only Key Fob, 8K (Custom Programmed Locally) | $14.73 | Add to Cart | |
5266HPROG | iCLASS SEOS Contactless Smart Key Fob, 8k bit, (Custom Programmed by HID), MOQ 100 | $8.37 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
Seos 8K Key Fob Datasheet.pdf | 304KB | Download |
