POSMarket SKU: Z17599
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

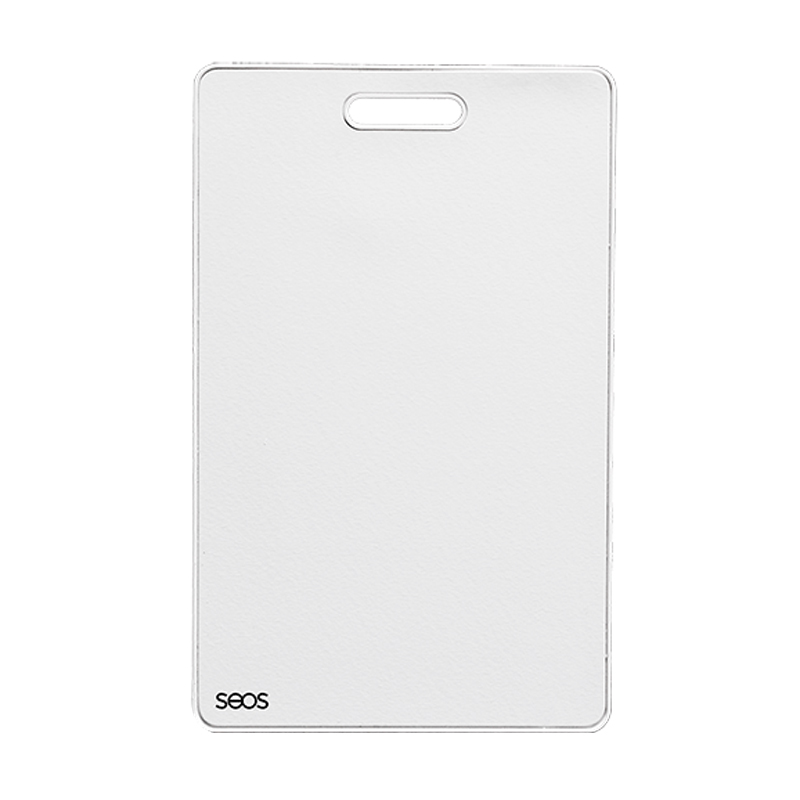

The Seos 8K Clamshell that is highly durable, slot-punched contactless smart card
Seos 8K Clamshell | |
Base Part Number | 565 |
Operating Frequency | 13.56 MHz |
Communication Protocol Compliance | ISO14443A-4 |
Communication Speed | Up to 848kbps |
Memory Type | EEPROM |
Memory Size | 8 Kbytes |
Multiple Applications Support | Yes (using Open Data Profile) |
SIO Data Object Support | Yes (enabled by default) |
HID Format Support | Yes (Wrapped in SIO) |
Write Endurance / Data Retention | Min. 500,000 cycles / 10 years |
Typical Transaction Time | Data size dependent |
Extended Privacy Support | Yes |
Security Features | Mutual authentication (compliant to ISO/IEC 24727-3), key diversification (based on NIST SP800-108 using AES 128), secure messaging (compliant to EN14890-1:2009). Session key derivation based on NIST SP 800-56A. Common Criteria (CC) EAL 5+ HW certified platform |
Security Certification | 0.17 oz (5 g) UID Random UID (default), 7 byte static UID (optional, not recommended) |
Compatibility & Performance | |
iCLASS SE Readers | Up to2” (5 cm) |
multiclass SE Readers | Up to 1.6”(4 cm) |
CP1000D Desktop Encoder | Read/ Write (SIO) / R/W to custom ADF |
iCLASS SE Biometric Reader | Template R/W up to 1.2”(3 cm) |
iCLASS SE RB25F Fingerprint Reader | Template R/W up to 1.2” (3 cm) |
Omnikey Readers | Read SIO and R/W to Open Data or custom ADF |
Embedded SE devices | Read SIO and R/W to Open Data or custom ADF |
Mechanical, Environmental and Compliance | |
Card Construction | Ultrasonically welded ABS shell with matt PVC label |
Weight | 0.24 oz (6.8g) |
Operating Temperature | -13° F to 185° F (-25 °C to + 85 °C) |
Storage Temperature | -13° F to 185° F (-25 °C to + 85 °C) for 1000h |
Thermal Shock | -31° F to 185° F (-35 °C to + 85 °C) 100 cycles (soaking time 5 min, transition time 30 s) |
Chemical Resistance | The card can withstand exposure salt water (5%) salt mist, acetic acid water (5%), carbonated sodium water (5%), sugared water (10%), ethylene glycol (50%) for at least 24 hours |
Standards Compliance | ISO14443A-4, ISO/IEC 24727-3:2008, EN 14890-1:200 |
Environmental Compliance | RoHS, China RoHS, REACH, Halogen Free |
Warranty | Lifetime Warranty |
Model | Description | Price | Stock | |
---|---|---|---|---|
5656CPROG | SEOS Only Clamshell Card, 8K (Custom Programmed Locally) | $10.97 | Add to Cart | |
5656PMSAV | SEOS Only Clamshell Card, 8K | $6.55 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
SEOS Only Clamshell Card Datasheet.pdf | 221KB | Download |
