Indala FPISO FlexISO

from $13.48 (incl. GST)

POSMarket SKU: Z17924

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

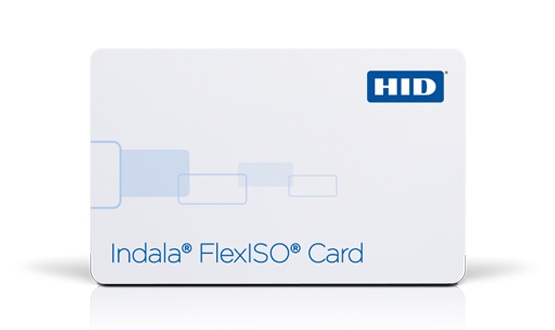

The durable proximity composite card for extreme card applications

Product Rating
Product Overview
The HID's Indala FlexISO Imageable card is ISO 7810 compliant with a nominal thickness of 0.76mm, and has the ability to contain multiple ID technologies in a single credential. The card can include a magnetic stripe for use with other systems, such as cafeteria vending, copy machines and fuel dispensing.

The Indala FlexISO card can be programmed in the factory or in the field using the Indala ProxSmith Programmer & Toolkit with Wiegand, magnetic stripe and serial data formats. It can be used interchangeably with other Indala credentials on most systems and can be ordered with specified facility codes and ID numbers. Digital photographs and graphics can be printed directly over the FlexISOs front surface by using a dye-sublimation printer. Bar codes can be imaged onto the card for systems tracking, time and attendance or job costing.


Features
  • True Credit-Card Thickness - Imageable access credential.
  • Graphics-Quality Surface - On both sides.

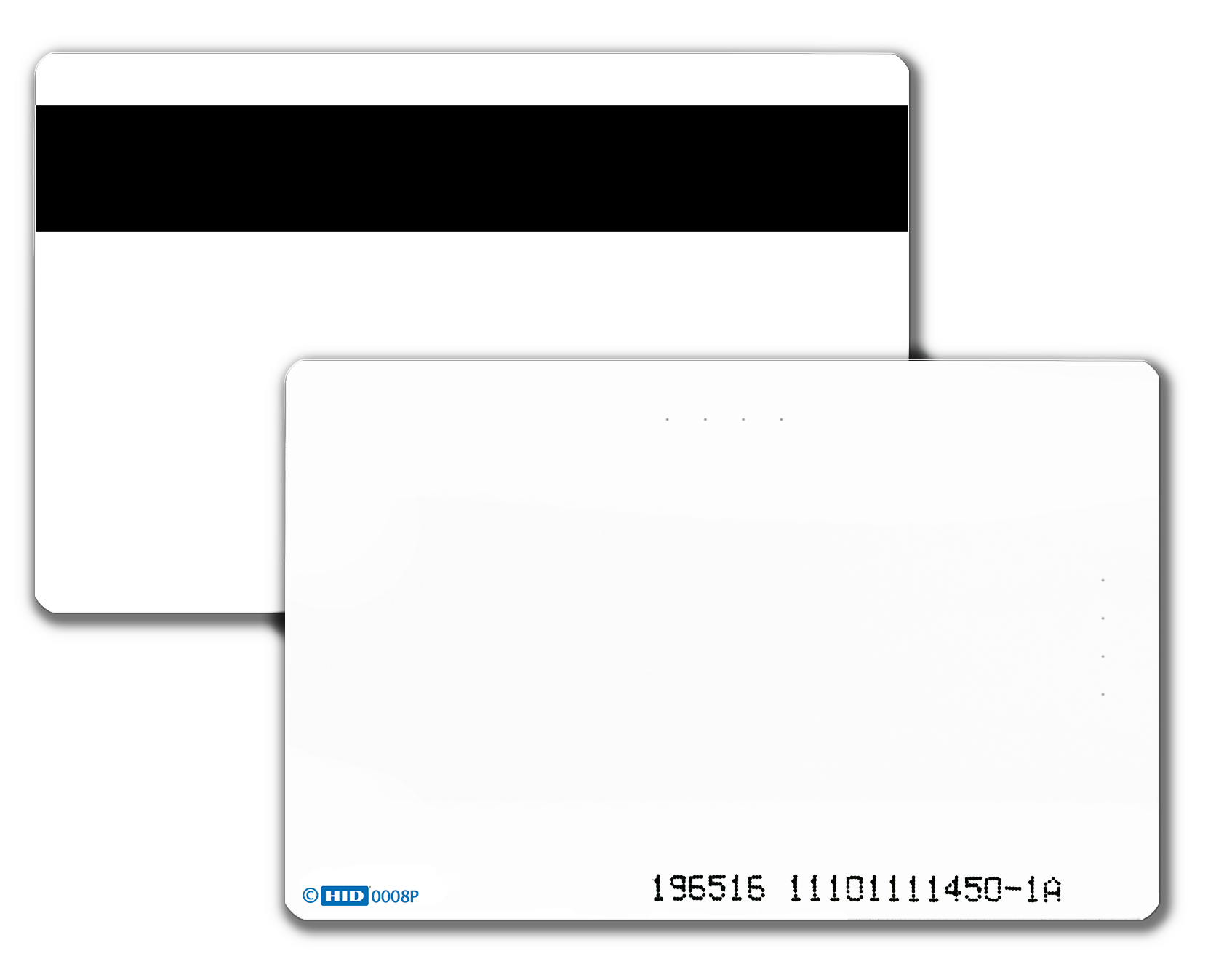

  • Many Systems Applications - Contains an optional magnetic stripe for use with other systems, such as cafeteria vending, copy machines and fuel dispensing.
  • As with all Indala cards, the FlexISO is compatible with all Indala readers, and can be easily encoded with Indala's ProxSmith Programmer and toolkit.
  • The passive, no-battery design allows for an infinite number of reads, and is warranted for life against defects in materials and workmanship.
  • PVC card surface is optimized for dye sublimation printing.
  • Can be combined with a magnetic stripe, bar code, a multitude of smart chips, and MIFARE®.
Product Specifications
FlexISO® XT Card
Dimensions 3.38”H x 2.12”W x 0.03”T (86 mm x 54 mm x .73 mm) nominal
Weight 0.20 oz (6g)
Module and Cover Design

Slim/Wallswitch
Linear/Arch/ Curve/Wave

Classic
Linear

Mid-Range
Arch/Wave

Long Range
Arch
Typical Maximum Read Range


Up to 4” (10 cm)


Up to 5” (12 cm)


Up to 12” (30 cm)


Up to 26” (66 cm)
Operating Temperature 32° F to 122° F (0° C to 50° C
Inkjet Marking Includes sales order number and ID number matching internal ID.
Custom Graphics Available on FlexISO with customer-supplied artwork.
Slot Punch Optional vertical or horizontal (locations indicated on card)
Coding Wiegand, ABA Track II Magnetic Stripe, others available (exact coding standard, with no gaps or over-runs)
Programming Factory or field programmable via Indala ProxSmith® Programmer and Toolkit
Part Number FPISO
Description Standard Part Number: FPISO-SSSCNA-0000
125 kHz, white glossy finish (front), white glossy finish with Indala logo (back), inkjet marking on standard location, no slot punch, no magstripe, no artwork.
Warranty Lifetime
ModelDescriptionPriceStock
FPISO-M FlexISO Printable ISO 7810 Compliant Prox / Magswipe card $17.33
Call
Add to Cart
FPISO FlexISO Printable ISO 7810 Compliant Prox card $13.48
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document FlexISO Card Datasheet.pdf 164KB Download
