Hikvision HIK-PWA32-KST

from $455.13 (incl. GST)

POSMarket SKU: Z16310

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Hikvision Axiom Hub Kit, 3/4G, 1x PIR, 1x Door Contact, 5x Mifare tags & 1x Key Fob

Product Rating
Product Overview
The Hikvision Axiom wireless alarm is a hub based wireless solution which has 32 wireless zones and supports TCP/IP, Wi-Fi, and 3G/4G communication paths. It is capable of managing 32 wireless outputs, 8 wireless key fobs, 2 wireless sirens and supports up to 13 network users, including 1 installer, 1 administrator, and 11 normal users. The Axiom hub also offers, Hik-Connect and DC-09 IP Contact SIA/ID for monitoring and it's numerous features include voice prompts, push notifications, SMS, email and voice calls.

Hikvision's Axiom hub allows viewing of live video and sends emails of alarm-linked videos via mobile client, there's long distance 2-way communication with AES-128, LED indication of system status and a 4520 mAh lithium battery giving a 12-hour backup power supply.

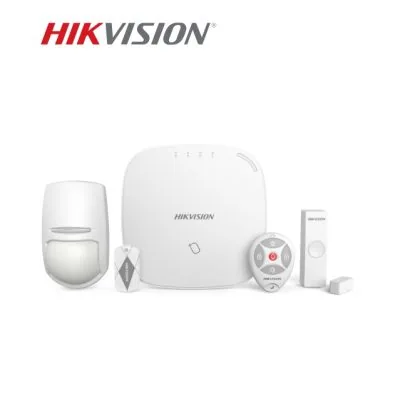

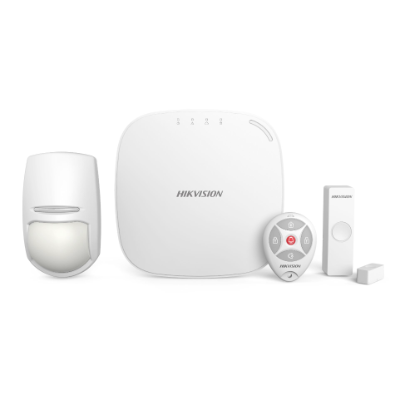

The HIKS-PWA32-KST starter kit includes a white 3G/4G Axiom hub with built in Mifare card reader, 1x HIK-PD2-P10P-W pet immune PIR, 1x HIK-PD1-MC-WWS door contact, 1x HIK-19K00-Y fob, 5x HIK-PTS-MF Mifare tags, 1x battery and 1x power adapter.

N.B. The Axiom system is not compatible with the AX PRO system.
Features
  • 3G / 4G
  • TCP/IP
  • WiFi
  • 32 wireless zones
  • 32 wireless outputs
  • 8 key fobs
  • 12 Mifare tags
  • 2 wireless sirens
  • Video verification
  • Push notifications
  • Voice prompt
  • Voice reporting
  • SMS reporting
  • Email reporting
  • Contact ID / SAI (DC09 IP protocol)
  • Tamper detection
  • Wireless range up to 800m open air
Product Specifications
ManufacturerHikvision
Packaged Quantity1
TypeKit
Frequency433MHz
Power5VDC Power Adapter
Size155mm x 155mm x 35mm
Weight165g
PackagingOEM Packaging
DS-PWA32-K
Detection performance
Detection Range 10m (DS-PD2-P10P-W (433MHz))
Detection Angle 85° (DS-PD2-P10P-W (433MHz))
Velocity range 0.3m/s ~ 3.0m/s (DS-PD2-P10P-W (433MHz))
Pet Immunity 24kg (DS-PD2-P10P-W (433MHz))
Software features
Partition 4
Onboard video clips Up to 2-ch onboard video
Tamper-Proof Tampering alarm(DS-PWA32-HSR(433MHz) Front, rear, and bracket tamper signal input(DS-PD2-P10P-W(433MHz)) Front and rear(DS-PD1-MC-WWS(H)(433M)）
Schedule Auto Arm/Disarm Schedule
SMS notification Support
Phone call notification Support
Phone numbers 8
Signal strength indication Signal Strength Indicators (SSI)
Firmware undate tools Web client / iVMS-4200 / Hik-Connect
Configuration tools Web client / iVMS-4200 / Hik-Connect
Application iVMS-4200, and mobile APP
Protocol SIA - Contact ID; EHome v5.0
IC Card 5
User 13 (1 installer, 1 administrator, and 11 general user)
Hardware features
Alarm input 32
Alarm output 32
Indicator LED
RF transmission
RF Frequency 433MHz
RF Modulation 2GFSK (DS-PWA32-HSR (433MHz) FSK (DS-19K00-Y(433MHz
RF Speed 10kbps（DS-19K00-Y (433MHz), DS-PD1-MC-WWS (H) (433M)
RF Range 800m (Open Area) (DS-PWA32-HSR (433MHz, DS-PD2-P10P-W(433MHz, DS-PD1-MC-WWS(H)(433M)）300m (Open area)（DS-19K00-Y(433MHz)
Audio
Audio output 1, 1.5W
Electrical Characteristics
Power supply 5 VDC，10 W (DS-PWA32-HSR (433MHz) CR2032 3.0V, 2-year power supply（DS-19K00-Y (433MHz)
Battery type 4520 mAh lithium backup battery (DS-PWA32-HSR (433MHz) 1 x CR123A (DS-PD2-P10P-W (433MHz)) 1 x CR123A, 3.0V (DS-PD1-MC-WWS (H) (433M), CR2032 3.0V (DS-19K00-Y (433MHz))
Battery life span Rechargeable lithium battery, supports up to 12h power supply(DS-PWA32-HSR(433MHz) 2 years Battery life (DS-PD2-P10P-W(433MHz, (DS-PD1-MC-WWS(H)(433M), DS-19K00-Y(433MHz)）
Power Consumption < 5.6 W
Wireless transmission
Wired network 10M/100M Self-adaptive
Network encryption AES-128 encryption
Wi-Fi Standard 802.11b/g/n
Wi-Fi Encryption Supported
Wi-Fi Channel 2.4 G
General
Operation temperature -10 °C to 55 °C (DS-PWA32-HSR (433MHz), DS-PD1-MC-WWS (H) (433M), DS-19K00-Y (433MHz) '-10°C~+40°C (DS-PD2-P10P-W (433MHz))
Operation humidity 10% to 90%
Shell material PC+ABS
Dimension(WxHxD) 155 x 155 x 35mm(DS-PWA32-HSR(433MHz)
117mm x 69mm x 50mm (DS-PD2-P10P-W(433MHz)
84mm x 25mm x 20.99mm (DS-PD1-MC-WWS(H)(433M
63mm x 49mm x 16mm(DS-19K00-Y(433MHz)

125g (DS-PD2-P10P-W(433MHz)
37g(DS-PD1-MC-WWS(H)(433M)
24.5g(DS-19K00-Y(433MHz))
Application scenario indoor
Color White
Installation height 1.8m ~ 2.4m (DS-PD2-P10P-W (433MHz))
Bracket Including 1 x Ceiling mounting bracket, 1 x Wall mounting bracket, used by DS-PD2-P10P-W (435MHz)
Device management
Keyfob 8
Wireless siren 4
Tag reader 4
Keypad 4
ModelDescriptionPriceStock
HIK-PWA32-KST Hikvision Axiom Hub Kit, 3/4G, 1x PIR, 1x Door Contact, 5x Mifare tags & 1x Key Fob $479.33
Call
 Add to Cart

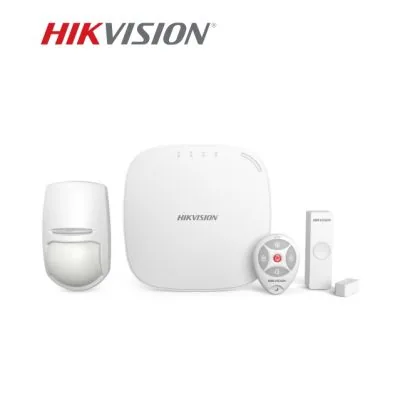

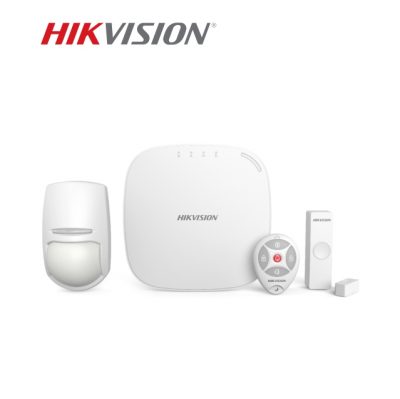

DS-PWA32-K Hikvision AX Hub Kit, DS-PWA32-H (White, 433MHz) x 1, Wireless detector x 1, Wireless Magnetic Contact x 1, Wireless Keyfob x 1 $455.13
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document AX Series Wireless Security Control Panel Datasheet.pdf 856KB Download
PDF Document AX-PRO-Panel- 6MB Download
PDF Document AX-PRO-Brochure---433 2MB Download
