POSMarket SKU: Z18434

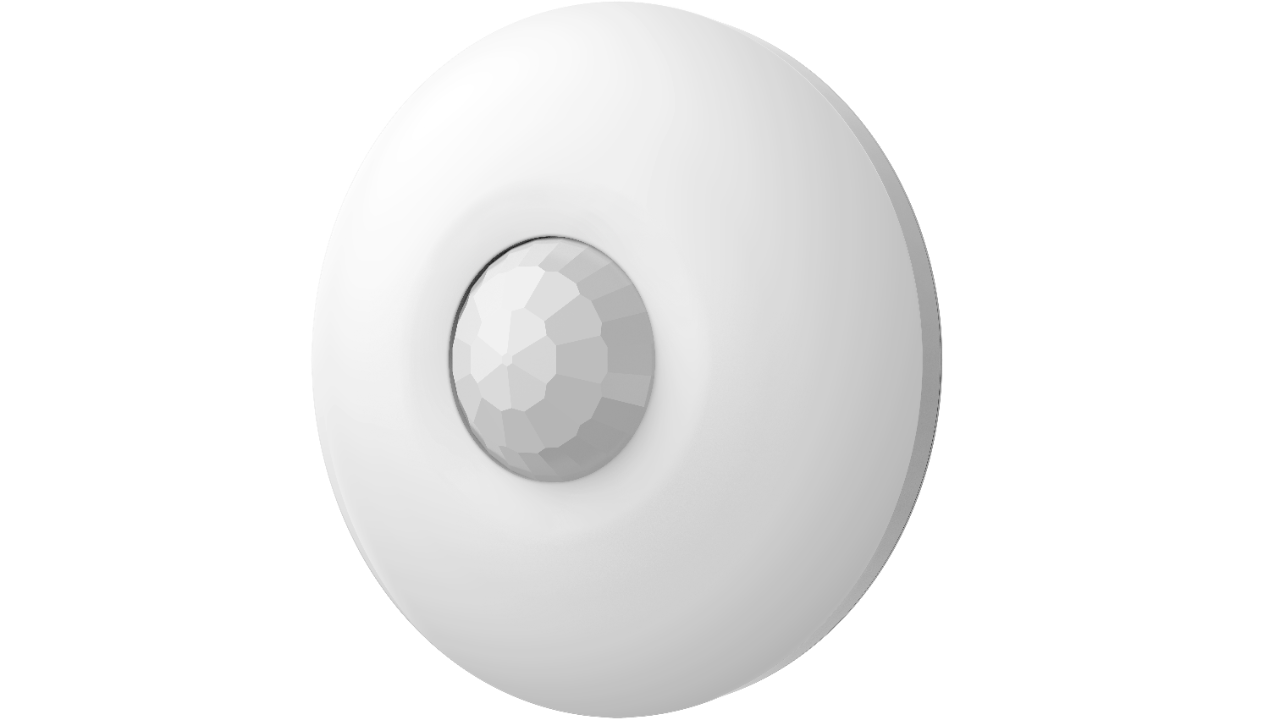

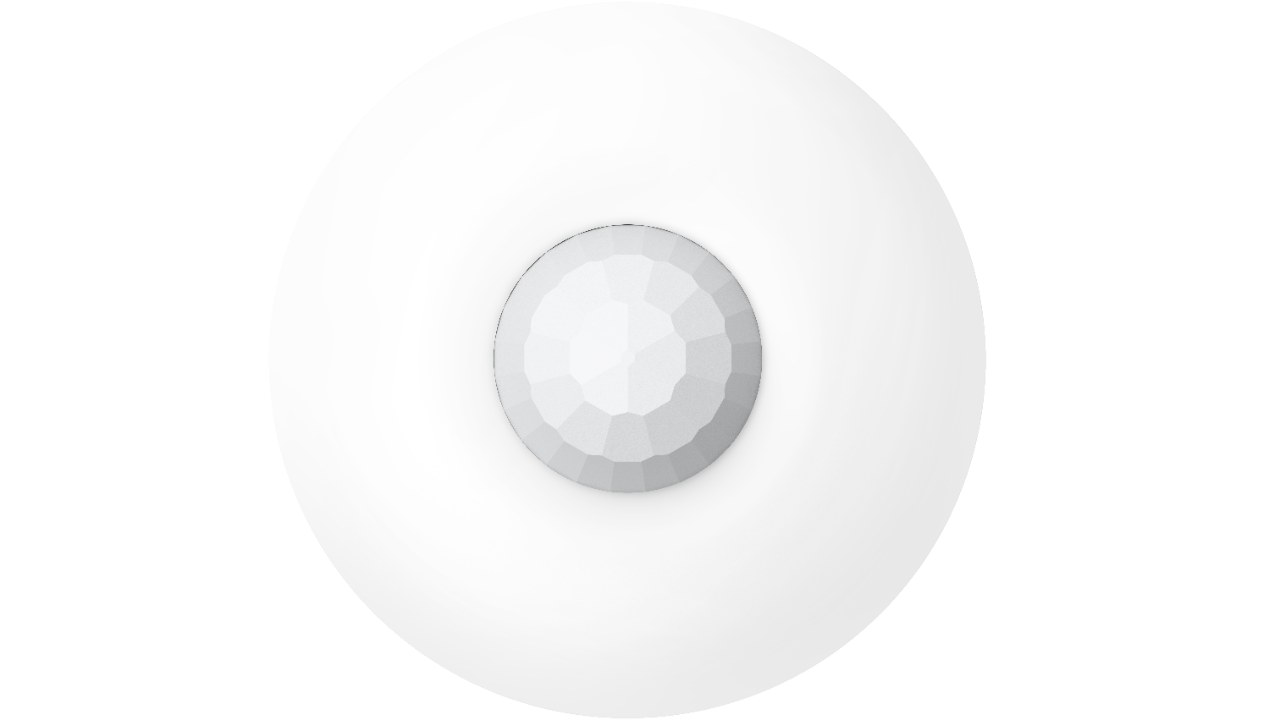

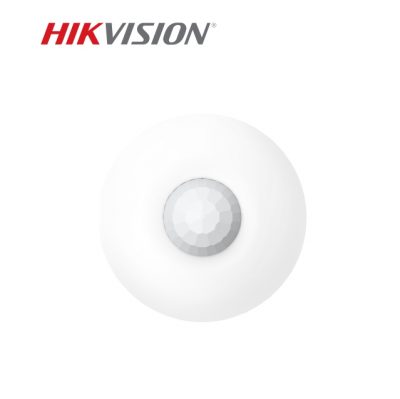

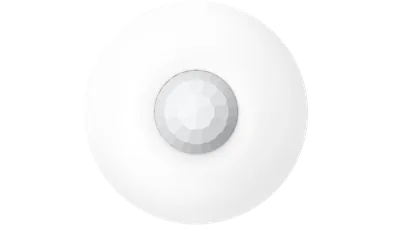

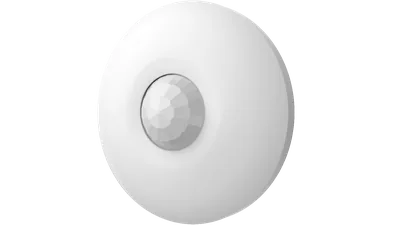

Ax Pro Wireless PIR Ceiling Detector 360°
| DS-PDCL12-EG2-WB | |
| Detection Performance | |
| Detection Method | Passive Infrared |
| Detection Range | 12m |
| Detection Angle | 360° |
| Detection Zones | 172 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | Auto;Low |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front; Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power up Enrolling |
| LED Indicator | Blue (Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range (Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up; Remote ID;QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 5 years in work status (being triggered 20 times per day) |
| Power Supply | Battery Powered |
| Battery Type | CR123A x 1 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F ) |
| Storage Temperature | -20°C to 60 °C (-4 °F to 140 ° F) |
| Operation Humidity | 10% to 90% |
| Dimension (WxHxD) | φ101.2 mm x 32.9 mm 109.5g |
| Mounting Height | 2.4 to 4m |
| Mounting Method | Ceiling |
| Application Scenario | Indoor |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-PDCL12-EG2-WB | Hikvision Ax Pro Wireless PIR Ceiling Detector 360 degree | $59.68 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
DSPDCL12EG2WB Datasheet.pdf | 798KB | Download |
|
DSPDCL12EG2WB User Manual.pdf | 3MB | Download |
|
DSPDCL12EG2WB Quikc Start Guide.pdf | 4MB | Download |
