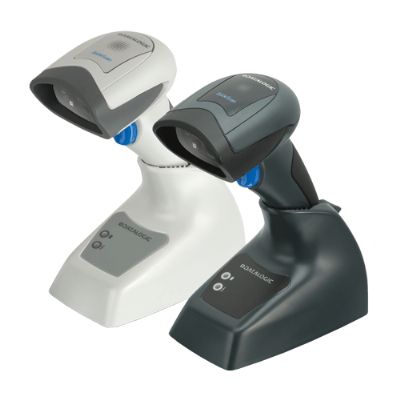

Datalogic QM2131

from $398.48 (incl. GST)

POSMarket SKU: Z2082

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433 Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.

Product Rating
Product Overview

The QuickScan QM2131 imagers extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.

Features
  • Cordless 1D Linear Imager Scanner
  • Extra-wide scan angle and extra-long scan line
  • Sharp and highly visible scan line
  • Enhanced depth of field for general purpose scanning applications
  • Datalogic's STAR2.0 Cordless System with up to 25.0 m / 82.0 ft range
  • Secure radio communications, interference-free with low sensitivity to obstacles
  • Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
  • New battery package allows simultaneous change of charging contacts during battery replacement
  • Alternative battery recharging through USB /microUSB cable
  • Datalogic's patented 'Green Spot' technology for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
Scan EngineLinear Imager
Light SourceRed LED 610 - 650 nm
Scan PatternSingle Line
Scan Rate400 reads/sec
Motion ToleranceN/A
Image CaptureN/A
Capture AreaN/A
Contrast RatioMinimum 25%
Resolution0.102 mm / 4 mils (Linear Barcodes)
Depth of field4 mils - 3.0 to 11.0 cm
5 mils - 2.0 to 15.0 cm
7.5 mils - 2.0 to 25.0 cm
10 mils - 2.0 to 36.0 cm
13 mils - 1.0 to 45.0 cm
20 mils - 4.0 to 70.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle+/- 45 Degrees
Pitch Angle+/- 65 Degrees
Skew Angle+/- 70 Degrees
Ambient Light Immunity0 to120,000 Lux
Symbologies supported1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites
Programming MethodAutomatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin: Windows configuration program
Driver availableJavaPOS, OPOS Utilities
Indicators/ControlsBeeper (Adjustable Tone and Volume)
Datalogic's "Green Spot" Good read feedback
Good read LED
Operating ModesTrigger, Auto-Trigger
Communication TypeStar 2.0 Cordless System
Communication Technology433 MHz Radio Frequency
Point to Point Configuration
Open Air Radio Range: 25 m
InterfacesTo Base : USB, Keyboard Wedge and RS232 Multi Interface
Supply Voltage4.75 - 14 VDC
Battery: Li-ion 1400mAh, Charge time with external Power supply 4 Hrs at 12V
Reads per charge: 30000+
Power ConsumptionN/A
Drop SpecificationDesigned to withstand repeated 1.5m drops to concrete
Environmental SealingIP42
ESD Protection+/- 16 kV air discharge
Operating Environment0 Degreees ~ 50 C, Relative Humidity up tp 90% none condensing
Storage Environment-40 Degrees ~ 70 C, Relative Humidity up tp 90% none condensing
EMC/Safety Standards
External Dimensions (WxDxH)Scanner: 41 x 91 x 163 mm
WeightScanner 190 g
Base 215 g
ModelDescriptionPriceStock
QM2131-BK-433K1 QM-2131 USB Kit - Includes scanner, Charge/Comms Cradle and USB Cable. Black $398.48
< 10
 Add to Cart
DLQM2131BKIT-R QM-2131 Serial (RS232) Kit - Includes scanner, Charge/Comms cradle, Serial Cable and Power supply. Black $409.86
Call
 Add to Cart
ModelDescriptionPrices From
Datalogic BC2030-BK-433 QuickScan Mobile QM2131 Base Black $328.90 View Product
Datalogic BC2030-WH-433 QuickScan Mobile QM2131 Base White $328.90 View Product
Datalogic USB, Type A straight Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified) $22.77 View Product
Datalogic CAB350 RS232 STR PWR P9 Fem Grey CAB350 RS232 STR PWR P9 Fem Grey $26.57 View Product
Datalogic Cab-350 Straight Power P9 and RPE RS232 Straight Cable, Powered and Pin 9. $24.54 View Product
Datalogic PS2 Wedge to USB Adapter PS2 Wedge to USB, ADP-203 $30.87 View Product
Datalogic Plug Pack for QM series Plug Pack 5V 3.0A for QM series $26.57 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DLQM2131 Brochure 97KB Download
PDF Document DL QuickScan Quick Reference Guide 1MB Download
PDF Document DL QuickScan Product Reference Guide 11MB Download
Product Videos
QuickScan Mobile (QM2100) - Initial Set-Up
