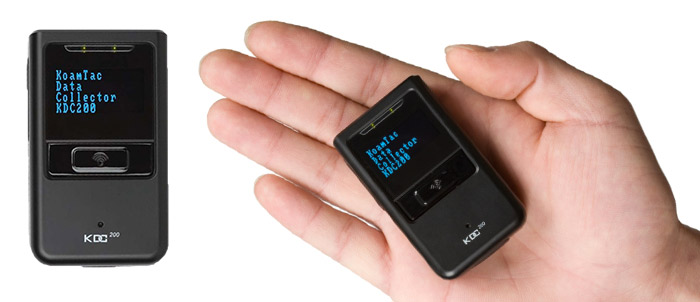

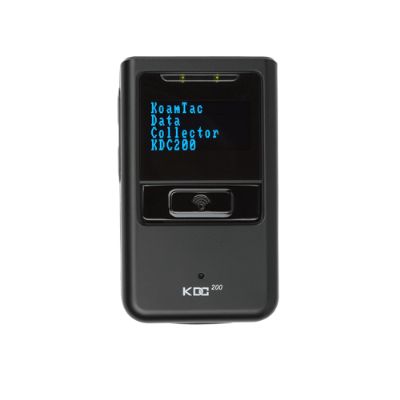

KOAMTAC KDC-200
POSMarket SKU: Z2102
This product has been replaced by the KOAMTAC KDC-270. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.
The KDC-200 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. Bluetooth communications, A built-in display eliminates blind erroneous data collections and enables interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port.
Product Overview
- Supports all major one dimensional barcodes
- Superior scanning performance with the top of the line laser scan engine
- Large data memory (Basic 160KB, Optional 4MB)
- Bluetooth V2.1+/-EDR, Class 2, HID/SPP/MFi
- Bright 1'' OLED display
- Optional full integration with IOS (MFI)
- Rechargeable Li-Poly battery with user-accessible compartment for easy replacement
- Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
Product Specifications
| Processor | ARM7 32-bit |
| Development Environment | SDK for PC, Pad and Smartphone application Application generation tool Database lookup feature Inventory management feature |
| Operating Platform | Proprietory |
| Real-Time Clock | Quartz RTC for timestamp |
| Memory | Standard Flash ROM: 160KB Optional 4MB RAM: 64 KB |
| Memory Expansion | N/A |
| Scan Engine | Laser scan Engine, 650nM visible Laser Diode Scan Rate: 100 scan/sec |
| Bar-code Type | Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5 |
| Keyboards | 3 keys total, 2 navigation keys, 1 scan key |
| Audio | Buzzer |
| Display | Bright 1'' OLED Display |
| Camera | N/A |
| I/O Ports | Build in Ultra Mini USB port |
| Radio Options | Bluetooth V2.1+/-EDR, Class 2, HID/SPP |
| Battery | Rechargeable battery: Lithium-Ion Polymer 3.7V 190mAh |
| Battery Life | N/A |
| Environmental Sealing | N/A |
| Mechanical Shock | Withstands drops from 1.2 m onto concrete with Rubber case |
| ESD Protection | N/A |
| External Dimensions (WxDxH) | 35 x 62 x15 mm |
| Weight | 34g with Battery |
| Operating Environment | 0 - 45 degree C RH 5-85% non condensing |
| Storage Environment | -20 - 45 degree C RH 5-85% non condensing |
| Product Compliance | C-Tick, CE, FCC, MIC, EMC, TELEC, SRRC, IEC 60825-1 Class 2, FDA CDRH Class II |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 325150 | KDC-200 Bluetooth Barcode Collector with Display and extra memory. iOS Compatible | $455.88 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| KOAMTAC Battery for KDC Range | Spare batteries for Koamtac's KDC range of barcode scanners. | $49.34 | View Product |

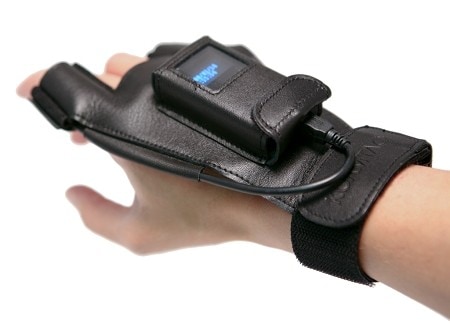

| KOAMTAC KDC270 Finger Trigger Glove | KDC270 Finger Trigger Glove Wearable Barcode Scanner Accessory for KDC270, KDC280 & KDC350 | $220.77 | View Product |
| KOAMTAC KDC Ultra mini USb | These cables, specifically created for the KDC3x0 | $23.76 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
kdc200 brochure | 236KB | Download |
