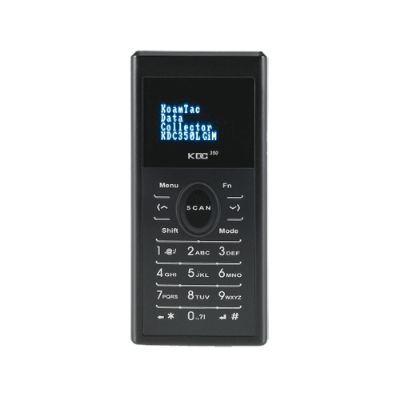

KOAMTAC KDC-350

from $515.63 (incl. GST)

POSMarket SKU: Z2144

This model is available in 7 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

1D and 2D Wireless Barcode Scanner with NFC Reading Capabilities and WiFi, 19-key options...

Product Rating
Product Overview
The Koamtac KDC350 wireless scanner provides Bluetooth connectivity to a smartphone, tablet, or PC and optional Wi-Fi connectivity to a server. It also optionally supports Near Field Communication (NFC). With an IP65-rating, OLED display, and a 19-key alphanumeric keypad, it is one of the unique and rugged products KOAMTAC has to offer.

KDC350 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. A built-in display and keypad eliminate blind erroneous data collection and enable interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port allows more than 25,000,000 barcode scans. With 4MB of on-board memory that stores over 100,000 product databases, memory shortages are also no longer a problem.

Features
  • 1D Laser (Normal & Long Range) and 2D Imager Models
  • Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
  • Bright 1" OLED display
  • Optional full integration with IOS (MFI)
  • 48 Channel GPS Receiver (Optional)
  • NFC (Optional)
  • 19 Key Keypad
  • Rechargeable Li-ion battery with user-accessible compartment for easy replacement
  • Large data memory (4MB)
  • Powerful Keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
Product Specifications
ProcessorARM7 32-bit
Development EnvironmentSDK for PC, Pad and Smartphone application
Application generation tool
Database lookup feature
Inventory management feature
Operating PlatformProprietory
Real-Time ClockQuartz RTC for timestamp
SensorsOptional NFC Sensor; MIFARE Ultralight, MIFARE Ultralight C tag
MemoryFlash ROM: 256KB Program, 4MB user Data
RAM: 64 KB
Memory ExpansionN/A
Scan EngineLaser scan Engine, choice of Opticon, Honeywell or Motorola
or Honeywell 2D Imager (choice of SR & SF)
Bar-code TypeBarcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5
Keyboards19 Alphanumeric keys including scan and Scroll buttons
AudioBuzzer
DisplayBright 1'' OLED Display
CameraN/A
I/O PortsBuild in Ultra Mini USB port
Radio OptionsBluetooth V2.1+EDR, Class 2, HID/SPP/MFi
Optional GPS; PT9250 48 channel
BatteryRechargeable battery: Lithium-Ion Polymer 3.7V 1200mAh
Battery LifeN/A
Environmental SealingIP65
Mechanical ShockWithstands drops from 1.5 m onto concrete
ESD ProtectionN/A
External Dimensions (WxDxH)43 x 94 x 24 mm
Weight85g with Battery
Operating Environment-10 ~ 50 C
RH 5-90% non condensing
Storage Environment-20 ~ 60 C
RH 5-90% non condensing
Product ComplianceC-Tick, CE, FCC, MIC, TELEC,
Laser Safety: IEC 60825-1 Class 2, FDA CDRH Class II
ModelDescriptionPriceStock
348350 KDC350 Bluetooth Data Collector, 2D Stand Range scanner, NFC Reader, 1" display, Numeric keypad, for iOS $977.08
10+
 Add to Cart
347150 KDC350 Bluetooth Data Collector, Opticon 1D Laser scanner, 1" Display, Numeric keypad, for iOS $529.38
< 10
 Add to Cart
347050 KDC350 Bluetooth Data Collector, Opticon 1D Laser scanner, 1" Display, Numeric keypad $515.63
< 10
 Add to Cart
347072 KDC350 Bluetooth Data Collector, Motorola 1D Laser scanner, 1" Display, Numeric keypad $679.25
< 10
 Add to Cart
347172 KDC350 Bluetooth Data Collector, Motorola 1D Laser scanner, 1" Display, Numeric keypad, for iOS $702.76
< 10
 Add to Cart
347250 KDC350 Bluetooth Data Collector, Opticon 1D Laser scanner, NFC Reader, 1" display, Numeric keypad $619.16
< 10
 Add to Cart
348152 KDC350 Bluetooth Data Collector, 2D Standard Range scanner, 1" display, Numeric keypad, for iOS $1,085.49
Call
 Add to Cart
ModelDescriptionPrices From
KOAMTAC Battery for KDC Range Spare batteries for Koamtac's KDC range of barcode scanners. $49.34 View Product
Honeywell OPINTEL Service Management Pilot OPINTEL Service Management Pilot Max 100 devices and 60 days. $1.27 View Product
Ergonomic Solutions Spacepole Holster w/ Magnetic Close Spacepole Holster with magnetic closure for portable devices. $90.75 View Product

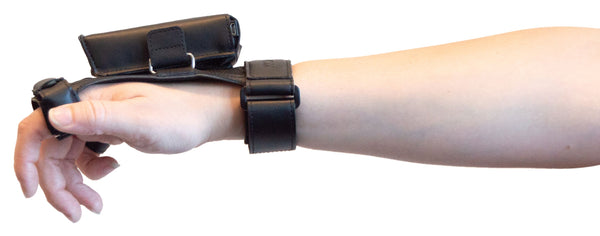

KOAMTAC KDC270 Finger Trigger Glove KDC270 Finger Trigger Glove Wearable Barcode Scanner Accessory for KDC270, KDC280 & KDC350 $220.77 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document KDC350 Brochure 217KB Download
PDF Document KDC350 Quick Giude 563KB Download
PDF Document KDC350 Mini Guide 345KB Download
PDF Document KDC350 How to Operate Wi-Fi 560KB Download
Product Videos
Wireless Barcode Scanner KDC350 Long Range Scan Test

KDC350-R2 Wireless Barcode Scanner
