POSMarket SKU: Z1896

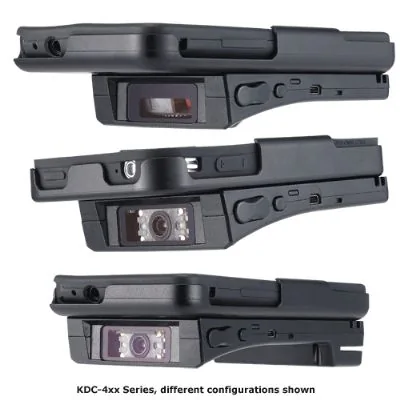

This model is available in 9 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

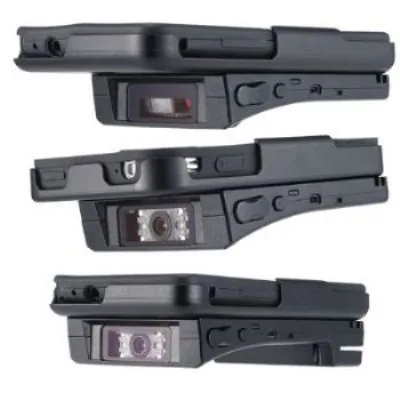

1D and 2D Bluetooth Barcode Scanner and SmartSled. Available with Laser Scanner or 2D Imager...
| Physical Characteristics | |
| Barcode Model | Size: 2.50&'' x 3.70&'' x 0.80'' (65 mm x 95 mm x 20 mm) Weight: 2.8 oz (80 g) |
| Barcode/MSR Model | Size: 2.50'' x 4.70'' x 0.80'' (65 mm x 121 mm x 20 mm) Weight: 4.06 oz (115 g) |
| Electrical Characteristics | |
| Battery: | Lithium-Ion (3.7V DC, 1200mAh) |
| Charging: | USB connector |
| Interfaces | Bluetooth 2.1+EDR, Class 2, HID/SPP/MFi USB to Serial (Ultra mini USB port) USB HID/Flash Memory |
| User Environment | |
| Drop Spec: | 5 feet (1.5m) |
| Operating: | 32 F to 113 F ( 0 C to 45 C) |
| Storage: | -4 F to 113 F (-20 C to 45 C) |
| Humidity: | 5% to 85% (non-condensing) |
| Regulatory Conformance | |
| Laser Safety: | IEC60825/CDRH Class II |
| LED Safety: | IEC62471:2006 |
| Electrical Safety: | UL 60950-1; EN/IEC 60950-1; EN/IEC 60825-1 |
| EMI/RFI: | R&TTE, FCC, KC, TELEC |
| Environmental: | RoHS Compliant |
| Scan Range (10mil Code39) | |
| Laser: | 1.97'' to 7.4'' (50 mm to 190 mm) |
| Imager: | 3.2'' to 9.2'' (15 mm to 438 mm) |
| Symbologies | |
| Laser (1D): | EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93, Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded |
| Imager (1D): | Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1 |
| Imager (2D): | Aztec Code, Aztec Runes, Codablock F, Code 16K, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code |
| Postal Codes: | POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post |
| OCR Options: | OCR-A, OCR-B, OCR US Currency, OCR MICR E13B, OCR Semi Font |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 357422 | KDC-425 Sled Scanner with 2D Scan Engine and MSR | $776.88 | Add to Cart | |
| 356500 | KDC-450 Sled Scanner with SR Imager scammer and RFID, for iOS | $941.88 | Add to Cart | |
| 357782 | KDC-430i Sled Scanner with MSR, for iOS | $314.81 | Add to Cart | |
| 357582 | KDC-425 Sled Scanner with 2D Scan Engine and MSR, for iOS | $818.13 | Add to Cart | |
| 357060 | KDC-410 Sled Scanner with Opticon Laser Scan Engine, for iOS | $453.13 | Add to Cart | |
| 357020 | KDC-410 Sled Scanner with Opticon Laser Scan Engine | $405.63 | Add to Cart | |
| 357182 | KDC-415 Sled Scanner with Laser Scan engine & MSR, for iOS | $527.73 | Add to Cart | |
| 357260 | KDC-420 Sled Scanner with Standard Range 2D Scan Engine | $CALL | ||
| 357340 | KDC-420 Sled Scanner with Standard Range 2D Scan Engine, for iOS | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| KOAMTAC KDC400 Battery | KOAMTAC 11300mAh Li-ion Battery for KDC4xx 350 | $45.71 | View Product |
| KOAMTAC Bluetooth Dongle Spec.4.0 Class 1 | KOAMTAC Bluetooth Dongle Spec.4.0 Class 1 for KDC | $45.05 | View Product |
| KOAMTAC SmartSled module KDC470 | iPhone 7/iPhone 8/iPhone SE OtterBox Defender SmartSled Case for KDC SmartSled | $154.77 | View Product |
| KOAMTAC KDC Lanyard | KDC Professional Safety Lanyard | $47.36 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
KDC415KDC425 Mini Guide | 2MB | Download |
|
KDC400 Series Manual | 7MB | Download |
|
KDC400 Series Brochure | 218KB | Download |
