POSMarket SKU: Z20465

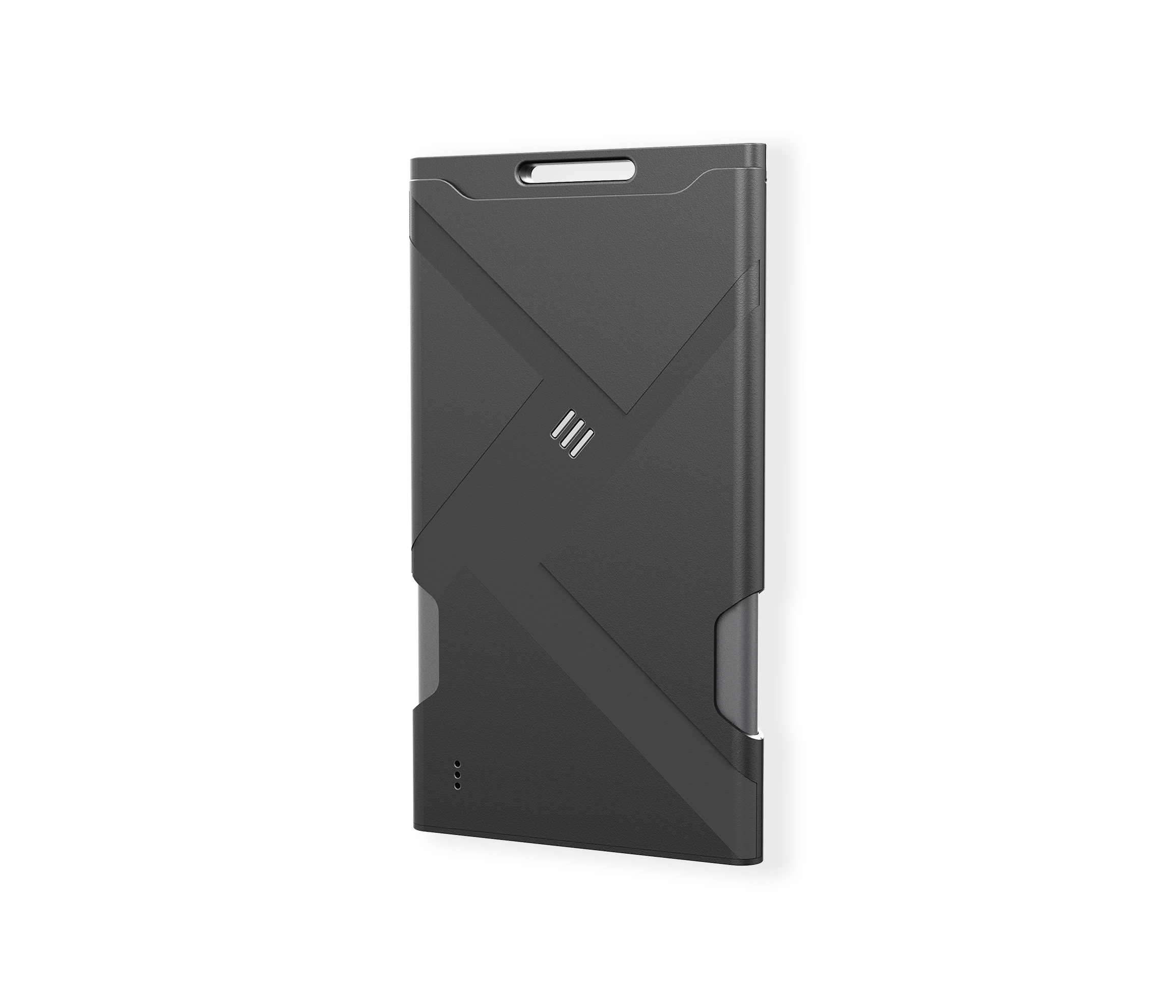

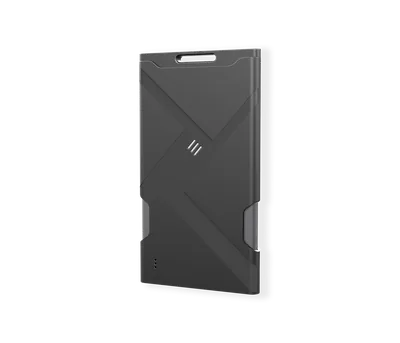

The BS30 is remarkably compact, lightweight, and designed for comfortable use, whether worn around the neck or held by hand, making it easy to minimize fatigue.
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | White LED |
| Aiming | Laser (650nm) |
| Symbologies |
1D: Code 11, Code 128, Code39, GS1-128, AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISBN, ISSN, InterLeaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, COOP 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS) 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode, GM Code. |
| Resolution | =3mil |
| Typical Depth of Field |
EAN-13: 65mm-550mm (13mil) Code 39: 120mm-330mm (5mil) PDF 417: 120mm-240mm (6.7mil) Data Matrix: 125mm-240mm (10mil) QR Code: 40mm-370mm (15mil) |
| Scan Angle | Pitch: ±55° Skew: ±55° Tilt: 360° |
| Field of View | Horizontal 40°, Vertical 25° |
| Min. Symbol Contrast | =25 |
| Wireless |
Communication Modes: Bluetooth BLE, Bluetooth HID Modes Radio Technology: Bluetooth 5.0 Communication Distance: 30m/98ft (in open space) |
| Battery | 300 mAh lithium-ion battery |
| Expected Charge Time | <2 hours (with power adapter) |
| Expected Battery Life | =2.2 hours of continuous operation (scan once per 1 second) |
| Physical | |
| Dimensions (L×W×H) | 110.8×62.3×10.6mm |
| Weight | 53g |
| Interfaces | USB |
| Notification | Beep, LED indicator, Vibration |
| Operating Voltage | 5VDC±5% |
| Environmental | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Battery Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% ~ 95% (non-condensing) |
| ESD | ±10 KV (air discharge); ±6 KV (contact discharge) |
| Drop | 1.2m/3.94ft |
| Sealing | IP65 |
| Certifications | Certificates: CE RED, FCC ID, RoHS, SRRC, IEC 62471 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NLS369-10260 | WIRELESS BADGE SCANNER/2D IMAGER/LASER AIMING/BT5.0/USB TYPE-C CABLE/LANYARD/TELESCOPIC BUCKLE/CASE | $269.50 | Add to Cart |
