POSMarket SKU: Z20453
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

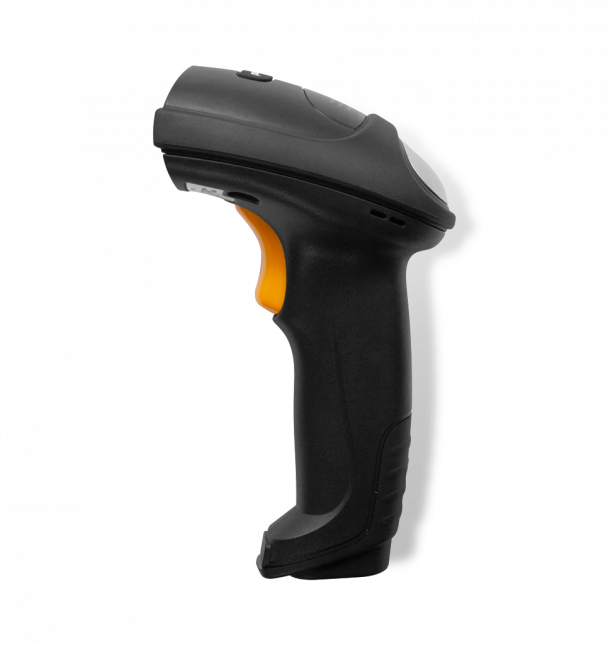

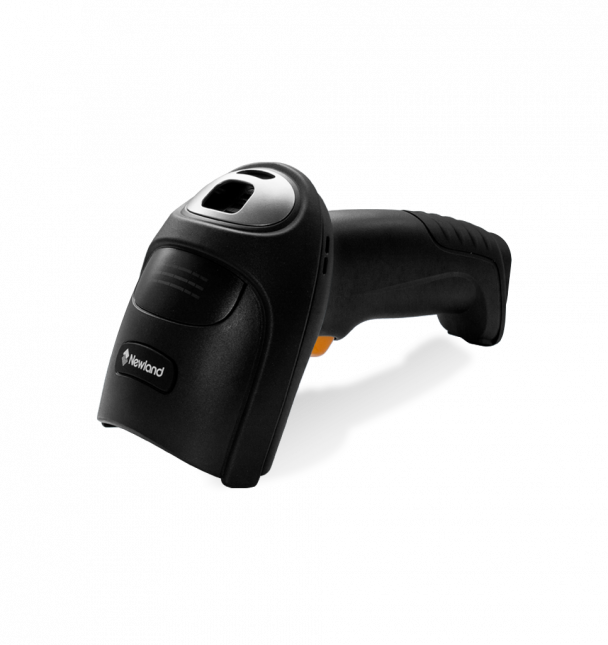

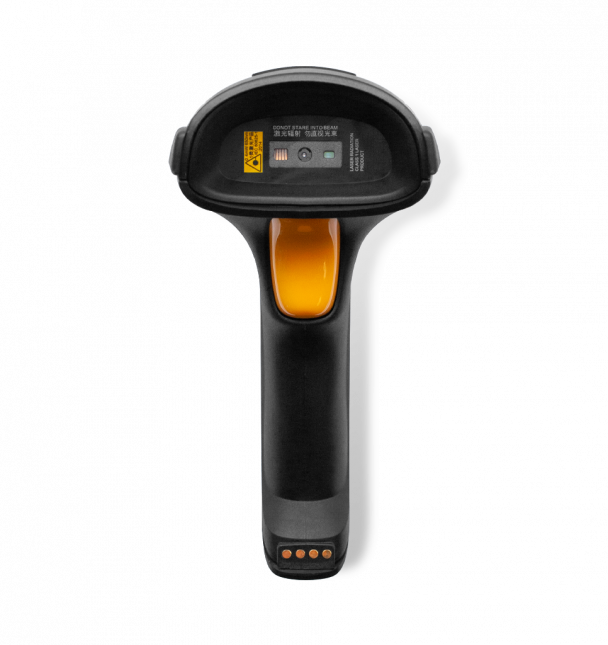

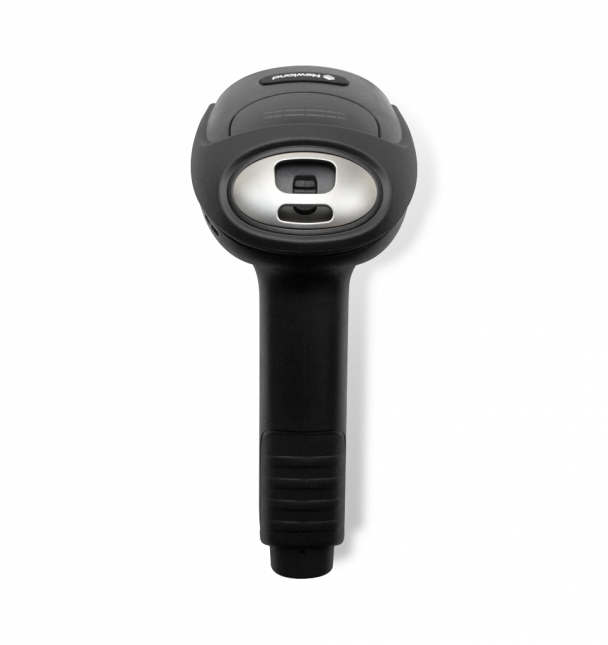

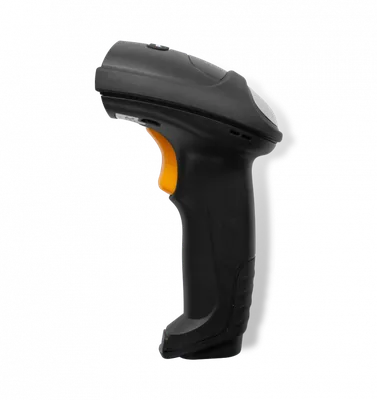

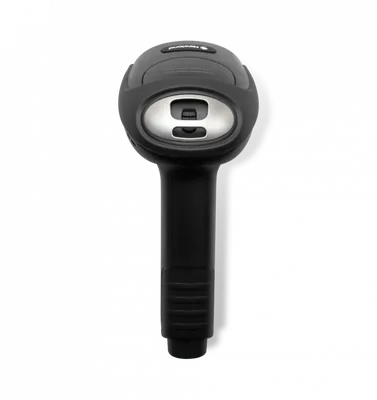

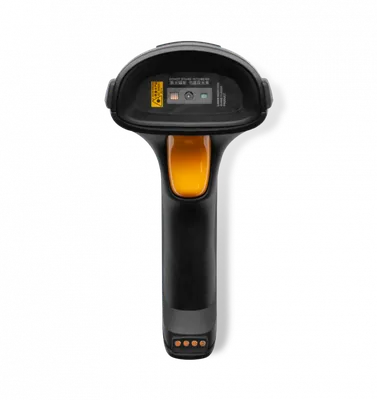

Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Bluetooth includes a megapixel barcode scanner that reads both 1D and 2D codes with ease.
| 1D | All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 25, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. |
| 2D | All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode. |
| Image Sensor | 1280x800 CMOS |
| Illumination | White LED |
| Aiming | 650nm laser diode |
| Scan Modes | Automatic Batch, Manual Batch |
| Depth of Field EAN 13 (13mil) | 50mm-555mm/RT:35mm-280mm |
| Depth of Field Code 39 (5mil) | 110mm-240mm/RT:70mm-210mm |
| Depth of Field PDF417 (6.7mil) | 90mm-210mm/RT:50mm-160mm |
| Depth of Field DataMatrix (10mil) | 90mm-190mm/RT:40mm-170mm |
| Depth of Field QR (15mil) | 40mm-360mm/RT:20mm-230mm |
| Memory Flash | =15,000 code entries (Code 128, 20 bytes) |
| Minimal Print Contrast | 20% |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±55° |
| Scan Angle Skew | ±55° |
| Field of View Horizontal | 48° |
| Field of View Vertical | 28° |
| Motion Tolerance | 50cm/s |
| Dimensions (mm) | Scanner: 95.5(L)x77.5(W)x172.5(H)mm |
| Weight | 227g |
| Interfaces | RS-232, USB |
| Battery Type | 2400mAh lithium-ion battery |
| Expected Battery Life | =12 hours of continuous operation (scan once per 6 seconds) |
| Expected Charge Time | =4 hours (with power adapter) |
| Notifications | Beep, LED indicator, vibration |
| Input Voltage | 5VDC±5% |
| Operating Temperature | -20? to 50? (-4°F to 122°F) |
| Storage Temperature | -40? to 70? (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Electro Static Discharge (ESD) | ±15 kV (air discharge), ±8 kV (direct discharge) |
| Drop | Scanner: 1.8m. Cradle: 1.0m |
| IP Rating | IP54 |
| Configuration Tools | EasySet |
| Hardware | FCC Part15 Class B, CE EMC Class B |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NLS369-10160 | BLUETOOTH SCANNER 2D MEGAPIXEL IMAGER (STANDARD RANGE) IP54 INCL CABLE (USB) POWER ADAPTER | $462.00 | Add to Cart | |
| NLS369-10170 | BLUETOOTH SCANNER 2D MEGAPIXEL IMAGER (STANDARD RANGE) IP54 INCL CABLE (RS232) POWER ADAPTER | $462.00 | Add to Cart |
