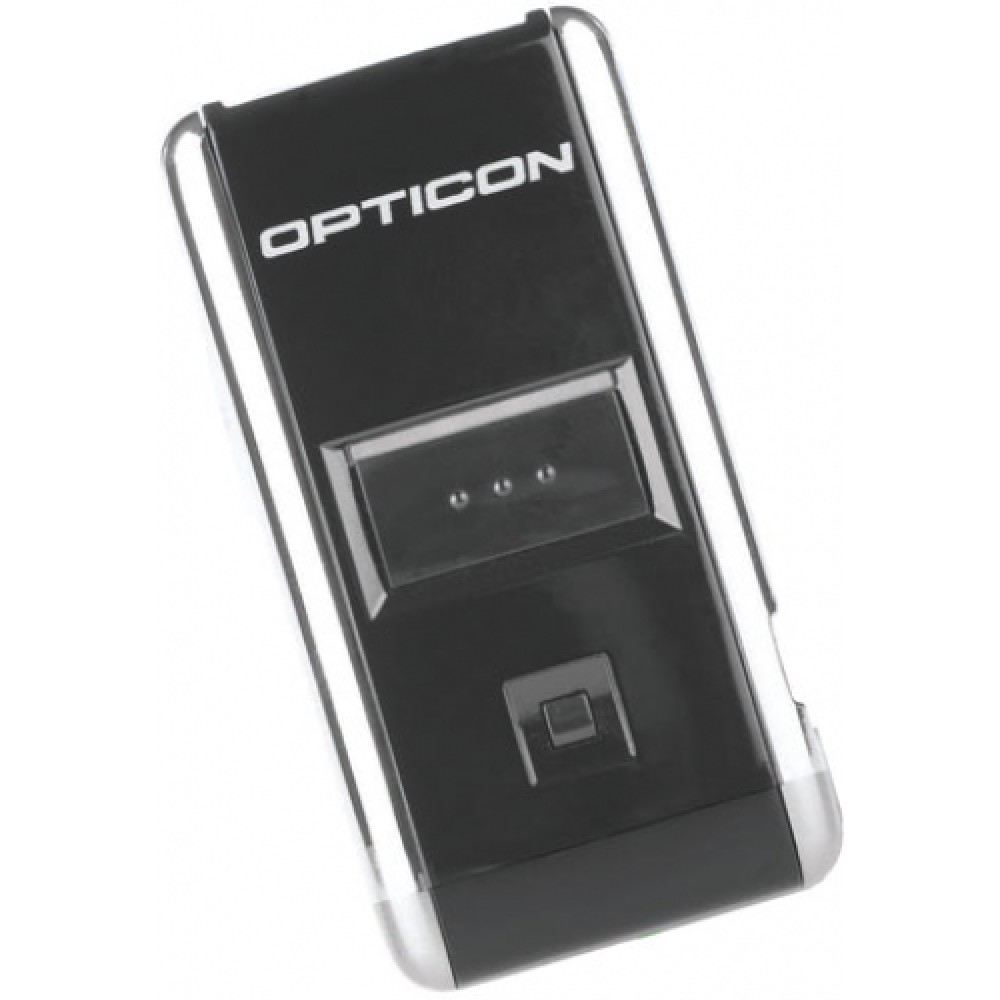

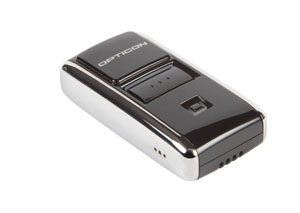

Opticon OPN-2002
POSMarket SKU: Z2316
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
This small and lightweight device is equipped with a memory that can store more than 25.000 barcodes. The housing is rugged and durable. With a weight less than 30 grams, it can be put in every pocket and taken everywhere. Using the OPN2002 is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes. The OPN2002 is equipped with two profiles for data transmission to a Bluetooth hosting device. The SPP profile allows the user to use a data loading tool and configure some Bluetooth transmission settings. For direct transmission without using any tools the HID profile will fit the immediate wireless transfer needs. In occasions where Bluetooth is not provided, access by the USB port enables (cabled) data transfer to any USB device.
Product Overview
- Handheld Laser Data Collector
- Bluetooth
- Small form factor
- 100 scans/second
- Memory that can store up to 25000 Scans with time stamp
- Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
- USB Communications and charging
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Type | Barcode scanner - portable | |
| Manufacturer | Opticon | |
| POWER DEVICE | ||
| Type | none | |
| INPUT DEVICE | ||
| Connectivity Technology | wired, wireless | |
| TTL Decoding | decoded | |
| Keys Qty | 2 | |
| OK Notification | LED indicator, beeper | |
| CAMERA | ||
| Flash Memory | 1 MB | |
| PRINTER | ||
| Barcodes | China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN/JAN, GS1 DataBar, IATA, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, Korea Post, MSI-Plessey, Matrix 2 of 5, MicroPDF417, NW-7, PDF417, Telepen, Trioptic Code, UCC/EAN-128, UK-Plessey, UPC | |
| BARCODE | ||
| Interface Type | USB / Bluetooth | |
| Scan Field Width | 1.57 in - 22.44 in | |
| Interface | Bluetooth, USB | |
| Light Source Wave Length | 650 nm | |
| Barcodes | China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN/JAN, GS1 DataBar, IATA, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, Korea Post, MSI-Plessey, Matrix 2 of 5, MicroPDF417, NW-7, PDF417, Telepen, Trioptic Code, UCC/EAN-128, UK-Plessey, UPC | |
| Print Contrast Signal (PCS) | 45% | |
| Skew (Degrees) | 42 | |
| Pitch (Degrees) | 35 | |
| Minimum Bar Width | 5 mil | |
| Min Scan Field | 1.57 in | |
| Max Scan Field | 22.44 in | |
| Features | Reduced Space Symbology (RSS) | |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, NW-7, IATA, ISBN, GS1 DataBar, Telepen, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, China Post, Korea Post, Trioptic Code, ISSN, UK-Plessey | |
| Scan Mode | Single-pass | |
| OK Notification | Beeper, LED indicator | |
| Scan Speed | 100 scan / sec | |
| Connectivity Technology | Wireless, wired | |
| Scan Element Type | Visible laser diode | |
| TTL Decoding | Decoded | |
| KEYBOARD | ||
| Keys Qty | 2 | |
| NETWORKING | ||
| Wireless Connectivity | Bluetooth | |
| MISCELLANEOUS | ||
| Color | black | |
| Color Category | black | |
| MEMORY | ||
| Flash | 1 MB | |
| RAM | ||
| Installed Size | 1 MB | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 20 - 85% (non-condensing) | |
| Min Operating Temperature | 32 F | |
| Max Operating Temperature | 122 F | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | portable | |
| Scan Mode | single-pass | |
| Scan Element Type | visible laser diode | |
| Scan Speed | 100 scan/sec | |
| HEADER | ||
| Brand | Opticon | |
| Product Line | Opticon OPN | |
| Model | 2002 | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS AND WEIGHT | ||
| Width | 1.3 in | |
| Depth | 0.6 in | |
| Height | 2.4 in | |
| Weight | 1.02 oz | |
| INTERFACE REQUIRED | ||
| Type | USB | |
| Total Qty | 1 | |
| CABLE DETAILS | ||
| Type | USB cable | |
| Form Factor | external | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 1.02 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| GENERAL | ||
| Manufacturer | Opticon | |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
| Model | Description | Prices From | |
|---|---|---|---|
| Opticon Protection Booth | Rubber Protection Booth for OPN200x | $25.58 | View Product |
| Goodson USB Type A Power Supply 1A | Designed for exact compatibility with OPTICON products, OPTICON accessories ensure maximum performance, longevity and ultimate cost-effectiveness. | $31.68 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Opticon OPN2002 brochure | 210KB | Download |
