POSMarket SKU: Z2096
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

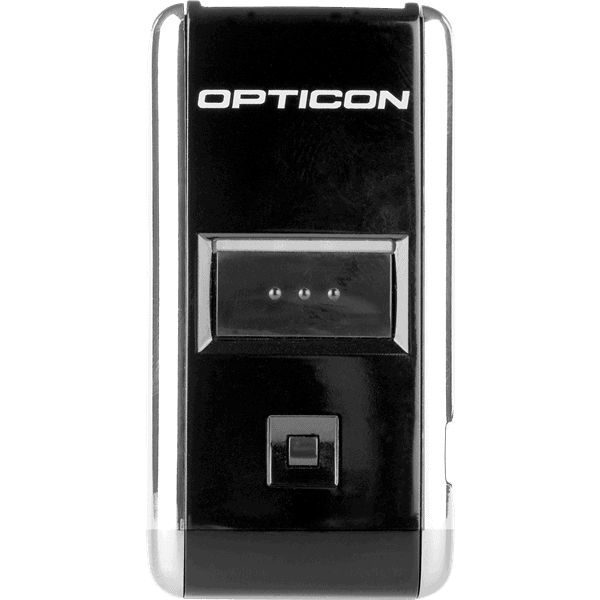

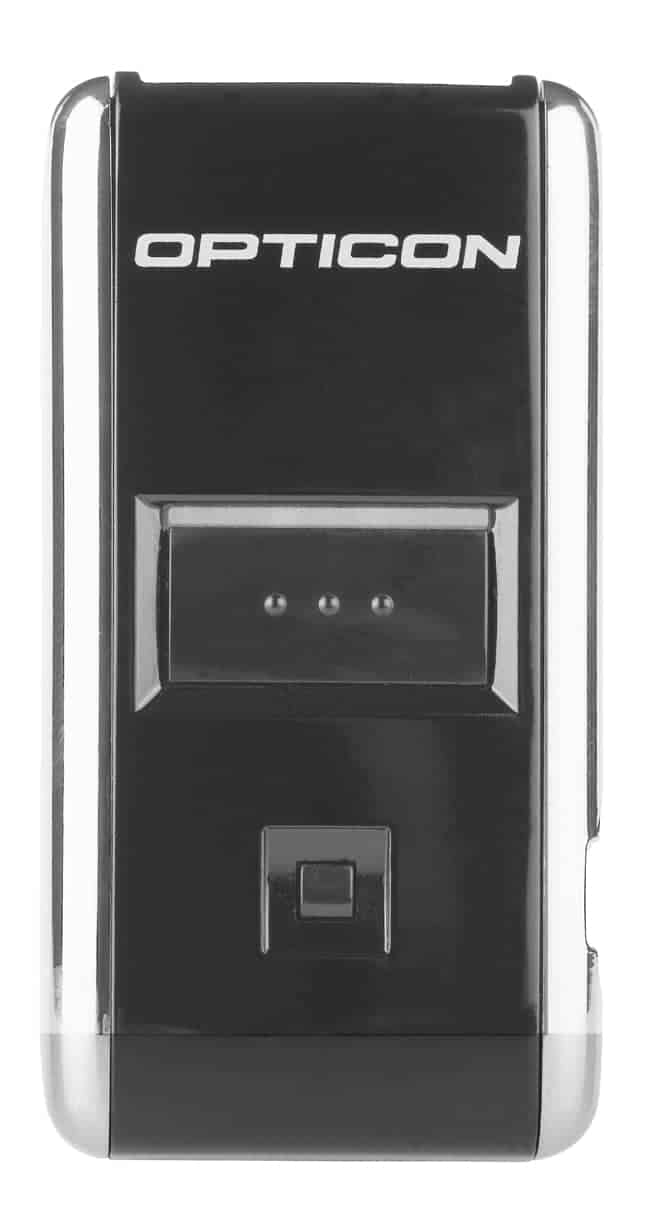

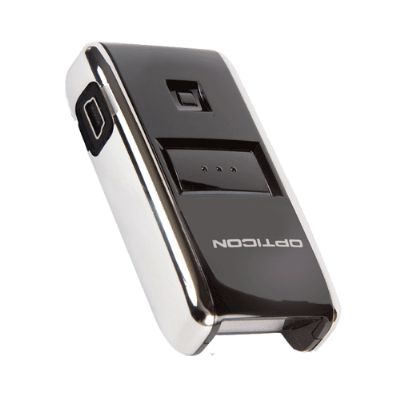

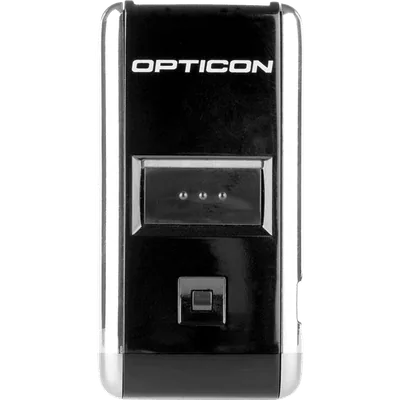

The OPN-2006, part of the OPN-2000 series, is a Bluetooth companion scanner. Remarkable features of this device are its outstanding specifications which include the use of Bluetooth 3.0, a high-performance 1D scan engine and low power consumption during operation.
Processor | ARM7 32-bit |
Development Environment | 4 applications available (also programmable in C-language. Free software development kit with free RX compiler) |
Operating Platform | Proprietory |
Real-Time Clock | Quartz RTC for timestamp |
Memory | Flash ROM: 512KB RAM: 96 KB External (user) FlashROM: 1 MB |
Memory Expansion | N/A |
Scan Engine | Laser scan Engine, 650nM visible Laser Diode Scan Rate: 100 scan/sec |
Bar-code Type | 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, S-Code Postal Codes: Chinese Post, Korean Postal Authority Code 2D: GS1 stacked |
Keyboards | 2 keys total: 1 function key, 1 scan key |
Audio | Buzzer |
Display | N/A |
Camera | N/A |
I/O Ports | Build in Mini USB port ver.1.1 USB-VCP (Special order USB-HID or USB-MSD) |
Radio Options | Bluetooth V3.0 HID/SPP, 1 to 1 connection, master & Slave mode, authentication & encryption |
Battery | Rechargeable battery: Lithium-Ion Polymer 3.7V 240mAh Charging through USB Cable |
Battery Life | Batch: 4500 Scans (1 Scan/5 sec) Bluetooth: 3500 Scans (1 Scan/5 sec) |
Environmental Sealing | IP42 |
Mechanical Shock | Withstands drops from 1.5 m onto concrete with Rubber case |
ESD Protection | N/A |
External Dimensions (WxDxH) | 32 x 62 x16 mm |
Weight | 29g with Battery |
Operating Environment | 0 ~ 40°C RH 20 ~ 85% non condensing |
Storage Environment | -20 ~ 60°C RH 20 ~ 85% non condensing |
Product Compliance | C-Tick, CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1 Class 2, FDA CDRH Class II |
Model | Description | Price | Stock | |
---|---|---|---|---|
OPN2006BTKIT-U | OPN-2006 Scanner, Lanyard, USB charging cable & Rubber Boot | $329.18 | Add to Cart | |
13336 | OPN-2006 Scanner, Lanyard & USB charging cable | $312.19 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Opticon Protection Booth | Rubber Protection Booth for OPN200x | $25.58 | View Product |
Opticon 12031 | 10 Slot ChargeComms Cradle for OPN2002 OPN2006 | $641.85 | View Product |
Goodson USB Type A Power Supply 1A | Designed for exact compatibility with OPTICON products, OPTICON accessories ensure maximum performance, longevity and ultimate cost-effectiveness. | $31.68 | View Product |
Filename | Size | ||
---|---|---|---|
Opticon OPN-2006 Brochure | 75KB | Download | |
Opticon OPN-2006 Quick Start Guide | 937KB | Download |
