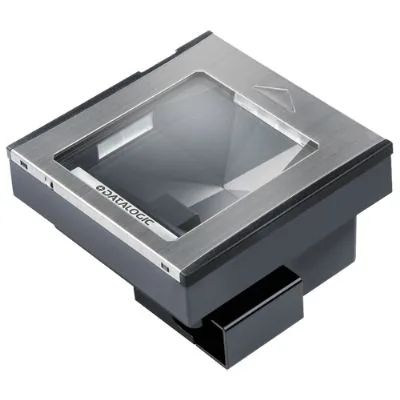

Datalogic Magellan 3300HSi

from $809.60 (incl. GST)

POSMarket SKU: Z1872

This model is available in 5 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

In-Counter High Performance Omni-directional barcode reader.

Product Rating
Product Overview
The Magellan 3300HSi bar code reader brings Datalogic's new imaging technology to the high-volume point-of-sale. Along with the 3200VSi vertical reader, they are the first bar code scanners to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 Data Bar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3300HSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

The Datalogic Magellan 3300HSi imager achieves new levels of product reliability by utilizing a solid-state design that does not require the use of laser modules or spinning motors, ensuring years of worry-free operation. Unique features include high performance imaging technology which enables the ability to read both linear and 2D barcodes as well as perform image capture duties. The Magellan 3300HSi also features multiple interfaces in every unit and an RS-232 auxiliary port for attaching a handheld scanner. A Micro-SD card reader helps with software management, upgrading, and maintenance. Because most of the Magellan 3300HSi scanner features are software based, new capabilities are simple to add, even after the initial installation, increasing the useful life of the scanner and protecting your company's technology investment over time.

Features
  • Datalogic's high performance Imaging Technology
  • Linear and/or 2D bar code reading
  • Solid-state electronics
  • Software driven flexible and upgradeable
  • Micro SD card slot
  • Multiple interfaces in every unit
  • RS-232 auxiliary port
  • Image capture
  • Illumix intelligent illumination technology reads bar codes from mobile phones or PDAs
  • Supports GS1 Data Barcodes
Product Specifications
Scan EngineArea Imager
Light SourceMultiple diffused 625 nm LEDs
Scan Pattern1280 x 1024
Scan RateMax. 39 million pixels per second
Image CaptureGraphic Formats: BMP, JPG, Greyscale 256, 16, 2
Capture Area1280 x 1024
Contrast RatioMin. 25%
Resolution5 mil
Depth of fieldRead Height 10.2 cm
Tilt Angle0 - 360°
Pitch Angle+/- 66 Degrees
Ambient Light Immunity0 - 86100 lux
Symbologies supported1D: Auto discriminates all standard 1D codes including GS1 Databar linear codes
2D(optional): Aztec Codes; DataMatrix (ECC200 only); Maxicode; QR Code; GS1 Databar Stacked Codes; GS1 Databar Omni Directional Stacked Codes; MicroPDF417; PDF417
Programming MethodMagellan On-Screen Programming (OSP) configuration software is
available for download at no charge.
Driver availableJavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Indicators/ControlsGreen LED for good read
Buzzer
InterfacesIBM 46XX, RS232, IBM USB, USB Keyboard, USB COM, Keyboard Wedge
I/O PortsPowered RS232 Aux. Port
EAS: Checkpoint Systems: Integrated Hardware will work with Counterpoint IV, V, VI & VII models
Sensormatic: Good read acknowledgement
Micro-SD card reader to help with software maintenance and upgrades
Supply VoltageAC Input: 90-264 VAC, 47-63 Hz
Output; 10V 800mA
Power ConsumptionMax 9.9 Watts, nominal 3.0 Watts, Sleep mode 2.0 Watts
ESD Protection25 kV
Operating Environment0 ~ 40 C
RH: 5-95% Non Condensing
Storage Environment-40 ~ 70 C
RH: 5-95% Non Condensing
EMC/Safety StandardsC-Tick; EN60825-1 Class 1 LED; IEC 60825-1 Class 1 LED Product
External Dimensions (WxDxH)15.2 x 15.2 x 8.7 cm
Weight0.79 Kg
ModelDescriptionPriceStock
M3301-010210-00230 3300HSi 2D scanner, Sapphire Glass, Serial interface (order power supply separately) $913.33
Call
Add to Cart
M3301-010110-0E604 3300HSi 1D scanner, Sapphire Glass, USB interface (order power supply separately) $809.60
Call
Add to Cart
M3302-010110-0E604 3300HSi 1D Scanner, DLC Glass, USB Interface (order power supply separately) $CALL
Call
M3301-010210-00403 3300HSi 2D scanner, Sapphire Glass, IBM/USB interface (order power supply separately) $CALL
Call
SCDA3300HSI2DSUKIT 3300HSi 2D scanner, Sapphire Glass, USB interface (order power supply separately) $CALL
Call
ModelDescriptionPrices From
Datalogic 8-0936 Plug Pack Presentation Scanner Plug Pack 10V 800mA Centre Negative 2. $37.82 View Product
Datalogic 8-0730-54 RS232 for Magellan RS232 Cable for Magellan 3200/ 3300 $27.96 View Product
Datalogic 8-0938-02 Powered USB Cable 12V for Magellan 3200/3300 $35.42 View Product
Datalogic PSU 12V/18W Right Angle Magellan 3550 PSU 12V/18W Right Angle Magellan 3550 $31.63 View Product
Datalogic Universal Power Supply 12V/18W PSU Universal Power Supply 12V/18W PSU $32.89 View Product
Datalogic Cab USB E/P 4.5m Cable, USB Type A, Straight, External Power, 4.5m/15 ft $27.96 View Product
Datalogic Counter Mounts STD 2300HS 3300HSI 3550HSI Counter Mount STD 2300HS/3300HSI/3550HSI $69.58 View Product
Goodson USB Type A Power Supply 1A Designed for exact compatibility with OPTICON products, OPTICON accessories ensure maximum performance, longevity and ultimate cost-effectiveness. $31.68 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Magellan 3300HSi Product Reference Guide 3MB Download
PDF Document Magellan 3300HSi Brochure 238KB Download
