Datalogic Magellan 1500i
POSMarket SKU: Z8721
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

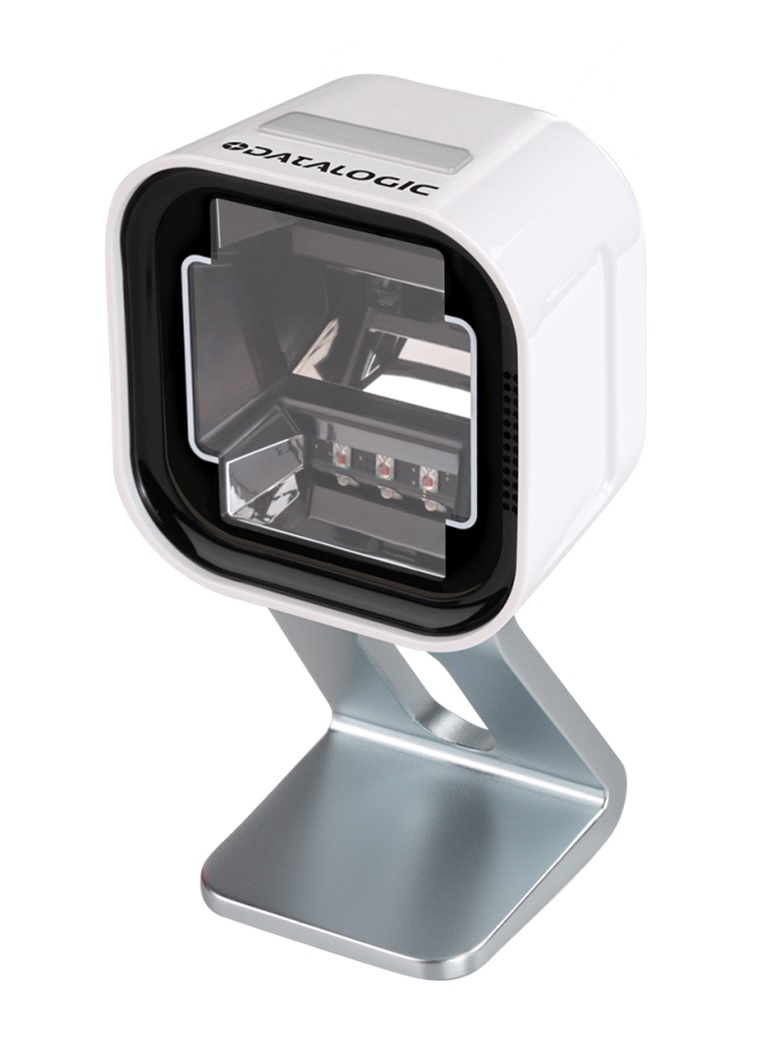

High performance presentation scanning in a tiny package. Datalogic's new Magellan 1500I is perfect for space constrained environments including Retail Point of Sale, Pharmacy, Customer Service, Self Checkout and Kiosks. This scanner will not look out of place in high fashion stores, and whilst it takes up minimal space it packs a lot of features. With Datalogic's digital imaging technology, it will read all 1D and 2D barcodes on everything from mobile phone screens to loyalty cards and tickets.
Product Overview

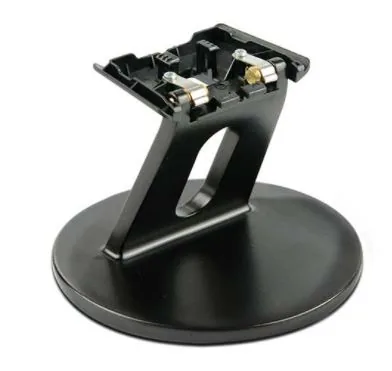

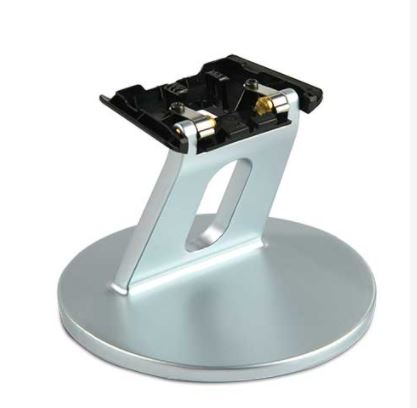

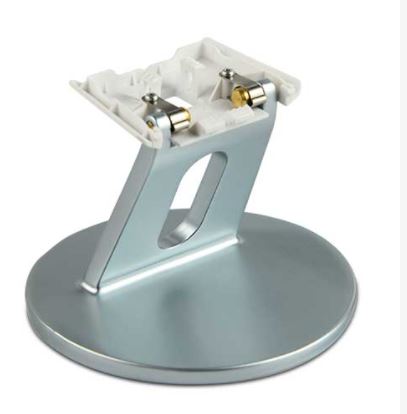

Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting
bracket.
FEATURES
- Advanced digital imaging provides class-leading performance and reliability
- Seamlessly reads 1D and 2D bar codes, whether printed or displayed on mobile phone, laptop or tablets
- Optional Digimarc Barcode decoding
- Subtle, adaptive illumination for user comfort
- Compact, ergonomic design is ideal for hands-free or hand held operations
- LED aimer for precision scanning of Price Look Up (PLU) lists or small items
- Datalogic's 'Green Spot' technology for good-read feedback
- Image capture
- Adjustable stand
- Available interfaces: RS-232 or USB, OEM
- Checkpoint Systems EAS and Interlock Compatible
- Easily monitored and updated via Remote Management, Scanalyzer, Aladdin or programming guides
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.
Product Specifications
| READING PERFORMANCE | |
| Aiming | LED aimer for precision scanning |
| Image Capture | 1 MP; 1280 x 800 pixels Graphic Formats: JPEG, BMP |
| Print Contrast Ratio (Minimum) | 25% |
| Reading Angle | Pitch: +/- 65 degrees Roll (Tilt): 0 - 360 degrees Skew (Yaw): +/- 75 degrees |
| Reading Indicators | Beeper (Adjustable Tone and Volume) Datalogic 'Green Spot' Good Read Feedback Good Read LED |
| Resolution (Maximum) | 0.130 mm / 5 mils |
| DECODING CAPABILITY | |
| 1D / Linear Codes | Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| 2D Codes | Aztec Code, Data Matrix, MaxiCode, QR Code |
| Postal Codes | Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post |
| Stacked Codes | GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417 |
| Digital Watermarks | Optional support for Digimarc Barcodes/GS1 DW Code |
| ENVIRONMENTAL | |
| Ambient Light | 0 to 86,100 lux |
| Drop Resistance | Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface |
| ESD Protection (air discharge) | 25 kV |
| Humidity (Non-Condensing) | 5 - 95% |
| Particulate and Water Sealing | IP52 |
| Interfaces | USB Keyboard; USB COM; OEM (IBM) USB; RS-232 |
| PHYSICAL CHARACTERISTCS | |

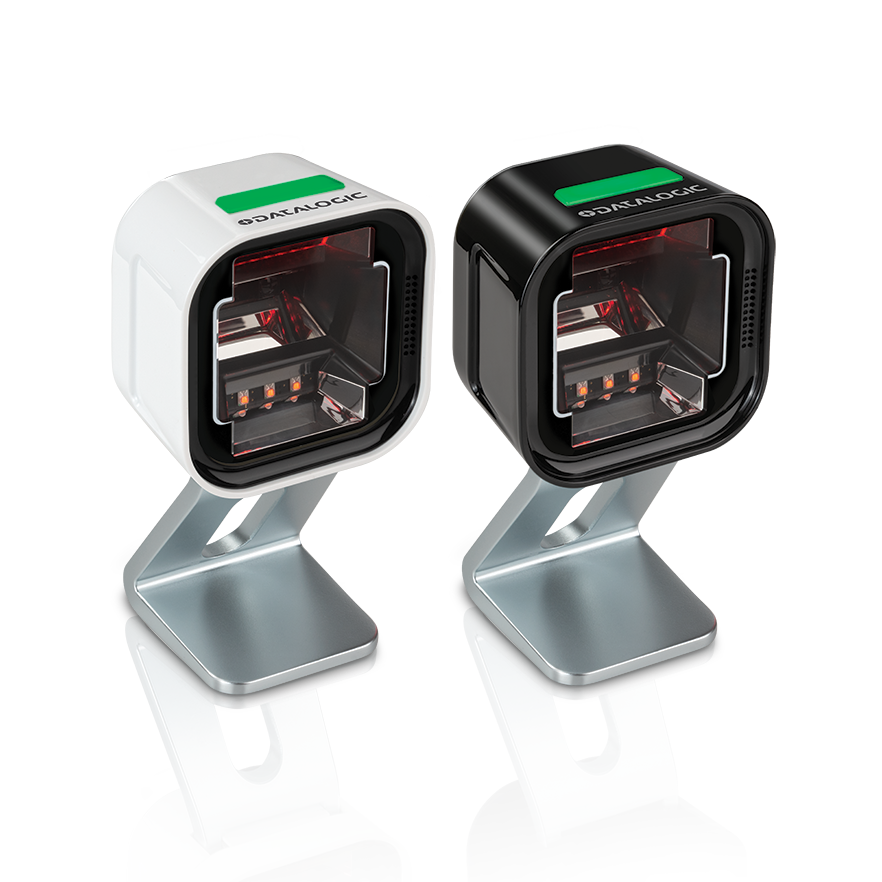

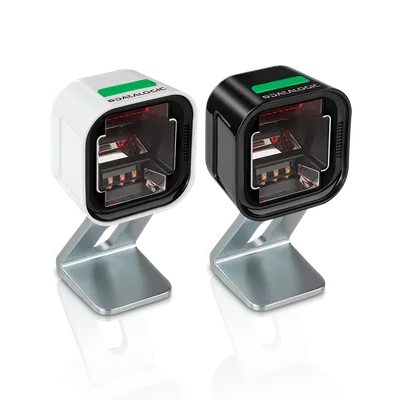

| Colors Available | Black, White |
| Dimensions | Tilting Riser: 6.0 x 7.5 x 15.0 cm Stand: 6.0 x 7.5 x 10.6 cm |
| Weight | Tilting Riser: 240g |
| OTHER | |
| Warranty | 3-Year Factory Warranty |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

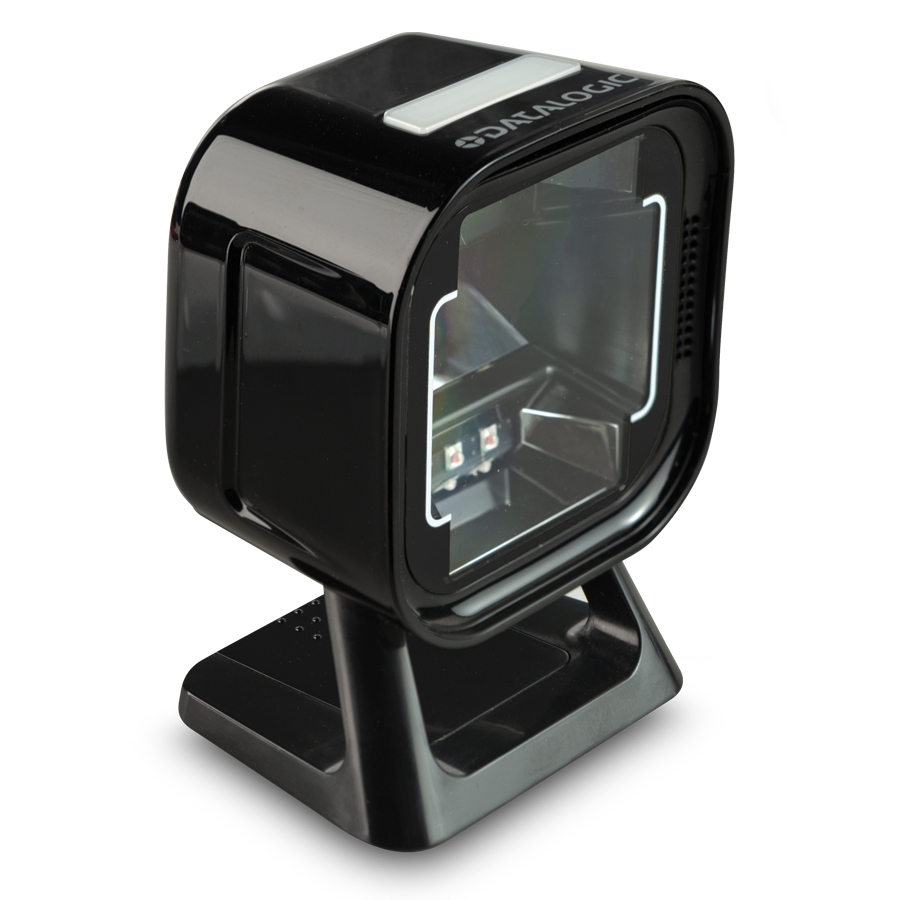

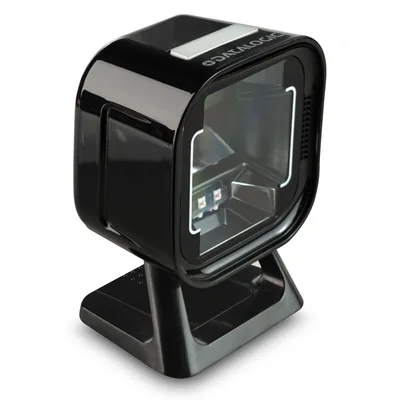

| MG1501-10231-0200 | Magellan 1500I 2D Scanner, USB Interface, Riser Stand with Magnetic Base, Black | $264.39 | Add to Cart | |

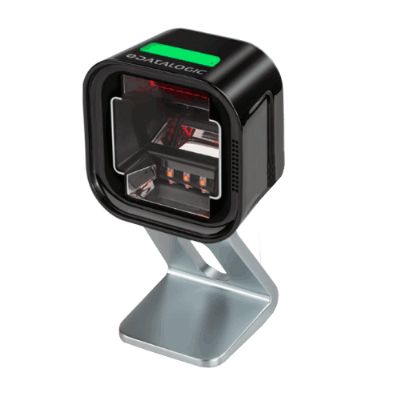

| MG1501-10211-0200 | Magellan 1500I 2D Scanner, USB Interface, Tilting Stand with Magnetic Base, Black | $531.30 | Add to Cart | |
| MG1501-10210-0200 | Magellan 1500I 2D Scanner, USB Interface, Tilting Stand, Black | $524.98 | Add to Cart | |
| MG1502-10220-0200 | Magellan 1500I 2D Scanner, USB Interface, Tilting Stand, White | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Datalogic 8-0736-80 RS232 Magellan 1100i/ 1400i, VS800 | RS232 DB9 External Power for Magellan 1100i1400i and VS800 | $22.64 | View Product |
| Datalogic 5.2V Power Supply | 5.2V 650 mA Power Supply for Gryphon Magellan and Quickscan scanners | $52.75 | View Product |
| Datalogic Ease Of Care 1500i 5 Day 3Yr | Ease Of Care 1500i 5 Day 3Yr | $32.89 | View Product |
| Datalogic Ease of Care comp 1500I 2 days 3yr | Magellan 1500i Ease of Care, 2 days Comprehensive, 3 yrs | $44.28 | View Product |
| Datalogic Magellan 1500I Magnetic Mount | Magellan 1500I Magnetic Mount | $16.45 | View Product |
| Datalogic MAGELLAN 1500I WALL MOUNT KIT BLK | MAGELLAN 1500I WALL MOUNT KIT BLK | $10.12 | View Product |
| Datalogic 90ACC0287 | PSU 5V | $37.95 | View Product |
| Datalogic RS232 Cable, for 800i/1500i | RS232 Cable for the Datalogic 800i/1500i. | $22.77 | View Product |
| Datalogic Cable RS232 AUX RJ10P STRT 2M 800I/1500I | Cable RS232 AUX RJ10P STRT 2M 800I/1500I | $17.71 | View Product |
| Datalogic KBW PS2 Cable for M1100i 1400i QS6500 | KBW PS2 Cable for M1100i 1400i QS6500 | $27.83 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Magellan 1500i Product Reference Guide | 8MB | Download |
|
Magellan 1500i Quick Reference Guide | 3MB | Download |
|
Magellan 1500i Brochure | 614KB | Download |
