POSMarket SKU: Z4541
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

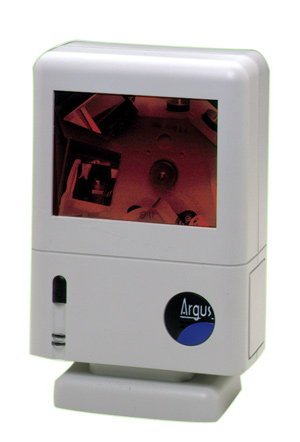

The MS7220 ArgusSCAN is an aggressive omnidirectional laser barcode scanner ideal for retail, convenience, liquor, grocery, and specialty stores. Because it is engineered with a large, high speed scan area and a bright 650nm laser, MS7220 ArgusSCAN boasts exceptionally high first pass read accuracy for maximum productivity.
Designed for applications where counter space is at a premium, Metrologic MS-7120 Orbit is the ideal presentation scanner for retail, convenience, liquor and specialty stores. In addition, Orbit~s unique, contoured shape allows it to be picked up and used as a hand-held when scanning large bulky items. The MS7220 ArgusSCAN is an aggressive omni- directional laser barcode scanner ideal for retail, convenience, liquor, grocery and specialty stores. Because it is engineered with a large, high speed scan area and a bright 650 nm laser, MS7220 ArgusSCAN boasts exceptionally high first pass read accuracy for maximum productivity.
Offering four stand configurations, the MS7220 ArgusSCAN is adaptable to a variety of applications. The modular design allows it to be mounted either horizontally or vertically, and a flexible post can be added, raising the scanner an additional 76 mm (3€). Combine this with the MS7220 ArgusSCAN's programmable depth of field, and the MS7220 ArgusSCAN can be customized to meet the require- ments of even the most unique scanning environment.
Multiple interfaces and data parsing make the MS7220 ArgusSCAN compatible with most cash registers right out of the box, and the RS232 auxiliary port allows for check readers, magstripe readers or barcode scanner input. Simply plug a Metrologic hand-held scanner into the auxiliary port for scanning bulky or heavy items.
MS7220 ArgusSCAN is MetroSet2, Metro- Select and MetrOPOS compatible, making con- figuration easy. And the MS7220 ArgusSCAN's compatibility with Metrologic's PowerLink user replaceable cables allows users to quickly replace damaged cables. All of these features, and a two-year warranty make this scanner an excellent value.
GENERAL | ||
Packaged Quantity | 1 | |
Manufacturer | Honeywell, Inc. | |
POWER DEVICE | ||
Type | power adapter | |
INPUT DEVICE | ||
Connectivity Technology | wired | |
TTL Decoding | decoded | |
OK Notification | LED indicator, beeper | |
PRINTER | ||
Barcodes | Codabar, Code 11, Code 128, Code 39, Code 39 Full ASCII, Code 93, ITF, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Telepen, UPC, UPC-A, UPC-E | |
BARCODE | ||
Interface Type | USB | |
Scan Field Width | 5.31 in | |
Type | stationary | |
Interface | USB | |
Light Source Wave Length | 650 nm | |
Barcodes | Codabar, Code 11, Code 128, Code 39, Code 39 Full ASCII, Code 93, ITF, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Telepen, UPC, UPC-A, UPC-E | |
Print Contrast Signal (PCS) | 35% | |
Max Working Distance | 8.5 in | |
Skew (Degrees) | 60 | |
Pitch (Degrees) | 60 | |
Minimum Bar Width | 5.1181 mil | |
Max Scan Field | 5.31 in | |
Decode Capability | Code 93, Matrix 2 of 5, Code 39, Telepen, Code 39 Full ASCII, UPC-A, UPC-E, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, ITF | |
Scan Mode | Fixed projection | |
OK Notification | Beeper, LED indicator | |
Scan Speed | 2000 line / sec | |
Connectivity Technology | Wired | |
Scan Element Type | Visible laser diode | |
TTL Decoding | Decoded | |
MISCELLANEOUS | ||
Color | light gray | |
Color Category | gray | |
Included Accessories | stand | |
POWER | ||
Power Device | Power adapter - external | |
ENVIRONMENTAL PARAMETERS | ||
Humidity Range Operating | 5 - 95% | |
Min Operating Temperature | 32 °F | |
Max Operating Temperature | 104 °F | |
SCANNER | ||
Type | barcode scanner | |
Form Factor | desktop | |
Scan Mode | fixed projection | |
Scan Element Type | visible laser diode | |
Scan Speed | 2000 line/sec | |
HEADER | ||
Brand | Honeywell | |
Product Line | Honeywell | |
Model | MS7220 Argus | |
Packaged Quantity | 1 | |
Compatibility | PC | |
DIMENSIONS & WEIGHT | ||
Width | 6.8 in | |
Depth | 2.7 in | |
Height | 5.9 in | |
Weight | 1.98 lbs | |
INTERFACE REQUIRED | ||
Type | USB | |
Total Qty | 1 | |
Connector Type | Type A | |
CABLE DETAILS | ||
Type | USB cable | |
Form Factor | external | |
Included Qty | 1 | |
PHYSICAL CHARACTERISTICS | ||
Weight | 1.98 lbs | |
SLOT REQUIRED | ||
Type | none | |
GENERAL | ||
Manufacturer | Honeywell, Inc. |
Filename | Size | ||
---|---|---|---|
![]() |
Honeywell MS7220 Datasheet | 1MB | Download |
