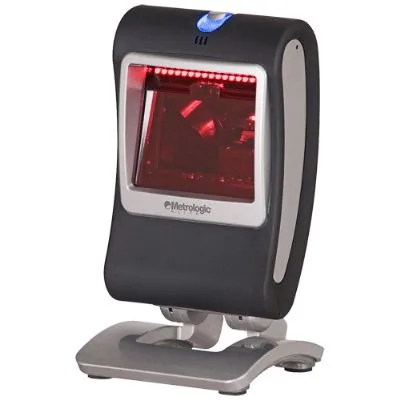

Honeywell MS7580 Genesis
POSMarket SKU: Z2249

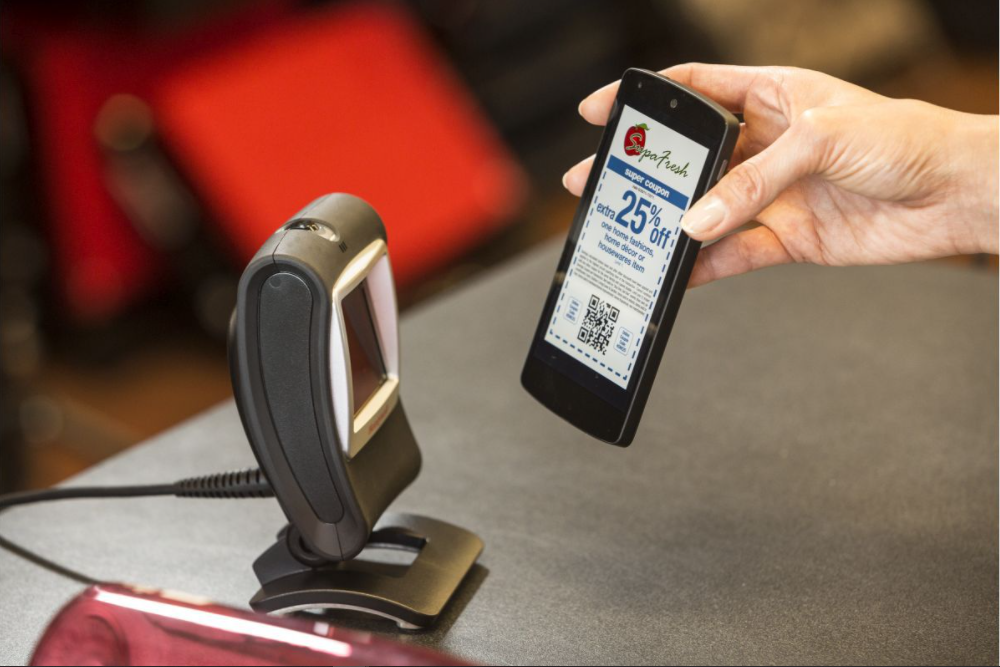

The MS7580 Genesis is a presentation scanner engineered to read all standard 1D, PDF & 2D Barcodes. It is powered by Honeywell's Adaptus Imaging technology 6.0 to provide breakthrough performance. Built to read barcodes on paper, labels, tickets, cards and mobile phone screens, the MS7580 is your one-stop scanning solution
Product Overview
Simply put, the Genesis 7580g scanner is a high achiever. It's the world' first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes.
Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. It even gives you aggressive reading of barcodes on highly reflective surfaces like mobile phone screens.
Honeywell's patented CodeGate technology, along with an activation button, support your menu-scanning and other targeted-scanning applications.
Three additional patented technologies augment the Genesis 7580g scanner's unmatched feature set:
- Shielded LEDs minimize the intense flashing common among other area imagers.
- CodeSelect allows the device to capture up to 15 barcodes in a single flash and output data in any predetermined order.
- TotalFreedom expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly into the Genesis 7580g, enabling enterprises to rapidly support proprietary or newly-developed symbologies.
Product Specifications
| MECHANICAL | |
| Dimensions (L x W x H) | 80 mm x 83 mm x 150 mm |
| Weight | 340 g |
| ELECTRICAL | |
| Input Voltage | 5.5 VDC +/- 0.25 V |
| Operating Power | 2.0 W (400 mA @ 5 V) |
| Standby Power | 0.5 W (100 mA @ 5 V) |
| Host System Interfaces | USB RS232 Keyboard Wedge IBM 46xx (RS485) |
| Auxiliary Ports | EAS with interlock (EAS model) |
| ENVIRONMENTAL | |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -40C to 60C |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 1.5 m (5 ft) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 100,000 Lux |
| SCAN PERFORMANCE | |
| Scan Pattern | Area Image (832 x 504 pixel array) |
| Motion Tolerance | 200 cm/s (78 in/s) for 13 mil UPC at optimal focus |
| Print Contrast | 20% minimum reflectance difference |
| Decode Capability | Reads standard 1D, PDF, 2D, Postal and OCR symbologies |
| Warranty | 3 year factory warranty |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MK7580-30B38-02-A | MS7580 Genesis 2D Scanner, USB Interface, Black | $364.32 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Honeywell Edge Service Addon Scanner Adv Exch | Edge Service, Advanced Exchange, Scanner | $39.22 | View Product |
| Honeywell Edge Service AddOn Scanner Replace 5Y | AddOn, Edge Service, Device Replacement, Scanner, 5 Year | $59.46 | View Product |
| Honeywell Cable 1200/1300/1900 Usb a Str 3m Blk | Cable 1200/1300/1900 Usb a Str 3m Blk | $34.16 | View Product |
| Honeywell CBL-500-300-C00 | USB Interface cable for Honeywell hand held scanners, Black, Type A, 3m (9. | $34.16 | View Product |
| Honeywell CABLE XENON 1900 USB-A 5V HSM COIL 2M | CABLE XENON 1900 USB-A 5V HSM COIL 2M | $34.16 | View Product |
| Honeywell Cable Scanner rs232 5v 3m Cld Blk | Cable Scanner rs232 5v 3m Cld Blk | $34.16 | View Product |
| Filename | Size | ||
|---|---|---|---|
![]() |
Honeywell MS7580g Hands-Free Scanner Data Sheet | 516KB | Download |
![]() |
Honeywell MS7580g Users Guide | 4MB | Download |
![]() |
Honeywell MS7580g Quick Start Guide | 792KB | Download |
![]() |
Honeywell MS7580 Wall Mount Installation Guide | 249KB | Download |
![]() |
Honeywell EasyDL Integration Guide | 273KB | Download |
![]() |
Linux Keyboard Layouts for Honeywell Scanners | 173KB | Download |
![]() |
Honeywell MS7580g Regulatory Sheet | 2MB | Download |
![]() |
Honeywell MS7580g Brochure | 136KB | Download |
