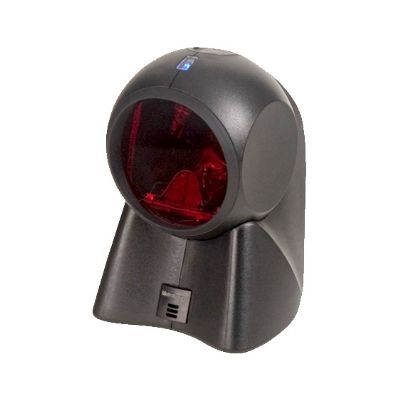

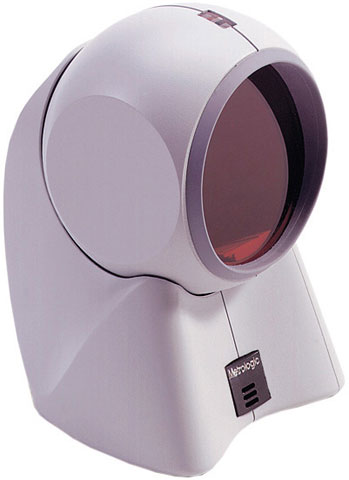

Honeywell Orbit 7120
from $367.56 (incl. GST)
POSMarket SKU: Z4642
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The Orbit 7120 is the best selling hands-free omni-directional scanner for a reason. With it's 20 scan line omni-directional scanner, the Orbit 7120 provides an extremely fast scan performance and is optimized for "first pass" reads.
Product Overview
The Honeywell's 7120 Orbit provides aggressive omnidirectional scanning in an award-winning design for retailers seeking an affordable, aesthetically pleasing scanning solution.
The Honeywell Orbit is the all-time, best-selling hands-free omnidirectional scanner for a reason. Several reasons, actually. The Orbit 7120 scanner is innovative, elegant and affordable with an award-winning design that's just the right fit for convenience retail applications where counter space is at a premium.
If you're a retailer in need of an affordable, yet aggressive omni-directional scanning solution that's aesthetically pleasing to boot, the Honeywell Orbit series is tough to beat. Orbit series scanners maximize your customer satisfaction and employees efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second.
The Orbit series features an award-winning design that's compact, lightweight and rugged. Its shape enables handheld scanning of large, bulky items. And for added flexibility, the scanning head can be tilted within a 30 degree range to accommodate objects of various sizes and shapes.
The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet configuration software safeguards long-term infrastructure commitments in the event of a change in the POS system or software.
Features
The Honeywell Orbit is the all-time, best-selling hands-free omnidirectional scanner for a reason. Several reasons, actually. The Orbit 7120 scanner is innovative, elegant and affordable with an award-winning design that's just the right fit for convenience retail applications where counter space is at a premium.
If you're a retailer in need of an affordable, yet aggressive omni-directional scanning solution that's aesthetically pleasing to boot, the Honeywell Orbit series is tough to beat. Orbit series scanners maximize your customer satisfaction and employees efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second.
The Orbit series features an award-winning design that's compact, lightweight and rugged. Its shape enables handheld scanning of large, bulky items. And for added flexibility, the scanning head can be tilted within a 30 degree range to accommodate objects of various sizes and shapes.
The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet configuration software safeguards long-term infrastructure commitments in the event of a change in the POS system or software.
Features
- 20 Scan Line Omnidirectional Pattern - Provides aggressive scanning as an additional benefit to hand presentation applications
- Sweet Spot Scanning: Engineered 'sweet spot' to optimize scan performance and first pass read rate
- Adjustable Scan Head: Ability to tilt scanner 30° for targeted scanning or larger products
- Flash ROM: Protects POS investment with free firmware updates via MetroSet 2 software and standard PC
- Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass
- Built-in RF EAS Antenna (Orbit 7180 only): Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
Product Specifications
| MECHANICAL | |
| Dimensions (L x W x H) | 105 mm x 102 mm x 150 mm |
| Weight | 400 g |
| ELECTRICAL | |
| Input Voltage | 5 VDC +/- 0.25 V |
| Operating Power | 900 mW (180 mA @ 5 V) |
| Standby Power | 850 mW (170mA @ 5 V) |
| Host System Interfaces | USB RS232 Keyboard Wedge IBM 468xx (RS485) |
| ENVIRONMENTAL | |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -40C to 60C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 1.2 m drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 4842 Lux |
| SCAN PERFORMANCE | |
| Scan Pattern | Omnidirectional: 5 fields of 4 parallel lines |
| Scan Speed | Omnidirectional: 1120 scan lines per second; single line |
| Print Contrast | 35% minimum reflectance difference |
| Decode Capability | Reads standard 1D and GS1 DataBar symbologies |
| Warranty | 3 year factory warranty |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MK7120-31A38 | Orbit 7120 Scanner, Black, USB Interface | $367.56 | Add to Cart | |
| MK7120-31F41 | Orbit 7120 Scanner, Black, Serial interface, includes power supply | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Honeywell Edge Service Addon Scanner Adv Exch | Edge Service, Advanced Exchange, Scanner | $39.22 | View Product |
| Honeywell Edge Service AddOn Scanner Replace 5Y | AddOn, Edge Service, Device Replacement, Scanner, 5 Year | $59.46 | View Product |
| Honeywell Cable Usb 2.9m Str Orbit ms7120/ms7180 | Cable Usb 2.9m Str Orbit ms7120/ms7180 | $36.69 | View Product |
| Honeywell PSU 5.2V | Psu 5.2V 1a 1200/1470/1950/7120/9590 Etc | $69.58 | View Product |
| Honeywell Stand Wall Mount/Desk Orbit | Honeywell - Barcode scanner stand - desk mountable, wall mountable - for Honeywell MS7120 Orbit | $58.19 | View Product |
| Honeywell 7120/3580 RS232 Cable | Interface cable for the Honeywell 7120/3580 | $39.22 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Honeywell Orbit 7120 OrbitCG 7180 | 499KB | Download |
|
Honeywell Product Reference Guide | 568KB | Download |
|
Honeywell Quick Start Guide | 561KB | Download |
