Honeywell Orbit 7190G
POSMarket SKU: Z4850
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

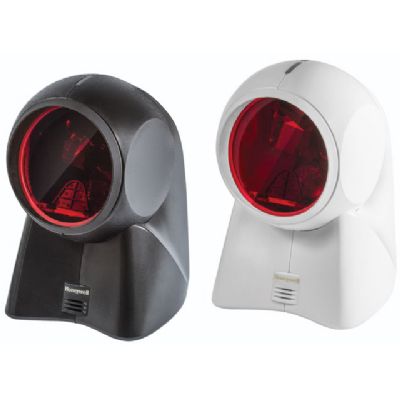

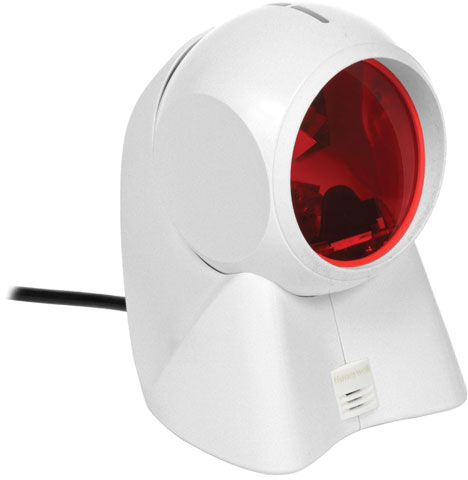

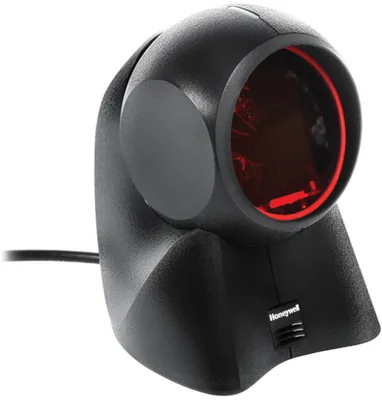

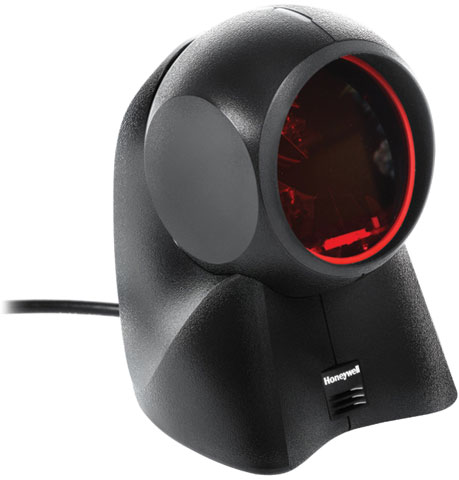

Honeywell 7190G 2D Desktop USB. The best of both worlds!! The Oribit 7190G is the first hybrid scanner of it's kind, with a 1D Laser Scanner & 2D Imager scanner in the one unit. It combines Honeywell's proven superior 1D Laser scanning performance, with an added Area Imager for scanning of digital 1D, 2D and PDF codes. Gone are the days of sacrificing Laser scanning speed if you need to upgrade to 2D reading.
Product Overview
Breakthrough Hybrid Technology
The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner - no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.
Dual-Working Modes
With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.
Superior Scanning Performance
A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.
Adjustable Scan Head
The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30 degrees for targeted scanning of larger products.
Multi-Interface Design
Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection - eliminating the tedious task of scanning programming barcodes.
Product Specifications
| MECHANICAL | |
| Dimensions (L x W x H) | 108 mm x 103 mm x 148 mm |
| Weight | 410 g |
| ENVIRONMENTAL | |
| Storage Temperature | -40C to 60C |
| Operating Temperature | 0C to 40C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 1.2 m drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | Laser: 4842 Lux Imager: 100000 Lux |
| ELECTRICAL | |
| Input Voltage | 5 VDC +/- 0.25 V |
| Operating Power | 472 mA @ 5 V |
| Standby Power | 255 mA @ 5 V |
| Host System Interfaces | USB, RS-232, Keyboard Wedge, IBM468xx (RS485) |
| EAS Features | EAS with interlock and integrated RF EAS antenna (EAS model) |
| SCAN PERFORMANCE | |
| Scan Pattern | Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array) |
| Scan Speed | Omnidirectional: 1120 scan lines per second FPS: 30 |
| Symbol Contrast | 35% minimum reflectance difference |
| Decode Capability | Laser: Reads standard 1D, GS1 DataBar symbologies Imager: Reads standard 1D, PDF and 2D symbologies |
| Warranty | Three-year factory warranty |
| TYPICAL PERFORMANCE | |
| LASER | 5 MIL CODE 39: 0 mm - 50 mm 7.5 MIL CODE 39: 0 mm - 150 mm 10 MIL CODE 39: 0 mm - 220 mm 13 MIL UPC: 0 mm - 275 mm 26 MIL UPC-E: 0 mm - 300 mm |
| IMAGER | 5 MIL CODE 39: 0 mm - 70 mm 13 MIL UPC: 0 mm - 245 mm 6.7 MIL PDF417: 0 mm - 70 mm 10 MIL DATAMATRIX: 0 mm - 75 mm 20 MIL QR: 0 mm - 200 mm 20 MIL C39: 0 mm - 327 mm |
| RESOLUTION | Laser: 5 mil Imager: 1D: 4mil, 2D: 6.7 mil |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 7190G-2USBX-0 | Orbit 7190G Scanner, 1D/2D, USB interface, Black | $283.36 | Add to Cart | |
| 7190G-0USBX-0 | Orbit 7190G Scanner, 1D/2D, USB interface, White | $494.62 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Honeywell OPINTEL Service Management Pilot | OPINTEL Service Management Pilot Max 100 devices and 60 days. | $1.27 | View Product |
| Honeywell Edge Service Addon Scanner Adv Exch | Edge Service, Advanced Exchange, Scanner | $39.22 | View Product |
| Honeywell Edge Service AddOn Scanner Replace 5Y | AddOn, Edge Service, Device Replacement, Scanner, 5 Year | $59.46 | View Product |
| Honeywell Cable Orbit 7190g Usb a Str 3m Blk | Cable Orbit 7190g Usb a Str 3m Blk | $34.16 | View Product |
| Honeywell Stand Wall Mount/Desk Orbit | Honeywell - Barcode scanner stand - desk mountable, wall mountable - for Honeywell MS7120 Orbit | $58.19 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Honeywell Orbit 7910G Brochure | 386KB | Download |
|
Honeywell Orbit 7910G User Guide | 4MB | Download |
|
Honeywell Orbit 7910G Quick Start Guide | 462KB | Download |
|
Honeywell Orbit 7910G Data Sheet | 388KB | Download |
|
Muscle Maker Grill Case Study | 3MB | Download |
|
Scanner Comparison Guide | 1MB | Download |
|
Easydl 2-0 Software Plug-in Data Sheet | 295KB | Download |
