POSMarket SKU: Z1875
This model is available in 6 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

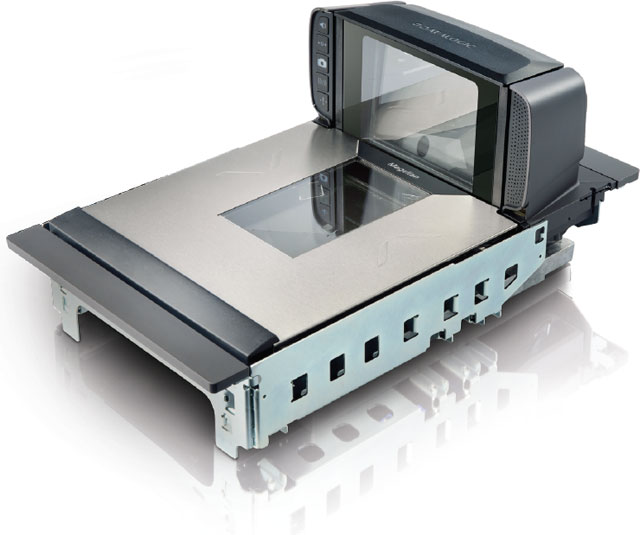

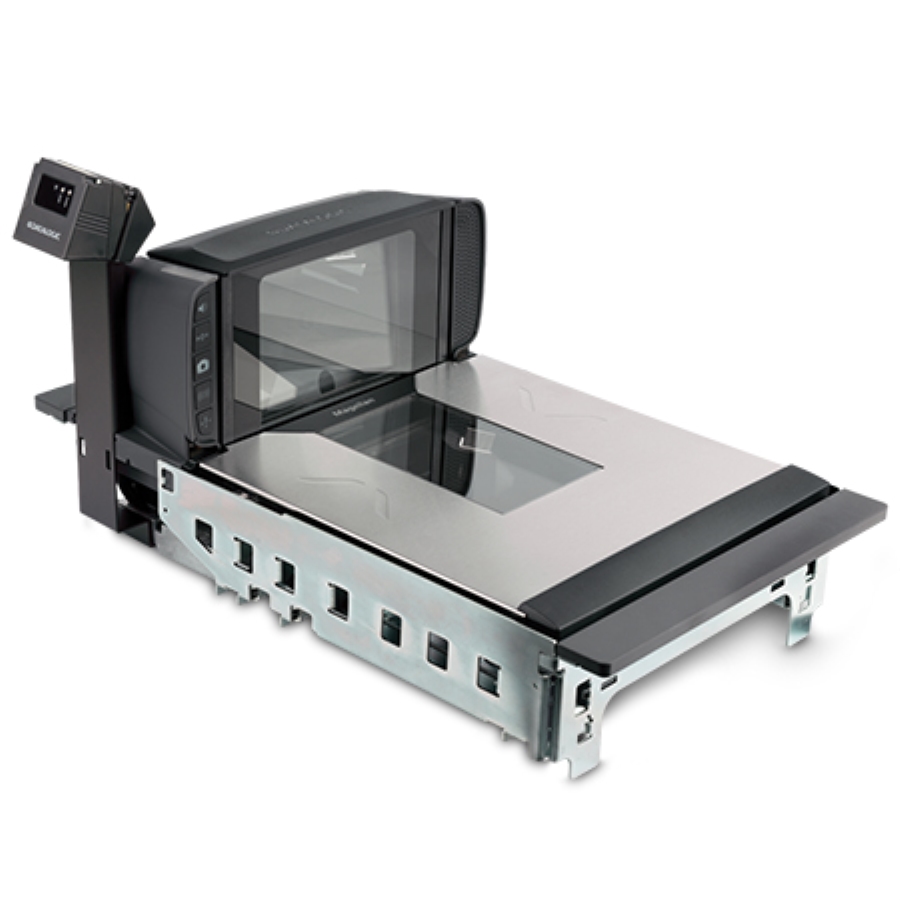

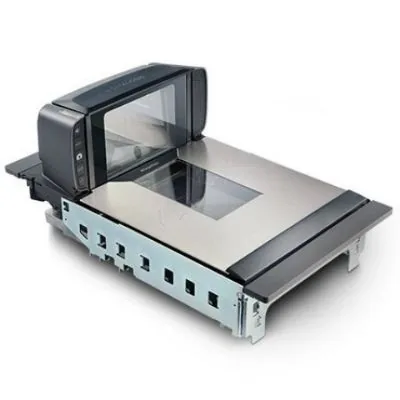

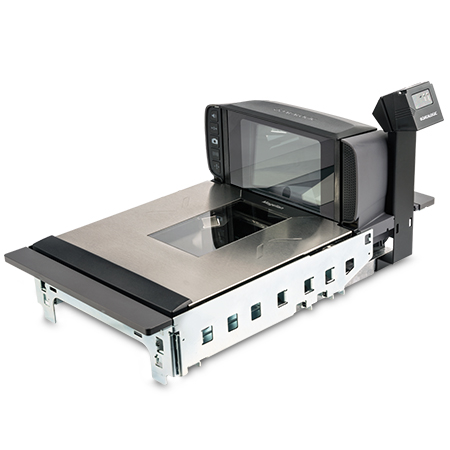

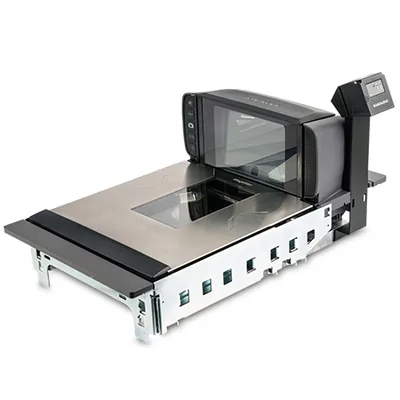

The Magellan 9300i scanner and scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
Scan Engine | Omni-Directional Area Imager Scanner |
Light Source | Multiple Diffused LED's. Orientation and wavelength optimized for eye comfort |
Scan Pattern | Seamless reading of Linear and 2D codes in all planes (5 sides plus customer service scanner) |
Scan Rate | N/A |
Image Capture | Graphic Formats: BMP, JPEG, TIFF GreyScale: 256, 16, 2 |
Contrast Ratio | Min. 25% |
Resolution | 5 mil |
Depth of field | Read Height 15.2 cm |
Tilt Angle | 360° |
Pitch Angle | 360° |
Ambient Light Immunity | 0 - 86,080 lux |
Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes 2D:Aztec Code; Data Matrix; Micro QR Code; QR Code Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites |
Programming Method | Magellan On-Screen Programming (OSP) configuration software is available for download at no charge. Remote Management Capabilities: WMI (OPOS and JavaPOS) and MBeans (JavaPOS) compliant Host Download: Supports IBM Director, Wavelink Avalanche and other ERP Management Solutions. |
Driver available | JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
Indicators/Controls | Audio: 85dB Speaker, adjustable Tone & Volume, supports WAV file formats Visual: Good Read confirmation for all reading planes, Scale center of zero, ScaleSentry Event, Sensormatic EAS Status |
Communication Type | Corded |
Interfaces | IBM 46xx, RS232, OEM IBM USB, Powered USB, Single cable RS232 Scanner/Scale |
I/O Ports | Powered RS232 Aux Port Powered USB host Type A x 2 EAS Controller Ports Sensormatic, Interlock Remote Scale Display port Scale Host Port |
I/O Devices (Intergrated) | Scale (Model Dependent): Capacity: 15 kg Maximum Static weight 68 kg Minimum Increment: 0.005 kg Vibration Immunity: 4 Programmable Filter settings Adjustments required: Calibration |
Supply Voltage | AC Input: 100-250 VAC, 50-0 Hz |
Power Consumption | Nominal 12 Watts, Sleep mode 11 Watts |
ESD Protection | 25 kV |
Operating Environment | 10 ~ 40 °C RH: 5-95% Non Condensing |
Storage Environment | -40 ~ 70 °C RH: 5-95% Non Condensing |
EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS, Complies to China RoHS, Complies to R.E.A.C.H., EC1907/2006 |
External Dimensions (WxDxH) | Width: 29.2 cm Depth Below the Counter: 10.2 cm Height Above the Counter: 13cm Length: 93/9401 Short Scanner only 35.6 cm 93/9403 Medium Scanner only 40.1 cm 93/9404 Medium Scanner/Scale 40.1 cm 93/9406Long Scanner/Scale 50.8 cm |
Weight | Long Platter Scanner/Scale 8 Kg |
Model | Description | Price | Stock | |
---|---|---|---|---|
9321140020-040431 | Scanner/Scale, Medium Sapphire Glass Shelf, Metric, Dual Display, AU Power supply, RS232 cable | $1,745.70 | Add to Cart | |
9321150021-040431 | Scanner/Scale, Long Sapphire Glass Platter, Flange Mount, Metric, Scale Sentry, Dual Display, AU Power supply, RS232 cable | $2,585.00 | Add to Cart | |
9321151020-040413 | Scanner/Scale, Long Sapphire Glass Shelf, Metric, Dual Display, AU Power supply, Dual RS232 cable | $2,543.75 | Add to Cart | |
9321110020-040431 | Scanner/Scale, Medium DLC Shelf, Metric, Dual Display, AU Power supply, RS232 cable | $1,520.21 | Add to Cart | |
931014110 | Scanner Only, Medium Sapphire Glass Shelf | $1,442.10 | Add to Cart | |
9321110021-040431 | Scanner/Scale, Medium DLC Shelf, Metric, Scale Sentry, Dual Display, AU Power supply, RS232 cable | $CALL |
Model | Description | Prices From | |
---|---|---|---|
Datalogic Ease Of Care 9300i 5 Day 1Yr Rnw | Ease Of Care 9300i 5 Day/1Yr Rnw | $75.90 | View Product |
Datalogic Ease Of Care Magellan 9300i 5 Day 5 Year | Ease Of Care Magellan 9300i 5 Day 5 Year | $166.98 | View Product |
Datalogic Ease of Care Comp Magellan 9300I 2 day 3 year | Ease of Care Comp Magellan 9300I 2 day 3 year | $179.63 | View Product |
Datalogic 9300I S/S Med Saph RS DB9 D/D S/Sentry | Magellan 9300i Scanner Scale, AU Config, Medium Sapphire Platter, Shelf Mount, Metric, Scale Sentry, Dual Display, AU Power Supply, Single Cable RS232 D9 | $3,118.50 | View Product |
Datalogic Customer Service Scanner | Customer Service Scanner (CSS) with Bonnet Side Mount Accessory for 9300i and 9400i Scanner/Scales | $487.03 | View Product |
Datalogic Mnt Omni for Customer Scanner 9300I/9400 | Omni Mount for Customer Service Scanner (CSS Ordered Separately) | $17.71 | View Product |
Datalogic Mount Back for Customer Scanner 9300I/9400 | Bonnet Back Mount for Customer Service Scanner (CSS Ordered Separately) | $27.83 | View Product |
Datalogic Mount Side for Custoer Scanner 9300I/9400 | Bonnet Side Mount for Customer Service Scanner (CSS Ordered Separately) | $27.83 | View Product |
Datalogic Customer Scanner w mnt Omni 9300I 9400I | Customer Service Scanner with Omni Mount Accessory | $487.03 | View Product |
Datalogic Remote Display Single 22in Pole MAG 9XXX | Remote Single Display 22in Pole MAG 9XXX | $164.45 | View Product |
Datalogic Cable RS-232 DB9F Scale 9XXXI 4.5m | Cable, RS-232, PC Scale, Female, 15 ft DB9F Scale 9XXXI 4.5M | $33.52 | View Product |
Datalogic Cable, USB A E/P 4.5m for 9XXXI | Cable, USB, Type A, External Power, 4.5 m/15 ft for use with Magellan, 9300i, 9400i, 9800i | $35.42 | View Product |
Datalogic Cable, RS-232, PC, 4.5 m/15 ft for Magellan 9XXXi | Cable, RS-232, PC, 4.5 m/15 ft For use with Magellan 9XXXi | $35.42 | View Product |
Datalogic Cable RS-232 4.5M 3450VSI/3550HSI/9300I | Cable, RS-232, PC, 4.5 m/15 ft | $31.63 | View Product |
Datalogic Cabl Gryphon AUX Magellan 8XXX 9XXXIe | Cable Gryphon AUX Magellan 8XXX/9XXXIe | $45.54 | View Product |
Datalogic Remote Display SGL SGL Interval Mag 9XXX | Remote Display SGL SGL/Interval Mag 9XXX | $145.48 | View Product |
Datalogic Remote Dual Display for 9300I/9400I/9800I | Remote Metric, Single Interval, Dual Head Scale Display for Magellan 9300i, 9400i and 9800i. | $221.38 | View Product |
Filename | Size | ||
---|---|---|---|
![]() |
Magellan 9300i-9400i Product Refence Guide | 17MB | Download |
![]() |
Magellan 9300-9400i Quick Reference Guide | 2MB | Download |
![]() |
Magellan 9300i-9400i Data sheet | 279KB | Download |
