POSMarket SKU: Z15271
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

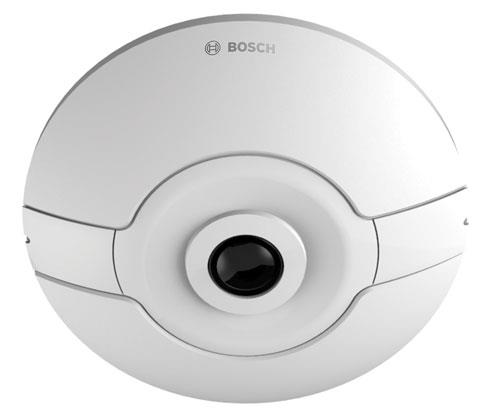

High-performance 12MP sensor low-profile camera for
intelligent panoramic surveillance with 180° or 360° lens and Essential Video Analytics
Flexidome IP Panoramic 7000 180° Lens | |
Camera | |
Image Sensor | 1/2.3" CMOS, 12 MP |
Effective Pixels (H x V) | 3648 x 2160 (8 MP) |
Frame Rate | 30 fps |
Lens | 2.1mm fixed-focus lens, F2.8 |
Lens Mount | Board |
Iris Control | Fixed |
Illumination | Color: 0.46 lux B&W: 0.15 lux |
Field of View | 180° x 93° at a distance of 0.3' / 0.1 m (minimum) |
S/N Ratio | >50 dB |
Shutter Speed | Automatic electronic shutter, fixed selectable |
Video Streaming | |
Compression | MJPEG, H.264 |
Encoding Rate | 1 to 25 intervals per second |
Overall IP Delay | 120 ms to 340 ms |
Adjustments | |
Wide Dynamic Range | 92 dB |
Day/Night | Auto, color, monochrome |
Backlight Compensation | Off, on, intelligent auto exposure |
White Balance | 2500 to 10,000 K,4 automatic modes, manual mode, hold mode |
Noise Reduction | Intelligent dynamic noise reduction |
Privacy Masking | Up to 8 zones |
De-Fog | Yes |
Audio | |
Microphone | Integrated (can be permanently disabled) |
Audio Streaming | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate |
Network | |
Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) |
Network Connectivity | Auto-MDIX |
Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
General Attributes | |
Storage Slots | Class 6 or higher 32 GB SDHC, 2 TB SDXC card |
Port | 1 x RJ45 for supporting PoE via IEEE 802.3af. 802.3at Type 1 |
Power Input | 48 VDC, PoE |
Consumption | 140 mA |
Operating Temperature & Humidity | -4 to 104°F / -20 to 40°C, 20 to 93% RH |
Storage Temperature & Humidity | -4 to 140°F / -20 to 60°C,less than 98% RH |
Dimensions | 6.2 x 1.3" / 15.8 x 3.3 cm |
Weight | 0.98 lb / 0.44 kg |
Flexidome IP Panoramic 7000 12MP 360°Lens | |
Camera | |
Image Sensor | 1/2.3" CMOS, 12 MP |
Effective Pixels (H x V) | 2640 x 2640 (7 MP) |
Frame Rate | 30 fps |
Lens | 1.6mm fixed-focus lens, F2.8 |
Lens Mount | Board |
Iris Control | Fixed |
Illumination | Color: 0.55 lux B&W: 0.18 lux |
Field of View | 180° x 180° at a distance of 0.3' / 0.1 m (minimum) |
S/N Ratio | >50 dB |
Shutter Speed | Automatic electronic shutter, fixed selectable |
Video Streaming | |
Compression | MJPEG, H.264 |
Encoding Rate | 1 to 25 intervals per second |
Overall IP Delay | 120 ms to 340 ms |
Adjustments | |
Wide Dynamic Range | 92 dB |
Day/Night | Auto, color, monochrome |
Backlight Compensation | Off, on, intelligent auto exposure |
White Balance | 2500 to 10,000 K,4 automatic modes, manual mode, hold mode |
Noise Reduction | Intelligent dynamic noise reduction |
Privacy Masking | Up to 8 zones |
De-Fog | Yes |
Audio | |
Microphone | Integrated (can be permanently disabled) |
Audio Streaming | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate |
Network | |
Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) |
Network Connectivity | Auto-MDIX |
Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
General Attributes | |
Storage Slots | Class 6 or higher 32 GB SDHC, 2 TB SDXC card |
Port | 1 x RJ45 for supporting PoE via IEEE 802.3af. 802.3at Type 1 |
Power Input | 48 VDC, PoE |
Consumption | 140 mA |
Operating Temperature & Humidity | -4 to 104°F / -20 to 40°C, 20 to 93% RH |
Storage Temperature & Humidity | -4 to 140°F / -20 to 60°C, less than 98% RH |
Dimensions | 6.2 x 1.3" / 15.8 x 3.3 cm |
Weight | 0.98 lb / 0.44 kg |
Model | Description | Price | Stock | |
---|---|---|---|---|
NIN-70122-F1 | 12MP Indoor 180 Degree Dome 7000 IP Camera, WDR, Low-Profile, Panoramic, 1.6mm | $1,860.95 | Add to Cart | |
NIN-70122-F0 | 12MP Indoor 360 Degree Dome 7000 IP Camera, WDR, Low-Profile, Panoramic, 1.6mm | $1,860.95 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
FLEXIDOME IP panoramic 7000 MP Datasheet.pdf | 698KB | Download |
![]() |
FLEXIDOME IP panoramic 7000 MP Quick Installation Guide.pdf | 3MB | Download |
![]() |
NIN70122 Installation Manual.pdf | 4MB | Download |
