POSMarket SKU: Z14806

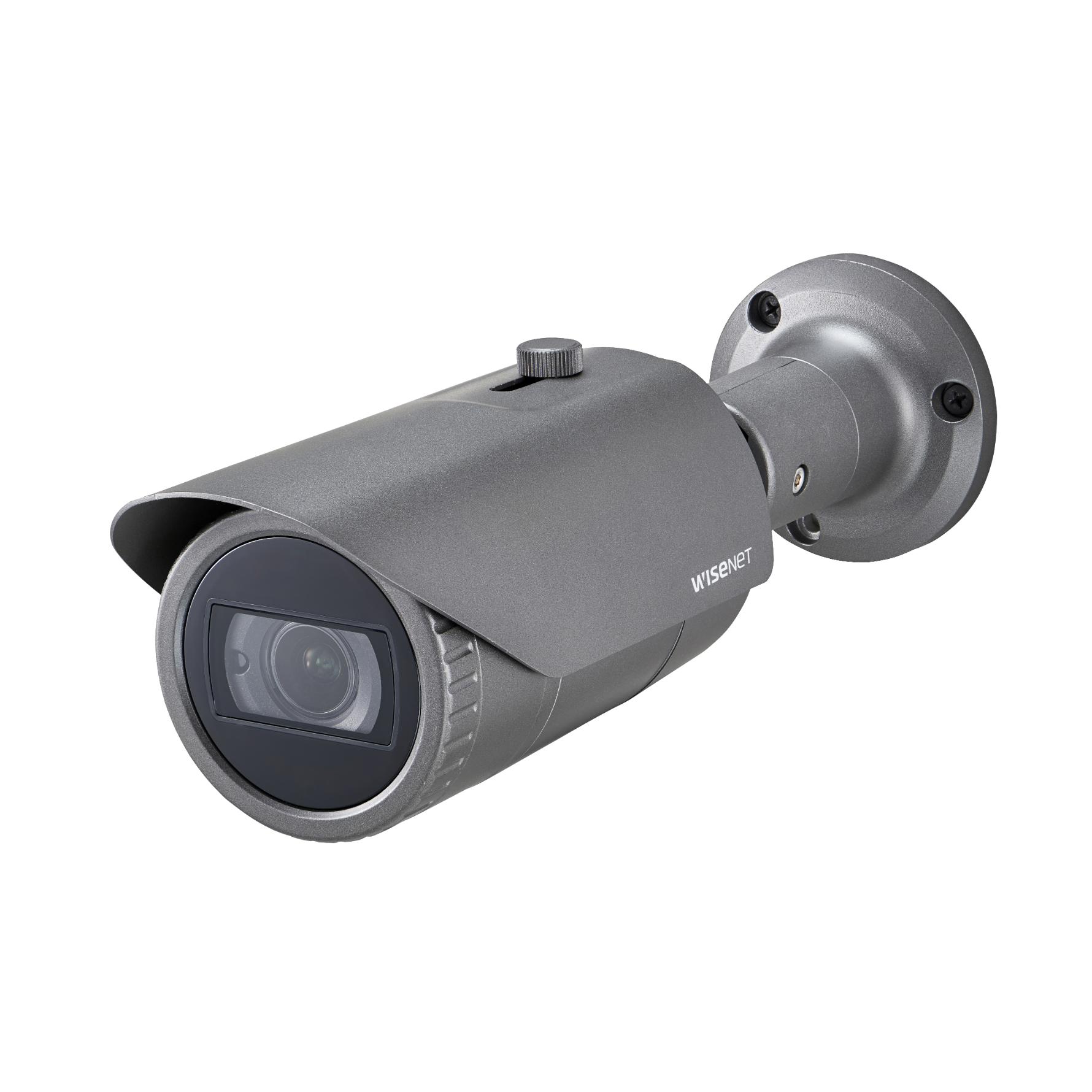

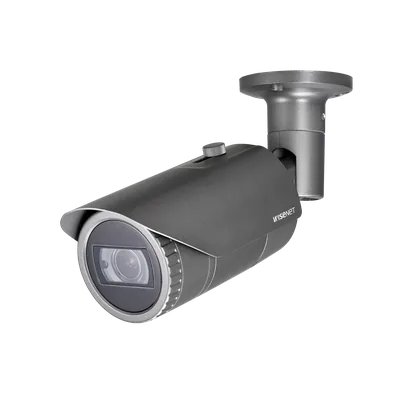

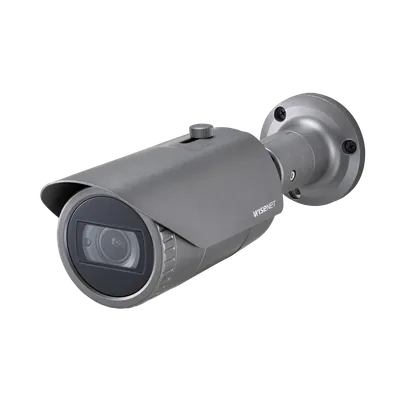

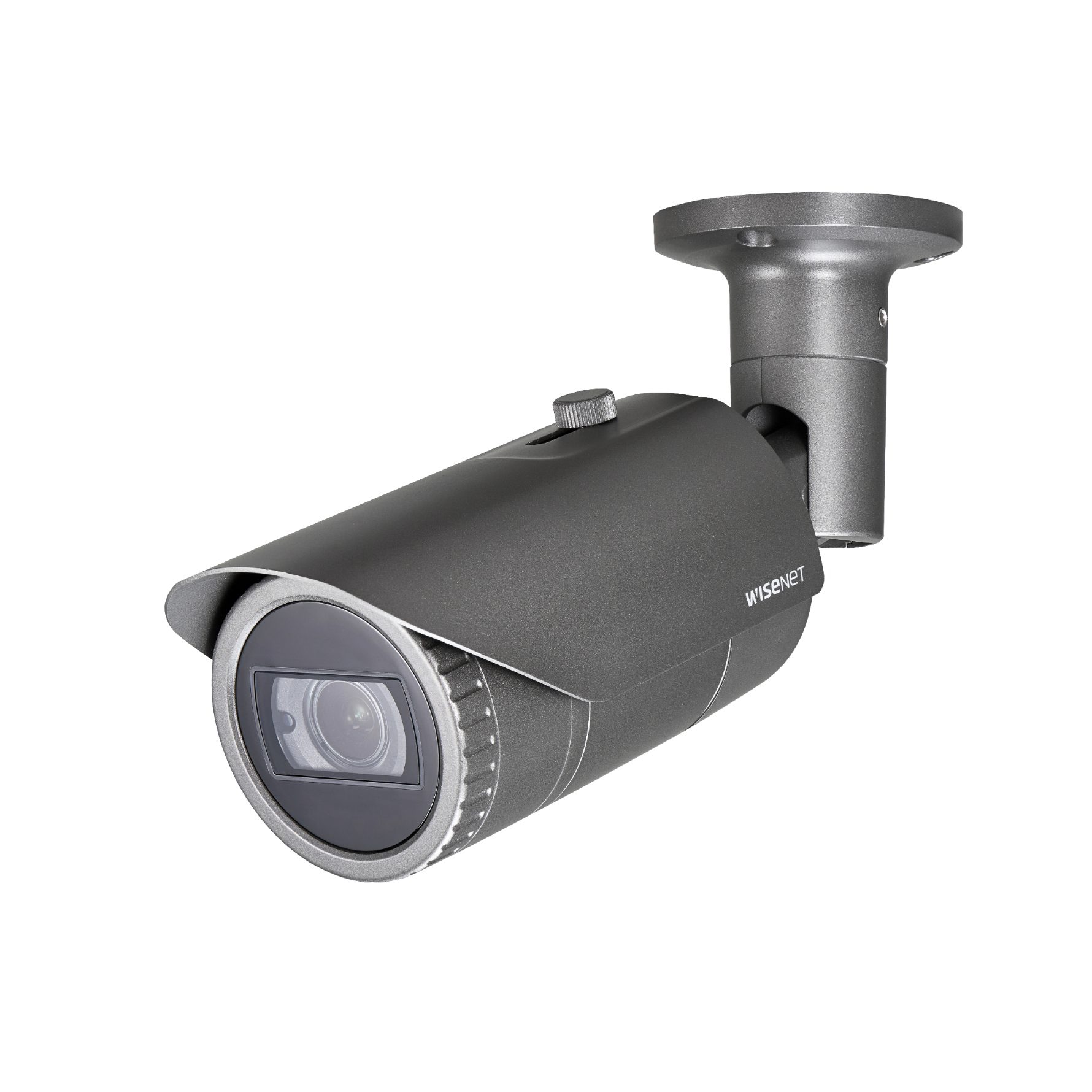

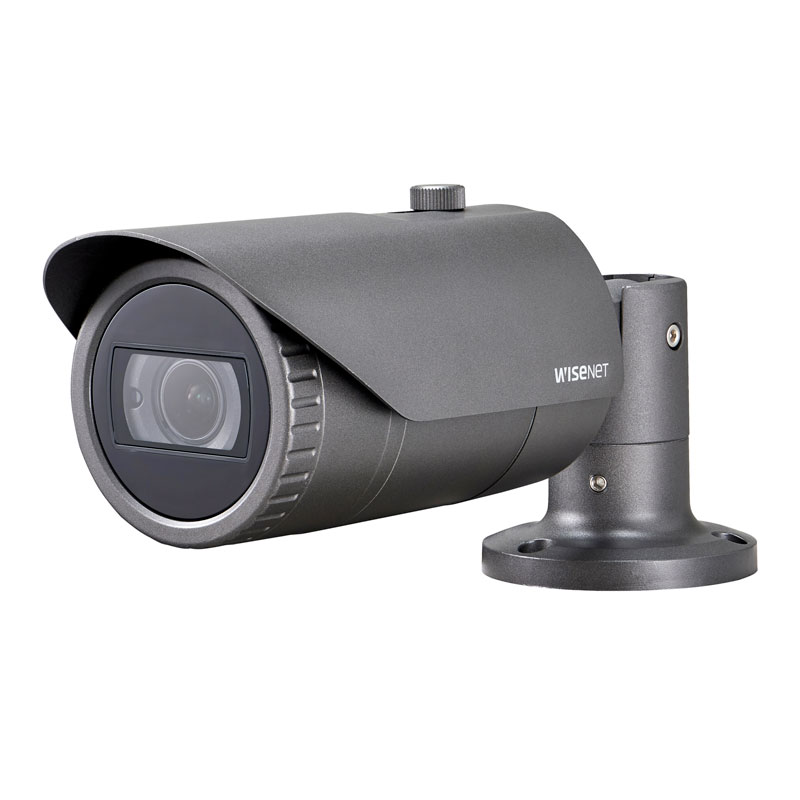

Hanwha Wisenet 1080p Analogue HD + 2MP AHD Outdoor Bullet, WDR
| VIDEO | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M pixels |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M pixels |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.11 Lux (F1.6, 1/30sec) B/W : 0 Lux (IR LED on) |
| S / N Ratio | 52dB (AGC Off, Weight On) |
| Video Output | BNC (AHD / TVI / CVI / CVBS selectable) |
| Resolution | 1920 x 1080 |
| Max. Framerate | 25fps@1080p(P) |
| LENS TYPE | |
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H : 110.2°(Wide) ~ 32°(Tele) / V : 55.4°(Wide) ~ 18°(Tele) / D : 128.4°(Wide) ~ 36.6°(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual |
| Lens Type | DC Auto Iris |
| Mount Type | Board-in Type |
| OPERATIONAL | |
| On Screen Display | Multi-language support (16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Camera Title | Off / On (Displayed 15 Characters) |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / User BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR. (Off / On) |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4 zones) |
| Privacy Masking | Off / On (8 zones rectangle) |
| Gain Control | Off / Low / Middle / High / Very High |
| White Balance | ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°) |
| Electronic Shutter Speed | 1sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev / HV-Rev |
| Profile | Basic, Day & Night, Backlight, ITS, Indoor, User |
| Alarm | (MD) Output 1 |
| Remote Control Interface | Coaxial |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron), CCP (CVI Coax Protocol), TCP (TVI Coax Protocol) |
| IR Distance | 30m (98.43ft) |
| Video Transmission Distance | 500m (5C2V Coaxial Cable) |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above-10°C (+14°F) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Input Voltage / Current | Dual (24V AC ±10% & 12V DC ±10%) |
| Power Consumption | Max. 6W |
| MECHANICAL | |
| Color / Material | Dark Gray / Aluminum |
| Dimensions (WxH) | Ø78.0 x 259.8mm (Ø3.07" x 10.23") (Without sunshield) |
| Weight | 948g (2.09 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| HCO-6080R | Hanwha Wisenet HD+ 2MP AHD Outdoor Bullet, WDR, IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm | $227.15 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
HCO6080R Datasheet.pdf | 1MB | Download |
