POSMarket SKU: Z14808

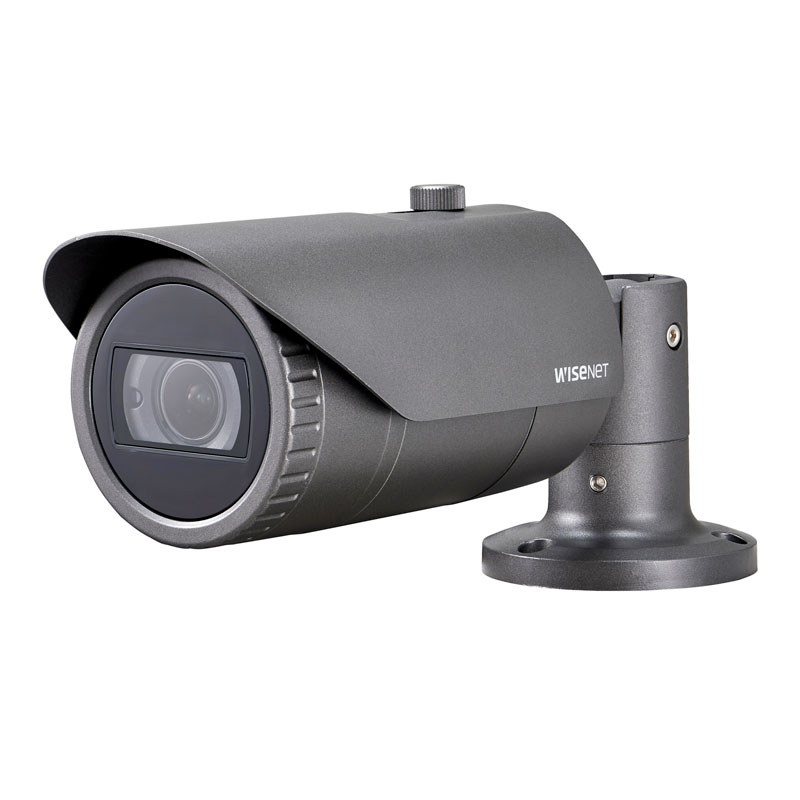

Hanwha Wisenet HD+ 4MP AHD Outdoor Bullet, 30m IR
| VIDEO | |
| Imaging Device | 1/3" 4M CMOS |
| Total Pixels | 2,720(H) x 1,536(V) |
| Effective Pixels | 2,688(H) x 1,520(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.16 Lux (F1.6) B/W : 0 Lux (IR LED on) |
| S / N Ratio | 52dB (AGC off, Weight on) |
| Video Output | BNC (AHD), Additional CVBS for installation (2Pin connector type) |
| Resolution | 2560 x 1440 |
| Max. Framerate | 25fps @ 4M |
| LENS TYPE | |
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H : 93.48°(Wide) ~ 29.44°(Tele) / V : 50.47°(Wide) ~ 16.64°(Tele) / D : 112.53°(Wide) ~ 33.7°(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Manual |
| Lens Type | DC Auto Iris |
| Mount Type | Board-in Type |
| OPERATIONAL | |
| On Screen Display | Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / User BLC / HLC |
| Wide Dynamic Range | D-WDR (Off / On) |
| Digital Noise Reduction | 2D DNR |
| Motion detection | Off / On (4 zones) |
| Privacy Masking | Off / On (2 zones rectangle) |
| Gain Control | Off / Low / Middle / High / Very High |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K°~ 10,500K°) |
| Electronic Shutter Speed | 1/25sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev |
| Alarm | (MD) output 1 |
| Remote Control Interface | Coaxial |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) |
| IR Distance | 30m (98.43ft) |
| Video Transmission Distance | 500m (5C2V Coaxial cable) |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°) / Less than 90% RH * Start up should be done at above -10°C (+14°F) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Input Voltage | Dual ( 24V AC +/-10% & 12V DC ±10%) |
| Power Consumption | MAX. 5.8W |
| MECHANICAL | |
| Color / Material | Dark Gray / Aluminum |
| Dimensions (WxH) | Ø78.0 x 259.8mm (Ø3.07" x 10.23") (Without sunshield) |
| Weight | 914g (2.02 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| HCO-7070R | Hanwha Wisenet HD+ 4MP AHD Outdoor Bullet, 30m IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm | $205.01 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
HCO7070R Datasheet.pdf | 521KB | Download |
