Hanwha HCV-6080R
POSMarket SKU: Z14802
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

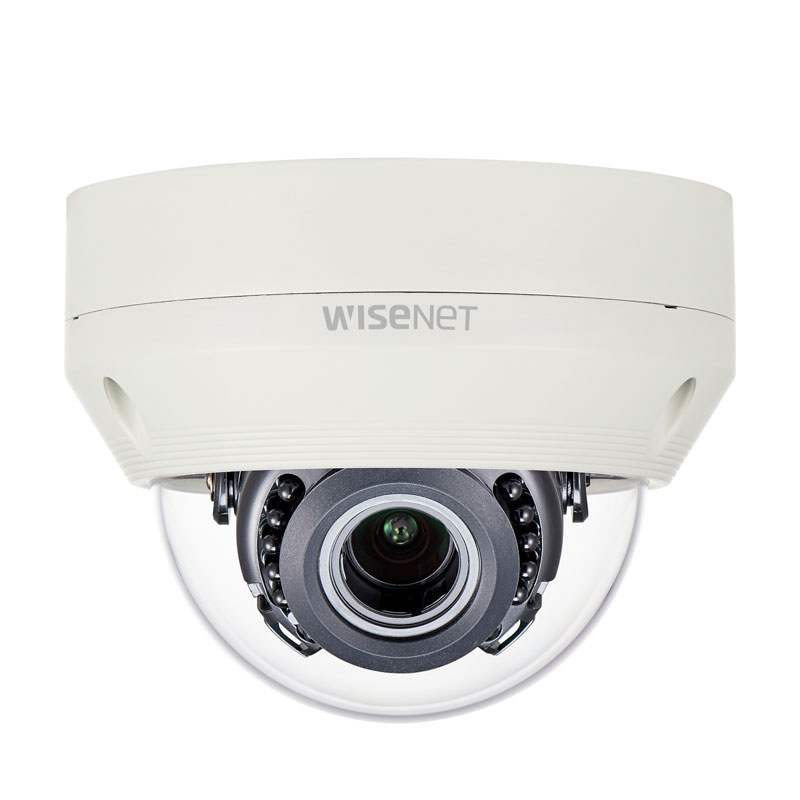

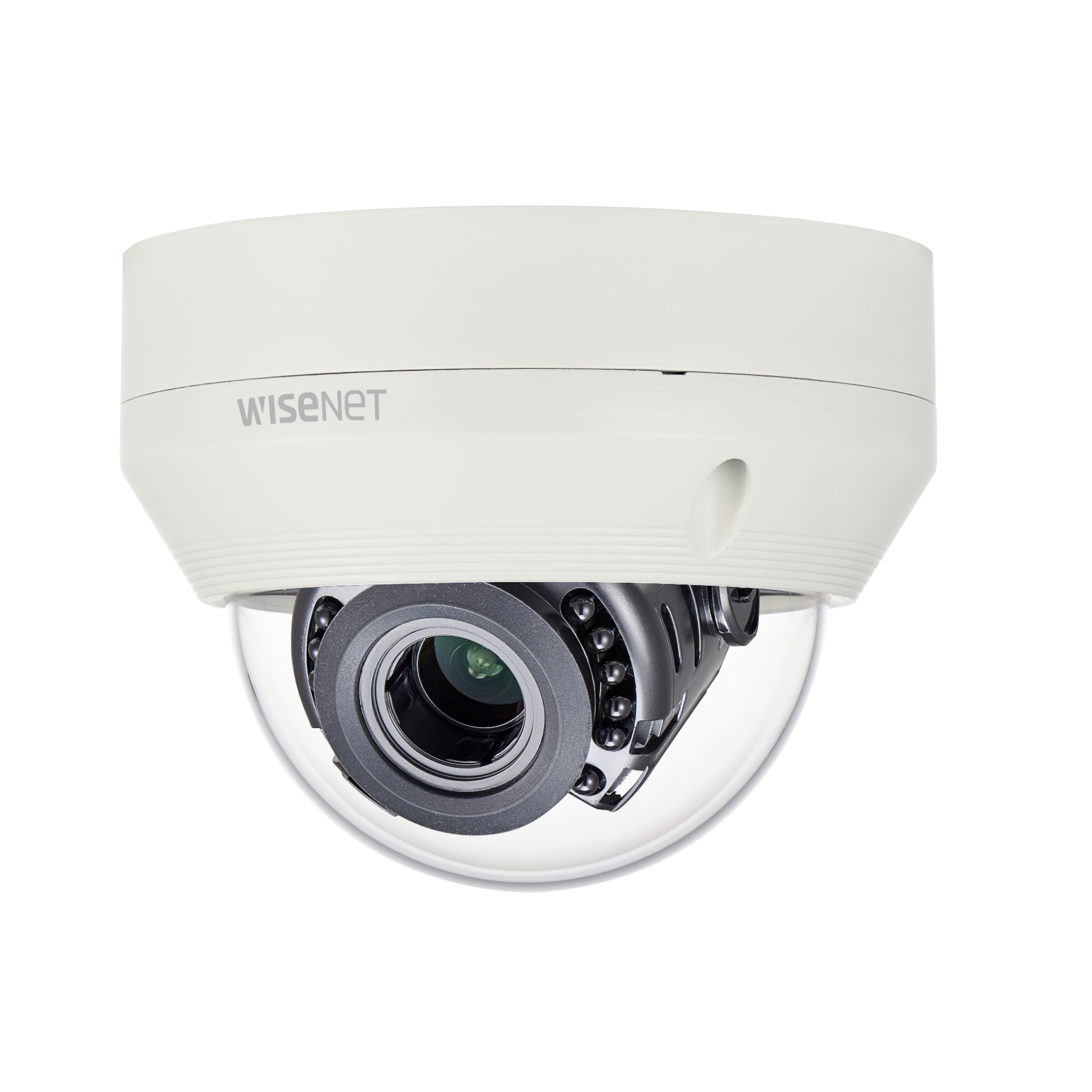

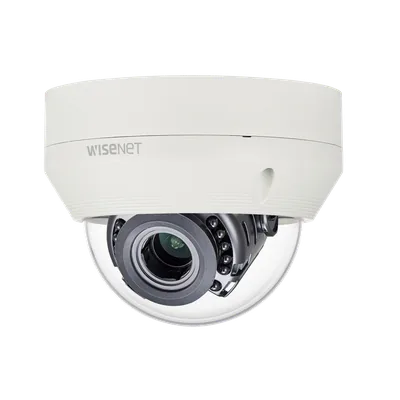

Hanwha Wisenet HD+ 2MP AHD 1080p Analogue Vandal-Resistant IR Outdoor Dome
Product Overview
This dome camera has a video transmission range up to 1640'. It is housed in an IP66- and IK10-rated aluminum enclosure for outdoor use in areas at risk of vandalism
FEATURES
- Full HD resolution
- 0.11 [email protected] (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRâ…£, Motion detection
- IR viewable length 30m, IP66, IK10
- Transmission distance max.500m
- Easy Installation (Plug & play), Dual power
Product Specifications
| Video | ||||||||||||||||||||||||||||
| Imaging Device | 1/2.8" 2MP CMOS | |||||||||||||||||||||||||||
| Resolution | 1920x1080 | |||||||||||||||||||||||||||
| Max. Framerate | 30fps / 25fps(60Hz / 50Hz) | |||||||||||||||||||||||||||
| Min. Illumination | Color: 0.11Lux(F1.6, 30IRE) BW: 0Lux(IR LED on) | |||||||||||||||||||||||||||
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) | |||||||||||||||||||||||||||
| Video Transmission Distance | 500m(5C2V Coaxial Cable) | |||||||||||||||||||||||||||
| Lens | ||||||||||||||||||||||||||||
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal | |||||||||||||||||||||||||||
| Max. Aperture Ratio | F1.6 | |||||||||||||||||||||||||||
| Angular Field of View | H: 110.2°(Wide) ~ 32°(Tele) / V: 55.4°(Wide) ~ 18°(Tele) / D: 128.4°(Wide) ~ 36.6°(Tele) | |||||||||||||||||||||||||||
| Min. Object Distance | 0.5m(1.64ft) | |||||||||||||||||||||||||||
| Focus Control | Manual | |||||||||||||||||||||||||||
| Lens Type | DC auto iris | |||||||||||||||||||||||||||
| Pan / Tilt / Rotate | ||||||||||||||||||||||||||||
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° | |||||||||||||||||||||||||||
| Operational | ||||||||||||||||||||||||||||
| Camera Title | Displayed up to 15 characters | |||||||||||||||||||||||||||
| Day & Night | Auto(ICR) | |||||||||||||||||||||||||||
| Backlight Compensation | BLC, HLC, WDR | |||||||||||||||||||||||||||
| Wide Dynamic Range | 120dB | |||||||||||||||||||||||||||
| Digital Noise Reduction | SSNRIV | |||||||||||||||||||||||||||
| Defog | Support | |||||||||||||||||||||||||||
| Motion Detection | 4ea | |||||||||||||||||||||||||||
| Privacy Masking | 8ea, rectangular zones | |||||||||||||||||||||||||||
| Gain Control | Low / Middle / High / Very High | |||||||||||||||||||||||||||
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |||||||||||||||||||||||||||
| Electronic Shutter Speed | 1 ~ 1/12,000sec | |||||||||||||||||||||||||||
| Video Rotation | H-Rev / V-Rev | |||||||||||||||||||||||||||
| Analytics | Motion detection | |||||||||||||||||||||||||||
| Alarm I/O | MD output 1ea | |||||||||||||||||||||||||||
| Alarm Triggers | Analytics | |||||||||||||||||||||||||||
| Alarm Events | Alarm output | |||||||||||||||||||||||||||
| IR Viewable Length | 30m(98.43ft) | |||||||||||||||||||||||||||
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C(Coaxitron) | |||||||||||||||||||||||||||
| Environmental & Electrical | ||||||||||||||||||||||||||||
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH | |||||||||||||||||||||||||||
| Certification | IP66, IK10 | |||||||||||||||||||||||||||
| Input Voltage | 24VAC, 12VDC | |||||||||||||||||||||||||||
| Power Consumption | Max 5.8W | |||||||||||||||||||||||||||
| Mechanical | ||||||||||||||||||||||||||||
| Color / Material | Ivory / Aluminum | |||||||||||||||||||||||||||
| Product Dimensions / Weight | Ø137x106.1mm(5.39x4.18"), 725g(1.59 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| HCV-6080RW | Hanwha Wisenet HD+ 2MP AHD Outdoor Dome, WDR, IR, IP66, IK10, 3.2-10mm, White | $228.11 | Add to Cart | |
| HCV-6080R | Hanwha Wisenet HD+ 2MP AHD Outdoor Dome, WDR, IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm | $227.15 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
HCV6080R Datasheet.pdf | 463KB | Download |
|
HCV6080R User Manual.pdf | 5MB | Download |
