POSMarket SKU: Z14803

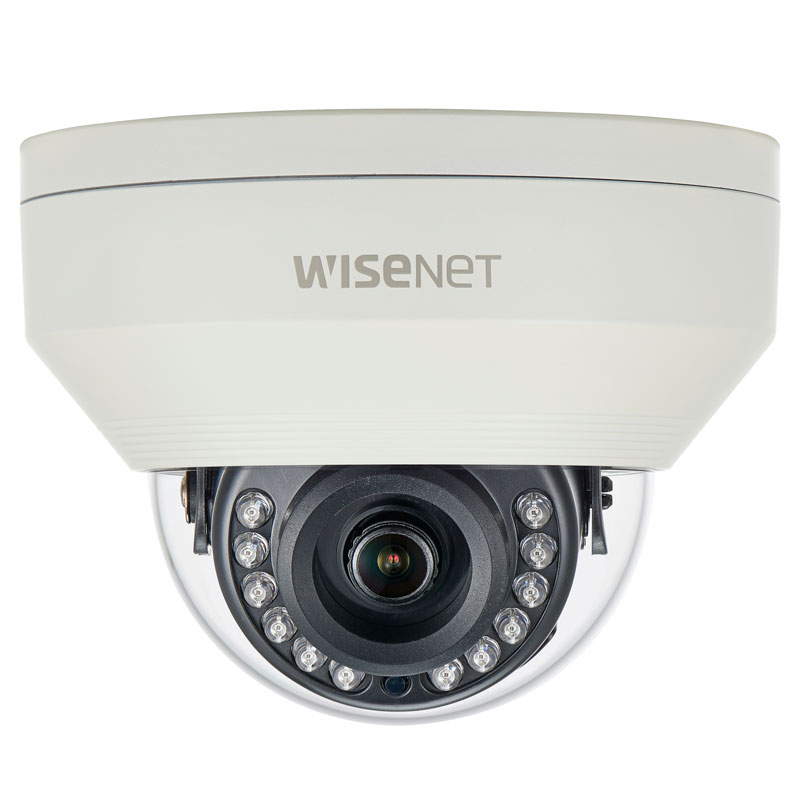

Hanwha Wisenet HD+ 4MP AHD Outdoor Dome
| Video | |
| Imaging Device | 1/3" 4M CMOS |
| Total Pixels | 2,720(H) x 1,536(V) |
| Effective Pixels | 2,688(H) x 1,520(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.26 Lux (F1.8) B/W : 0 Lux (IR LED on) |
| S / N Ratio | 52dB (AGC off, Weight on) |
| Video Output | BNC (AHD), Additional CVBS for installation (2Pin connector type) |
| Resolution | 2560 x 1440 |
| Max. Framerate | 25fps@4M |
| Pan/ Tilt/ Range/td> | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F1.8 |
| Angular Field of View | H : 107.48° / V : 59.67° / D : 122.01° |
| Min. Object Distance | 0.5m (1.64ft) |
| Lens Type | Fixed |
| Mount Type | Board-in Type |
| Operational | |
| On Screen Display | Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / User BLC / HLC |
| Wide Dynamic Range | D-WDR (Off / On) |
| Digital Noise Reduction | 2D DNR |
| Motion detection | Off / On (4 zones) |
| Privacy Masking | Off / On (2 zones rectangle) |
| Gain Control | Off / Low / Middle / High / Very High |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Electronic Shutter Speed | 1/25sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev |
| Remote Control Interface | Coaxial |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) |
| IR Distance | 20m (65.62ft) : |
| Video Transmission Distance | 500m (5C2V Coaxial cable) |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F)/ Less than 90% RH * Start up should be done at above -10°C (+14°F) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 12V DC ±10% |
| Power Consumption | Max. 5.0W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Dimensions (WxH) | Ø120.3 x 91.7mm (Ø4.74" x 3.61") |
| Weight | 510g (1.12 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| HCV-7010R | Hanwha Wisenet HD+ 4MP AHD Outdoor Dome, DWDR, 20m IR, IP66, IK10, 12VDC, 2.8mm | $137.64 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
HCV7010R Datasheet.pdf | 462KB | Download |
|
HCV7010R User Manual.pdf | 6MB | Download |
