Hikvision AE-VC011P-IRS
POSMarket SKU: Z14039
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

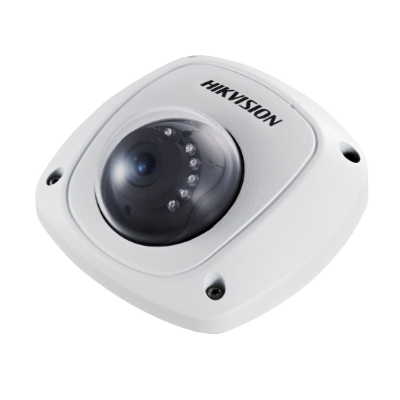

700TVL Mini Dome, Car / Bus only.
Product Overview
- AE-VC011P-IRS(2.8mm)
- AE-VC011P-IRS(3.6mm)
- AE-VC011P-IRS(6mm)
- Compact design
- DIS sensor
- Auto white balance, auto gain control and electronic shutter control
- OSD menu
- IR cut filter with auto switch
- Built-in microphone
- Aviation plug output
- Internal Synchronization
- 3-axis (pan/tilt/rotation) positioning allows adjustment for optimum surveillance angles and position
- Ingress Protection: IP65
- Impact Protection: IEC60068-2-75 test, Eh, 50J; EN50102, up toIK07
Product Specifications
| CAMERA | |
| Image Sensor | 2 megapixel progressive CMOS sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1964 (H) × 1116 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s (1/30 s) to 1/50,000 s |
| Lens | 3.6 mm (2.8 mm, and 6 mm are selectable) |
| Lens Mount | Ø 12 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30°to 30°, Tilt:0° to 75°, Rotate: -180°to 180° |
| Synchronization | Internal synchronization |
| Ture WDR | >120 dB |
| Video Frame Rate | 1080p@25fps, 1080p@30fps |
| S/N Ratio | > 62 dB | MENU |
| AGC | Low/Middle/High/OFF |
| Day/Night Mode | Color/BW/SMART |
| White Balance | Auto/Manual |
| BLC | Support |
| Language | Chinese/English |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| INTERFACE | |
| Video out | 1-ch, Aviation Port |
| Audio In | Built-in Microphone |
| Audio Out | 1-ch, Aviation Port (Linear Level, 1K) |
| Aviation Plug | Pin 1: Video, Pin 2: Audio, Pin 3: Power, Pin 4: GND |
| GENERAL | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 V DC+/-15% |
| Power Consumption | Max. 4 W/td> |
| Protection Level | IK 07 |
| IR Range | 10 m to 20 m |
| Dimension | Ø 97 mm × 99.5 mm x 46.6 mm( Ø 3.82" × 3.92" x 1.83") |
| Weight | Approx. 300 g (0.66 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AE-VC011P-IRS(2.8mm) | 2.8mm, 700TVL Mini Dome, Car / Bus only, Aviation Connectors, M12 | $110.69 | Add to Cart | |
| AE-VC011P-IRS(3.6mm) | 3.6mm, 700TVL Mini Dome, Car / Bus only, Aviation Connectors, M12 | $110.69 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
AEVC011PIRS data sheet.pdf | 334KB | Download |
|
AEVC011PIRS Quick start guide.pdf | 931KB | Download |
|
AE-VC011P-IRS User manual | 631KB | Download |
