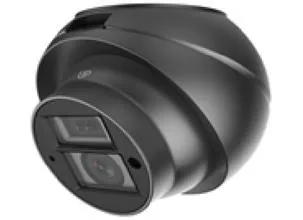

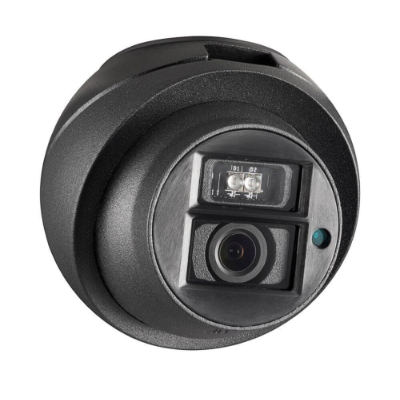

Hikvision AE-VC122T-IT
POSMarket SKU: Z14058
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
1080P 1/2.9" CMOS infrared array conch analog camera
Product Overview
Features
- IR Waterproof Vehicle-Mounted Camera
- Progressive scan CMOS
- Up to 720P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Adopts electronic shutter to adapt to different environment
- Supports auto gain control, self-adaption to light
- IP 68 protection level
- Adapts shock-proof design and aviation plug
Product Specifications
| CAMERA | |
| Image Sensor | Progressive Scan CMOS |
| Min. Illumination | 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 to 1/50,000 s |
| FOV | 2.1 mm, horizontal FOV 126°, vertical FOV 66°, diagonal FOV 154° 2.8 mm, horizontal FOV 96°, vertical FOV 51°, diagonal FOV 115° 3.6 mm, horizontal FOV 75°, vertical FOV 44°, diagonal FOV 90° |
| Lens Mount | M12 |
| Angle Horizontal: | 0 to 60°, vertical: 0 to 50°, rotate: 0 to 360° |
| Day & Night | Electronic |
| Frame Rate | 720p @25 fps |
| Synchronization | Internal |
| S/N Ratio | 42 dB |
| INTERFACE | |
| Video Output | 1, Vp-p Composite Output (aviation plug) |
| Aviation Pin Order | 1: Video; 2: Video grounding, 3:Power, 4: Grounding |
| GENERAL | |
| Working Temperature | -40°C to 75° C (-40 °F to 167 °F) |
| Working Humidity | ≤ 90% |
| Power Supply | 9 to 16 VDC |
| Power Consumption | Max. 2.5 W |
| IR Distance | 15 m |
| Protection Level | IP68 |
| Dimension 7 | 4 mm × 64.5 mm × 71.1 mm (2.91" × 2.54" × 2.80") |
| Weight | 200 g (0.44 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AE-VC122T-IT | 1MP TVI Mobile Flateye Camera, M12, 20m IR,IP68, 3.6mm | $157.85 | Add to Cart | |
| AE-VC122T-IT | 1.3MP TVI Mobile Camera, M12, 20m IR, IP68, 2.1mm | $157.85 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
AEVC122TIT Datasheet.pdf | 632KB | Download |
|
Mobile DVR Quick Start Guide | 931KB | Download |
|
VehicleMounted Camera User Manual.pdf | 208KB | Download |
