Hikvision AE-VC153T-IT
POSMarket SKU: Z14059
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

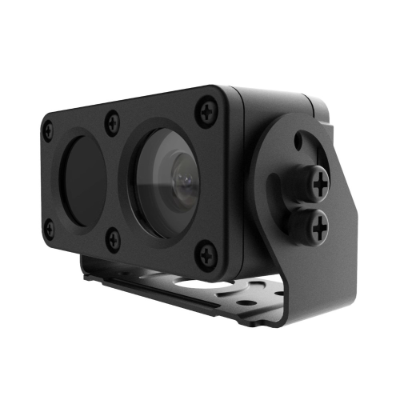

720P 1/2.9CMOS infrared array square analog camera
Product Overview
Features
- Progressive scan CMOS
- Up to 720P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP 68 protection level
Product Specifications
| Model | AE-VC153T-IT |
| CAMERA | |
| Image sensor | Progressive Scan CMOS |
| Signal system | PAL, NTSC |
| Min. illumination | 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time | 1/25s to 1/50,000 s |
| Lens | 3.6 mm (2.8 mm optional) |
| Lens mount | M 12 |
| Angle adjustment Tilt: | 0°to 90° |
| Day & Night | Electronic |
| Frame rate | 720P @ 25 fps |
| Synchronization | Internal |
| S/N ratio | > 62 dB |
| INTERFACES | |
| Video output | 1 Vp-p Composite Output (Aviation Plug) |
| Aviation plug order | 1 – Video, 2 – Grounding, 3 – Power, 4 - Grounding |
| GENERAL | |
| Working temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Working humidity | 90% |
| Power supply | 6 VDC to 16 VDC |
| Power consumption | Max. 2.5 W |
| IR range | 10 m to 20 m |
| Protection level | IP 68 |
| Dimension | (L x W x H) 83.2 mm x 46 mm x 41.6 mm (3.28 " x 1.81" x 1.64") |
| Weight 200 g | (0.0002 t) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AE-VC153T-IT | 1MP TVI Mobile Camera, M12, 10 - 20m IR, IP68, 3.6mm | $157.85 | Add to Cart | |
| AE-VC153T-IT | 1MP TVI Mobile Camera, M12, 10 - 20m IR, IP68, 2.1mm | $157.85 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
AEVC153TIT data sheet.pdf | 927KB | Download |
|
Mobile DVR Quick User Guide | 931KB | Download |
|
MVR User manual.PDF | 631KB | Download |
