POSMarket SKU: Z14047

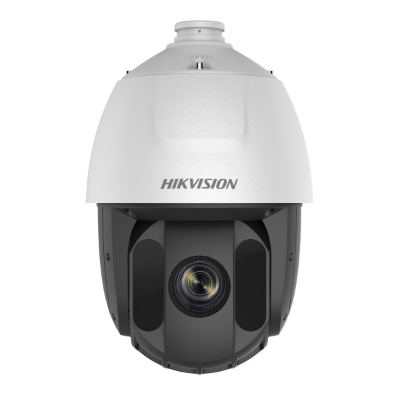

TVI 2MP Outdoor PTZ Dome Camera IR Turbo 5-Inch Speed
| CAMERA | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| max Image Resolution | 1920 x 1080 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| Frame Rate | 50Hz: 25fps @(1920 x 1080) 60Hz: 30fps @(1920 x 1080) |
| White Balance | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC | AUTO/MANUAL |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 8 programmable privacy masks |
| BLC (Backlight Compensation) | Yes |
| HLC (highlight Compensation | Yes |
| EIS (Electric Image Stabilization) | Yes |
| Reginal Focus | Yes |
| LENS | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | Focal Length |
| Aperture Range | Auto/Manual |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| INFRARED | |
| IR Distance | Up to 150 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| GENERAL | |
| Menu Language | English |
| Power | 24 VAC
Max.30 W (IR:10 W) |
| Working Temperature | -30° C to 65° C (-22° F to 149° F) |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| IR Range | Up to 60 m |
| Dimension | Ø 208 mm x 305 mm (Ø 8.19" x 12.01") |
| Weight | 3.3 kg (7.28 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2AE5225TI-A | TVI 2MP Outdoor PTZ Camera, 120dB WDR, 25x Zoom, 150m IR, IP66, 24VAC | $641.99 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1602ZJ | Wall Mount Bracket/ Pole Mount Bracket | $40.43 | View Product |
| Hikvision DS-1604ZJ | Wall Mount/ Vertical Pole Mount Bracket with Junction Box; | $108.57 | View Product |
| Hikvision DS-1663ZJ | In-ceiling mount | $28.88 | View Product |
| Hikvision DS-1602ZJ-Corner | Corner Mount Bracket | $60.06 | View Product |
| Hikvision DS-1662ZJ | Pendant Bracket | $51.98 | View Product |
| Hikvision DS-1604ZJ-BOX-Corner | Corner Wall Mount with Junction Box | $177.87 | View Product |
| Hikvision DS-1604ZJ-Pole | Vertical Pole Mount | $122.43 | View Product |
| Hikvision DS-1619ZJ | Swan neck bracket for PTZ dome cameras | $160.55 | View Product |
| Hikvision DS-1604ZJ-BOX-POLE | Vertical Pole Mount for Speed Dome | $177.87 | View Product |
| Hikvision DS-1661ZJ-P | Pendant Mount Bracket | $54.29 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS2AE5225TIA.pdf | 734KB | Download |
|
DS2AE5225TIA user manual.pdf | 834KB | Download |
