POSMarket SKU: Z14051

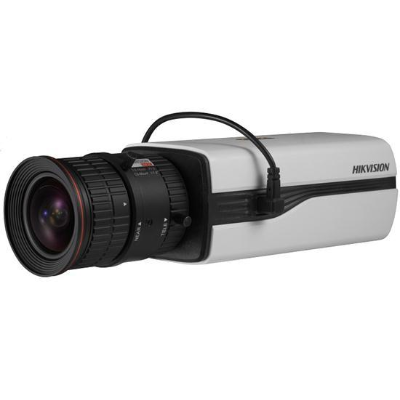

2MP Box Camera
| CAMERA | |
| Image Sensor | 2MP CMOS Image Senso |
| Signal System | PAL/NTSC |
| Effective pixel | 1944(H)x 1092(V) |
| Min. Illumination | Color : 0.01 Lux @(F1.2,AGC ON); B/W : 0.001 Lux @(F1.2,AGC ON) |
| Shutter Time | 1/25(1/30)s to 1/50,000s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Auto-iris | DC drive |
| Lens Mount | C/CS mount |
| Day & Night | IR cut filter |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | ≥ 120 dB |
| MENU | |
| AGC | Yes |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| 3D DNR | Level 1 to 9 |
| Privacy Mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable areas |
| Language | English |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| INTERFACE | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| GENERAL | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 9 VDC to 15 VDC
-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Power Consumption | Max. 7.4 W
-A: Max. 10.5 W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 80 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 885 g (1.95 lb.)
-A: Approx. 930 g (2.05 lb.) (1.41 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CC12D9T-A | TVI 2MP Box Camera C/CS Mount Lens, WDR UTC, (3MP Lens Recommended) | $215.60 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-XS | Junction Box for Dome (Bullet) Camera | $24.26 | View Product |
| Hikvision DS-1292ZJ | Indoor Wall Mount Bracket for Full Body Cameras | $19.64 | View Product |
| Hikvision DS-1331HZ-C | Outdoor Housing with Fan | $200.97 | View Product |
| Hikvision DS-1331HZ-HW | Outdoor Housing with heater, fan, wiper | $236.78 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS2CC12D9TA.pdf | 737KB | Download |
