Hikvision DS-2CC12D9T-AIT3ZE
$263.73 (incl. GST)
POSMarket SKU: Z14052

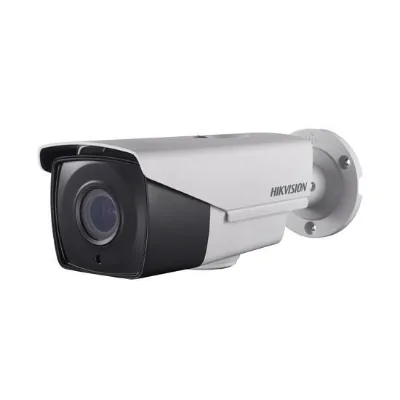

DS-2CC12D9T-AIT3ZE: TVI 2MP Outdoor IR Bullet Camera, WDR, PoC, IP67, CVBS, 2.8-12mm
2MP Outdoor Ultra-Low Light PoC Bullet Camera.
Product Overview
The Hikvision DS-2CC12D9T-AIT3ZE 2 MP Outdoor Ultra-Low Light Power-over-Coax (PoC) Bullet Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
Features
Features
- 2MP progressive scan CMOS
- Analogue output, up to 1080p resolution
- 2.8 to 12mm motorised vari-focal lens
- OSD menu
- 120 dB true WDR
- Semi-auto focus
- EXIR 2.0, up to 40 m IR distance
- 1x alarm I/O
- PoC
- Up the Coax (HIKVISION-C)
- IP67 rating
Product Specifications
| CAMERA | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Resolution | 1920 (H) x 1080 (V) |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Max.: 30 times |
| Lens | 2.8 mm to 12 mm |
| Horizontal Field of View | 32.1°to 98° |
| Lens Mount | Φ 14 |
| Day & Night | IR cut filter |
| Angle Adjustment | (Bracket) Pan: 0°to 360°, Tilt: 0°to 90°, Rotate: 0°to 360° |
| Synchronization | Internal synchronization |
| WDR | > 120 dB |
| Menu | |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (White & Black) |
| White Balance | ATW/AWC-SET/MANUAL |
| Privacy Mask | ON/OFF, 8 programmable privacy masks |
| Motion | 4 programmable motion areas |
| Backlight Compensation | WDR/BLC/HLC/OFF |
| 2D & 3D DNR | ON/OFF |
| Voltage Detection | Support |
| Functions | Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title |
| Scene | Indoor/outdoor/indoor1/low light |
| INTERFACE | |
| Video Output | 1 HD analog output/1 Vp-p composite output (75Ω/BNC) |
| Alarm | 1 alarm in/out |
| GENERAL | |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (no condensation) |
| Power Supply | 24 V AC/12 V DC +/-30%/PoC.at |
| Ingress Protection | IP67 |
| IR Distance | Up to 40 m |
| Power Consumption | Max.: 7.5 W |
| Communication | Up the coax, Protocol: HIKVISION-C |
| Dimensions 9 | 2 mm x 85.3 mm x 269.6 mm (3.62"x 3.36" x 10.61") |
| Weight | Approx. 700 g (1.54 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CC12D9T-AIT3ZE | TVI 2MP Outdoor IR Bullet Camera, WDR, PoC, IP67, CVBS, 2.8-12mm | $263.73 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-S | Junction Box with Gland, white or black | $40.43 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CC12D9TAIT3ZE Data sheet.pdf | 710KB | Download |
|
DS2CC12D9TAIT3ZE Quick start guide.pdf | 704KB | Download |
|
DS2CC12D9TAIT3ZE User manual.pdf | 4MB | Download |
