Hikvision DS-2CC52D9TAVIZ
$282.01 (incl. GST)
POSMarket SKU: Z14033

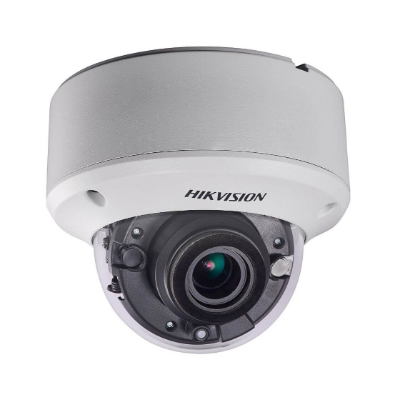

DS-2CC52D9T-AVPIT3ZE: Hikvision TVI 2MP Outdoor IR Dome Camera, WDR, PoC, Ultra Low-light, IP67, CVBS,2.8-12mm
TVI 2MP Outdoor IR Dome Camera, WDR, PoC, Ultra Low-light.
Product Overview
The Hikvision DS-2CC52D9TAVIZ or HIK-2CC52D9T-AVPIT3ZE 2 MP Outdoor Ultra-Low Light Power-over-Coax (PoC) Dome Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
Features
Features
- 2MP progressive scan CMOS
- Analogue HD output, up to 1080p resolution
- 2.8 to 12 mm motorised vari-focal lens
- OSD menu
- 120 dB true WDR
- Semi-auto focus
- EXIR 2.0, up to 40 m IR distance
- 1x alarm I/O
- PoC
- Up the Coax (HIKVISION-C)
- IP67, IK10 ratings
Product Specifications
| CAMERA | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Resolution | 1920 (H) x 1080 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Frame Rate | PAL: 1080p@25fps
NTSC: 1080p@30fps |
| Shutter Time | PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm to 12 mm |
| Horizontal Field of View | 32.1° to 98° |
| Lens Mount | Ø 14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | ≥ 120 dB |
| MENU | |
| AGC | Support |
| White Balance | ATW/AWC-SET/MANUAL |
| Backlight Compensation | WDR/BLC/HLC/OFF |
| Privacy Mask | 4 programmable privacy masks |
| Motion | 4 programmable areas |
| 2D & 3D DNR | ON/OFF |
| Voltage Detection | Support |
| Functions | Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title |
| Scene | Indoor/outdoor/indoor 1/low light |
| INTERFACE | |
| Video Output | 1 HD analog output/1 Vp-p composite output (75 ohms/BNC) |
| Alarm | 1 alarm in/out |
| GENERAL | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 24 V AC/12 V DC +/-30%/PoC.at |
| Power Consumption | Max.: 6 W |
| Protection Level | IP67, IK10 |
| Communication | Up the coax, Protocol: HIKVISION-C |
| IR Distance | Up to 40 m |
| Dimension | Ø 145.2 mm × 124.1 mm ( Ø 7.1" × 4.9") |
| Weight | Approx. 2000 g (4.4 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CC52D9T-AVPIT3ZE | Hikvision TVI 2MP Outdoor IR Dome Camera, WDR, PoC, Ultra Low-light, IP67, CVBS,2.8-12mm | $282.01 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1271ZJ-140 | Pendant Mount Bracket | $87.78 | View Product |
| Hikvision DS-1273ZJ-140 | Wall Mounting Bracket for Dome Camera. | $35.81 | View Product |
| Hikvision DS-1273ZJ-140B | Wall Mount Bracket with Junction Box | $77.39 | View Product |
| Hikvision DS-1250ZJ | Water-proof shade for Outdoor Dome Camera | $17.33 | View Product |
| Hikvision DS-1253ZJ-L | Rain Shade for Outdoor Dome Camera | $31.19 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CC52D9TAVPIT3ZE data sheet | 1000KB | Download |
|
DS2CC52D9TAVPIT3ZE Quick start guide | 704KB | Download |
|
DS2CC52D9TAVPIT3ZE User manual | 4MB | Download |
