Hikvision DS-2CE16U7T-IT3F
POSMarket SKU: Z14053
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

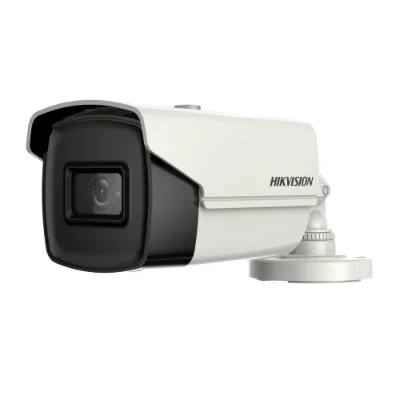

4K Ultra Low Light Fixed Bullet Camera
Product Overview
Features
- 8.29 MP, 3840 x 2160 resolution
- Ultra-low light
- 130 dB true WDR, 3D DNR
- 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Smart IR, up to 60 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
Product Specifications
| CAMERA | |
| Image Sensor | 8.29 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: [email protected], 8MP@15fps CVI: [email protected], 8MP@15fps CVBS: P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 sNTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens |
| Horizontal Field of View | 102°(2.8 mm), 79° (3.6 mm), 51° (6 mm), 38°(8 mm), 24°(12 mm) |
| Lens Mount | M16 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | ≥ 130 dB |
| Angle Adjustment | (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| MENU | |
| Image Mode | STD/HIGH-SAT |
| AGC | Yes |
| Day/Night | Mode Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) | Mode Global/BLC/HLC/WDR |
| Noise Reduction | 3D DNR |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| INTERFACE | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| GENERAL | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC +/-25%* You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 4.2 W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 60 m |
| Communication | HIKVISION-C |
| Dimensions | 81.9 mm x 86.7 mm x 217.9 mm (3.22" x 3.41" x 8.58") |
| Weight | Approx. 560 g (1.23 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CE16U7T-IT3F | TVI4.0 8MP Outdoor Bullet Camera, WDR, 60m IR, 4 in 1, IP67, 12VDC, 2.8mm | $161.70 | Add to Cart | |
| DS-2CE16U7T-IT3F | TVI4.0 8MP Outdoor Bullet Camera, WDR, 60m IR, 4 in 1, IP67, 12VDC, 3.6mm | $161.70 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-XS | Junction Box for Dome (Bullet) Camera | $24.26 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
TURBO HD U7T Series Bullet Camera User Manual.pdf | 1MB | Download |
|
DS2CE16U7TIT3Fx datasheet.pdf | 1MB | Download |
|
DS2CE16U7TIT3Fx Quick Start guide.pdf | 704KB | Download |
Product Videos
