Hikvision DS-2CE57U7T-VPITF
$161.70 (incl. GST)
POSMarket SKU: Z14055

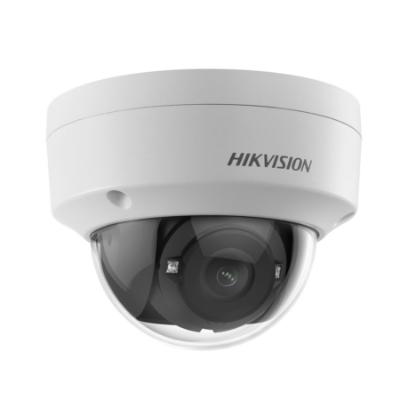

DS-2CE57U7T-VPITF: TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm
4K Ultra Low Light Vandal Fixed Dome Camera
Product Overview
Hikvision's DS-2CE57U7T-VPITF also known as HIK-2CE57U7PITF2 is an outdoor dome camera that produces exceptional 8MP high resolution video images over coaxial cable. This camera is part of Hikvision's TVI 4.0 range and provides an ideal solution for the upgrade of existing analogue sites to high definition surveillance without the need to re-cable. The inbuilt EXIR technology delivers unparalleled clarity at night for up to 30m and with an option of 2.8 mm, 3.6 mm, 6 mm fixed lens , this camera is great for covering wide areas providing clear focus on the detail that is really required.
Features
Features
- 8 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0, advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Product Specifications
| CAMERA | |
| Image Sensor | 8.29 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: [email protected], 8MP@15fps CVI: [email protected], 8MP@15fps CVBS: P/N |
| Resolution3840 | (H) x 2160 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Horizontal Field of View | 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm) |
| Lens Mount | M16 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | ≥ 130 dB |
| Angle Adjustment Pan: | 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| MENU | |
| Image Mode | STD/HIGH-SAT |
| AGC | Yes |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) | Mode Global/BLC/HLC/WDR |
| Noise Reduction | 3D DNR |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| INTERFACE | |
| Video Output Switchable | TVI/AHD/CVI/CVBS |
| MENU | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 4.2 W |
| Protection Level | IP67, IK10 |
| Material | Metal |
| IR Range | Up to 30 m |
| Communication | HIKVISION-C |
| Dimensions | Φ 110.8 mm × 84.7 mm (Φ 4.4" × 3.3") |
| Weight | Approx. 480 g (1.06 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CE57U7T-VPITF | TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm | $161.70 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1280ZJ-DM18 | Junction Box for Dome Camera | $19.64 | View Product |
| Hikvision DS-1271ZJ-110 | Pendant Mount Bracket | $65.84 | View Product |
| Hikvision DS-1272ZJ-110B | Dome camera wall mounting with junction box | $60.06 | View Product |
| Hikvision DS-1259ZJ | Junction- Inclined ceiling mount | $8.09 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
| Hikvision DS-1272ZJ-110 | Dome camera aluminum wall mount bracket | $34.65 | View Product |
| Hikvision DS-1258ZJ | Wall Mount Bracket for mini dome or dome camera, black or white | $13.86 | View Product |
| Tensor CSD-T1210-21G | 12V DC 1000mA SM power supply unit | $30.80 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
DS2CE57U7TVPITF datasheet | 1MB | Download |
|
DS2CE57U7TVPITF quick start guide | 704KB | Download |
|
Turbo HD Series Turret Dome Camera User Manual | 1MB | Download |
