POSMarket SKU: Z14065

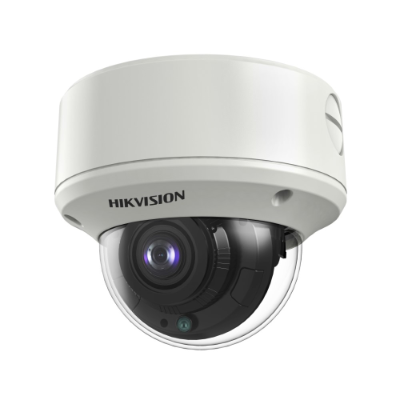

4K Ultra Low Light Vandal Motorized Varifocal Dome Camera
| CAMERA | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Frame Rate TVI: | 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N |
| Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination Color: | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time PAL: | 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s |
| Lens | 2.7 mm to 13.5 mm motorized varifocal lens |
| Horizontal Field of View | 108.1°to 45.6° |
| Lens Mount | Φ14 |
| Day & Night | IR cut filter |
| Angle Adjustment Pan: | 0°to 355°; Tilt: 0°to 75°; Rotate: 0°to 355° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | ≥ 130 dB |
| MENU | |
| AGC | Yes |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| BLC | Yes |
| WDR | Yes |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| INTERFACE | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| GENERAL | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Power Consumption | Max. 8.2 W |
| Protection Level | IP67, IK10 |
| Material | Metal |
| IR Range | Up to 60 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | Ø 145.2 mm × 124.1 mm (Ø 7.1" × 4.9") |
| Weight | Approx. 640 g (1.41 lb.) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-2CE59U7T-AVPIT3ZF | TVI4.0 8MP Outdoor Dome Camera, WDR, 60m IR, 4 in 1, IP67, VDC/VAC, 2.7 - 13.5mm | $328.21 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Hikvision DS-1271ZJ-140 | Pendant Mount Bracket | $87.78 | View Product |
| Hikvision DS-1273ZJ-140 | Wall Mounting Bracket for Dome Camera. | $35.81 | View Product |
| Hikvision DS-1273ZJ-140B | Wall Mount Bracket with Junction Box | $77.39 | View Product |
| Hikvision DS-1250ZJ | Water-proof shade for Outdoor Dome Camera | $17.33 | View Product |
| Hikvision DS-1253ZJ-L | Rain Shade for Outdoor Dome Camera | $31.19 | View Product |
| Hikvision DS-1275ZJ-SUS | Horizontal Pole Mount | $58.91 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DS2CE59U7TAVPIT3ZF Data Sheet.pdf | 1MB | Download |
|
DS2CE59U7TAVPIT3ZF Quick Start Guide.pdf | 704KB | Download |
|
U7T Series VF Dome Camera User Manual | 2MB | Download |
