POSMarket SKU: Z18362

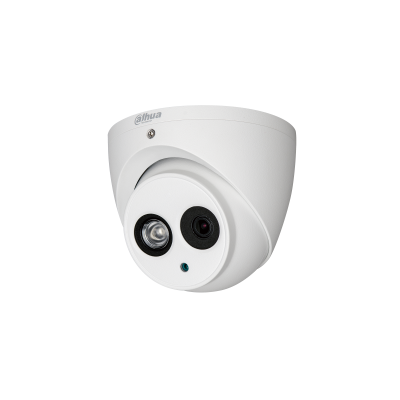

4K HDCVI IR Eyeball Camera
| HAC-HDW1801EM/EM-A | |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 3840 (H) x 2160 (V), 4K |
| Electronic Shutter Speed | PAL: 1/3s-1/100000s NTSC: 1/4s-1/100000s |
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| IR Distance | Distance up to 50m (164.04ft) |
| IR On/Off Control | Auto; manual |
| IR LED Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6mm; 6mm |
| Max. Aperture | F2.0 |
| Angle of View | 3.6mm: 104°×87°×47°
(diagonal x horizontal x vertical) 6mm: 62.4°×54.7°×31.3° (diagonal x horizontal x vertical) |
| Iris type | Fixed Iris |
| Close Focus Distance | 1.8m/3.6m (3.28ft/5.91ft/11.81ft) |
| DORI Distance | Lens |
Detect Observe Recognize Identify | 3.6mm 107m (351ft) 43m (141ft) 21m (69ft) 11m (36ft) |
| 6mm 160m (525ft) 64m (210ft) 32m (105ft) 16m (52ft) | |
| Video | |
| Video Frame Rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960× 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR |
| WDR | 120dB/WDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D&3D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 4X |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Audio Port | Built-in mic (-A) |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12V +/-30% DC |
| Power Consumption | Max 4.5W (12V DC, IR on) |
| Environment | |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F ); <95% (non-condensation) |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F ); <95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Dimensions | Φ106mm×93.6mm (Φ4.17"×3.69" ) |
| Net Weight | 470g (1.04lb) |
| Gross Weight | 620g (1.37lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DH-HAC-HDW1801EMP-A0360B | 4K HDCVI IR Eyeball Camera | $90.75 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
HACHDW1801EMEMA Datasheet.pdf | 637KB | Download |
|
HDCVI Eyeball Camera Installation Guide.pdf | 3MB | Download |
|
HDCVI Camera Users Manual.pdf | 1MB | Download |
