POSMarket SKU: Z18363

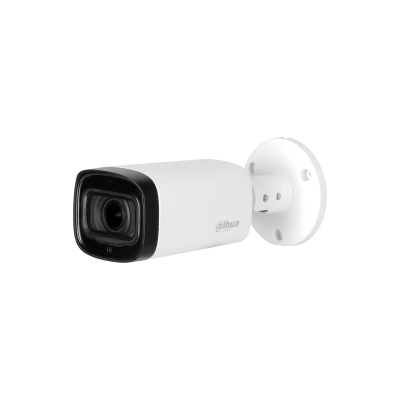

4MP HDCVI IR Bullet Motorized ZOOM Camera.
| Camera | |
| Image Sensor | 1/2.7'' CMOS |
| Effective Pixels | 2560(H)×1440(V), 4MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.03Lux/F1.8, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | 60m (197feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Motorized lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.7-13.5mm |
| Max Aperture | F1.3 |
| Angle of View | H: 92 Deg - 29 Deg V: 49 Deg - 16 Deg |
| Focus Control | Auto / Manual |
| Close Focus Distance | 800mm 31.50'' |
| Video | |
| Resolution | 4MP (2560×1440) |
| Frame Rate | 25/30fps@4MP, 25/30/50/60fps@1080P |
| Video Output | 1-channel BNC HDCVI high definition video output And 1-channel BNC CVBS video outputoutput (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Eelectrical | |
| Power Supply | 12V DC +/-25% |
| Power Consumption | Max 3.2W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -30 C - +60 C (-22 F - +140 F) /Less than 90% RH * Start up should be done at above -30 C (-22 F) |
| Storage Conditions | -30 C - +60 C (-22 F - +140 F) /Less than 90% RH |
| Ingress Protection And Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 122mm×104.9mm (4.8''×4.13'') |
| Net Weight | 0.55kg (1.21lb) |
| Gross Weight | 0.70kg (1.54lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| HAC-HFW1400R-Z-IRE6 | 4MP HDCVI IR Bullet Motorized ZOOM Camera | $111.17 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
DH-HAC-HDW1400TLMQ-A Datasheet | 610KB | Download |
