Axis M1135-E

$1,050.50 (incl. GST)

POSMarket SKU: Z14837

01772-001: M1135-E Network Camera, 1080p, Zipstream, WDR, PoE, IP66, IK10, 3-10.5mm Lens

Axis M11-E Series, Outdoor-ready 2 MP premium affordable surveillance.

Product Rating
Product Overview

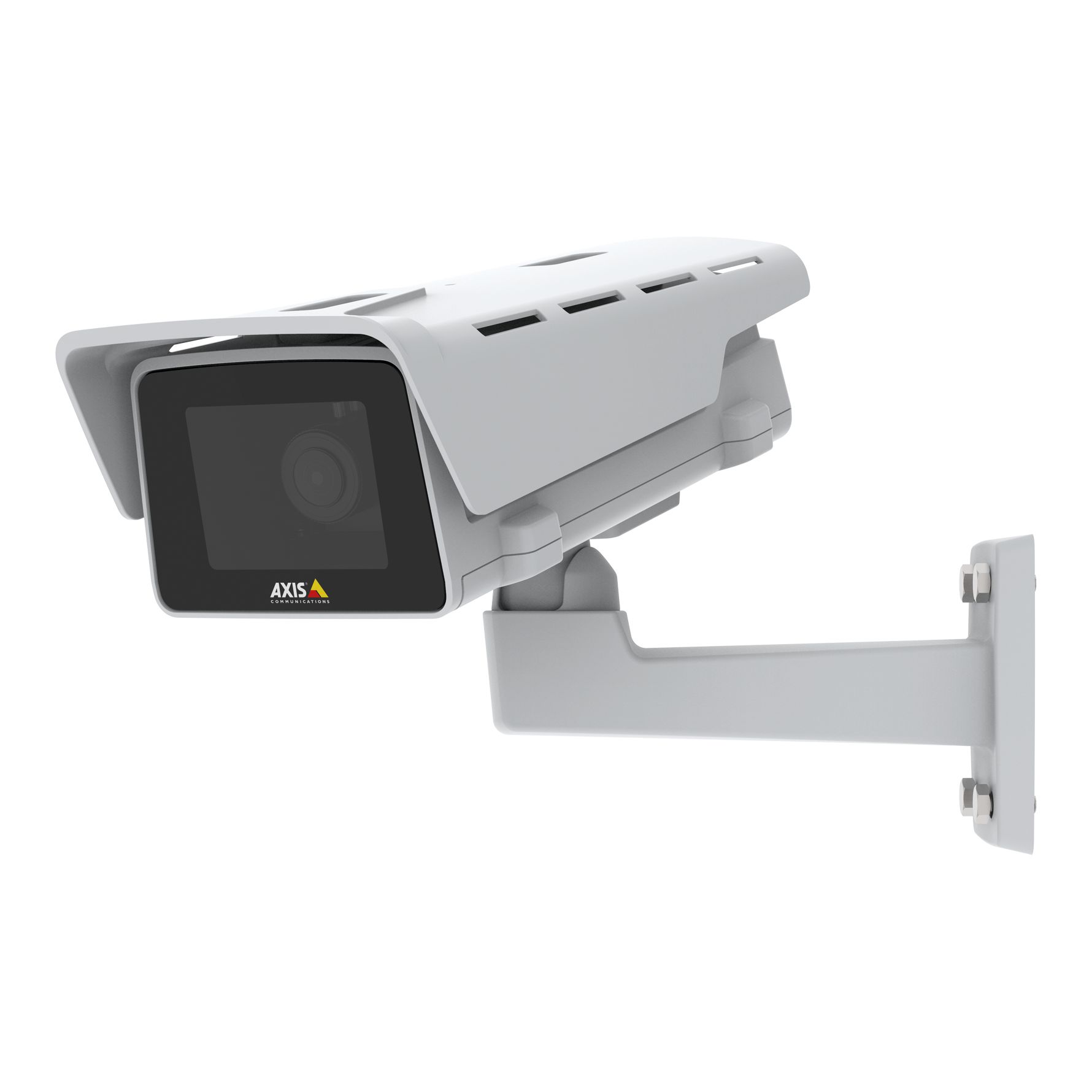

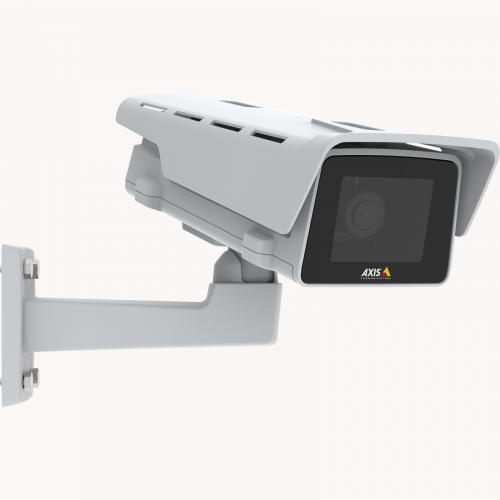

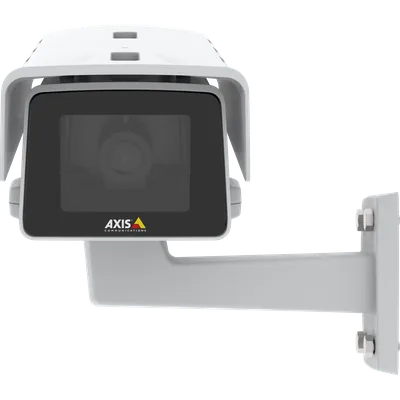

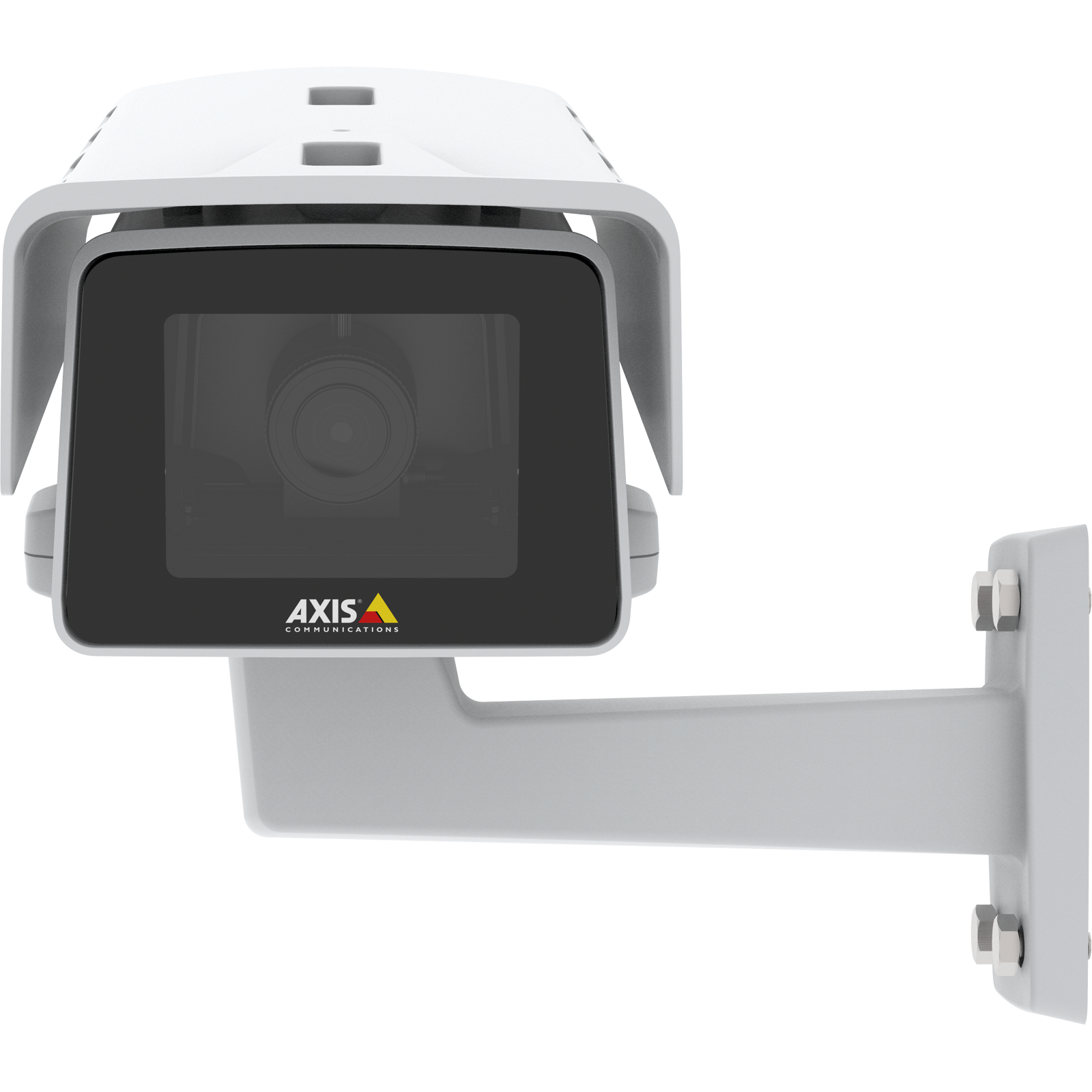

The Axis M1135-E/ AXIS-01772-001 is a compact, outdoor-ready network camera that delivers excellent image quality in 2 MP resolution. Designed as a visible deterrent, it helps discourage trespassing and criminal behaviour. It offers flexible, installation making it ideal for various industrial or commercial surveillance situations. This camera supports PoE and
redundant DC power, so your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis
Forensic WDR it delivers true colors and great details in challenging light or near darkness. It includes a CS-mount
allowing you to easily change lens to meet your specific requirements. Plus, audio input lets you record video with
sound. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements and
enhanced security features ensures the integrity and authenticity of the firmware.

This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

FEATURES
  • WDR Forensic Capture
  • Zipstream technology
  • Lightfinder
  • Exchangable CS mount lens
  • Audio input
  • IP66
Product Specifications
Camera
Sensor 2 MP 1/3" CMOS
Lens Mount CS
Focal Length 3 to 10.5mm
Maximum Aperture f/1.4
Zoom Optical: 3.5x
Lens Field of View Horizontal: 90 to 33°
Vertical: 49 to 19°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.1 Lux
B&W: 0.02 Lux
Shutter Speed 1/33,500 to 2 Seconds
Video
Streaming Resolution 1920 x 1080 at 30 fps
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes
Automatic Gain Control Yes
Audio
1- or 2-Way Audio One-Way
Audio Formats AAC-LC, G.711, G.726, LPCM, Opus
Built-In Mic No
External Audio Input 3.5 mm
Networking
Security Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log
Supported Protocols ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6
System Integration
Application Programming Interface (API) Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform
AXIS Guardian with One-Click Connection
ONVIF Profiles G, S, and T
Analytics Included
AXIS Video Motion Detection, Active Tampering Alarm
Supported
AXIS Camera Application Platform Enabling Installation of Third-Party Applications
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Built-In Installation Aids Pixel Counter
Environmental
Operating Temperature -13 to 122°F / -25 to 50°C
Startup Temperature -4°F / -20°C
Storage Temperature -40 to 149°F / -40 to 65°C
Operating Humidity 10 to 100%
IP Rating IP66
IK Rating IK10
General
Memory 512 MB RAM / 512 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
Pan/Tilt None
Alarm I/O None
I/O Connections 1 x RJ45
1 x Power
1 x 4-Pin Terminal Block
1 x 2-Pin Terminal Block
Video Management Software AXIS Companion
AXIS Camera Station
Video Management Software from Axis Application Development Partners
Internal Storage None
External Storage Options NAS
Power Source DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
Power Consumption PoE: 4.1 W
DC: 3.8 W
Material of Construction Polymer
Dimensions H: 5.6 x W: 9.4 x L: 14.6" / H: 143.0 x W: 240.0 x L: 372.0 mm
Weight 3.97 lb / 1.8 kg
ModelDescriptionPriceStock
01772-001 M1135-E Network Camera, 1080p, Zipstream, WDR, PoE, IP66, IK10, 3-10.5mm Lens $1,050.50
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document M1135E Data Sheet.pdf 310KB Download
PDF Document M11 Series User Manual.pdf 618KB Download
