POSMarket SKU: Z14857
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

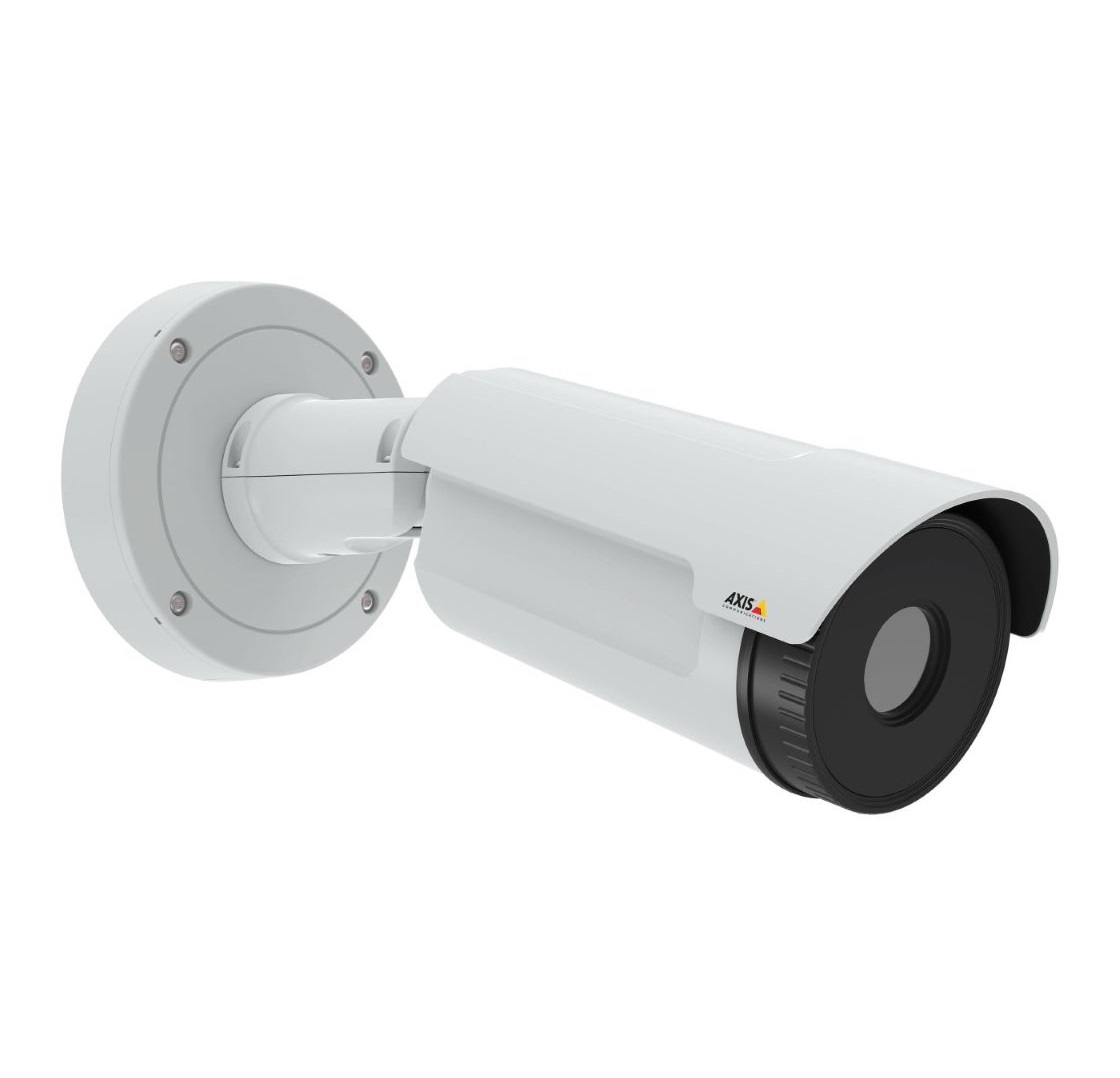

Axis' Temperature Alarm Camera for remote temperature monitoring.
| Camera | |
| Image Sensor | Uncooled microbolometer; 336 x 256 |
| Pixel Size: | 17 µm |
| Spectral Range: | 8 to 14µm |
| Lens | 9 mm, 8.3 fps |
| Sensitivity | NETD < 50 mK |
| Thermal Camera Core | |
| Temperature Range | Object: -40 to 1022°F (-40 to 550°C) |
| Accuracy | Temperature: Below 212°F (100°C): ±9°F (5°C) accuracy Below 302°F (150°C): ±5% accuracy Above 302°F (150°C): ±20% accuracy |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) main and baseline profile, motion JPEG |
| Resolutions | Sensor is 336 x 256; image can be scaled up to 720 x 576 |
| Frame Rate | Up to 8.3 fps |
| Video Streaming | 3 individual streams in H.264 and Motion JPEG: Simultaneous, individually configured streams in maximum resolution at 8.3 fps (individual palette cannot be set per video stream) Controllable frame rate and bandwidth VBR/CBR H.264 |
| Image Settings | Sharpness, automatic gain control, exposure zones, gain, rotation, palette, isothermal palette, compression, mirroring, text and image overlay, axis' corridor format |
| Audio | |
| Audio Streaming | Two-way |
| Audio Compression | AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate |
| Audio Input/Output | External microphone or line input, line output |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management |
| Supported Protocols | IP v4/v6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis camera application platform |
| Intelligent Video | Video motion detection, active tampering alarm, audio detection, support for Axis camera application platform enabling installation of Axis video motion detection 3, Axis cross line detection, Axis digital auto-tracking and third-party applications |
| Event Trigger | Intelligent video, audio, temperature detection, hardware temperature and external input, edge storage events, shock detection, time scheduled |
| Event Action | File upload: FTP, HTTP, network share and email Notification: Email, HTTP and TCP, status LED, text overlay, audio clips, SNMP, external output activation, pre- and post-alarm video buffering, video and audio recording to edge storage, network share |
| Data Streaming | Event data |
| General | |
| Casing | IP66- and IP67-rated metal casing (aluminum) with integrated dehumidifying membrane and a germanium window |
| Memory | 256 MB RAM, 128 MB Flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at type 1 class 3, maximum 10 W, 8 to 20 VDC, maximum 11 W or 20 to 24 VAC 50/60 Hz, maximum 15 VA (power supply not included) |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE, terminal block for power eight circuit PCB header for two configurable inputs/outputs and audio |
| Edge Storage | microSD / microSDHC / microSDXC slot supporting memory card up to 64 GB (card not included) Support for recording to dedicated network-attached storage (NAS) |
| Operating Conditions | Temperature: -40 to140°F (-40 to 60°C) Humidity: 10 to 100% RH (condensing) |
| Dimensions | 13.5 x 5.7 x 4.8"(34.4 x 14.5 x 12.1 cm) |
| Weight | 4.4 lb (2.0 kg) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 0645-001 | Q2901-E Bullet Camera, Temperature Alarm, H.264, IP66, 9mm, 35deg Fixed Lens | $10,520.13 | Add to Cart | |
| 0646-001 | Q2901-E Bullet Camera, Temperature Alarm, H.264, PT Mount, 9mm, 35deg Fixed Lens | $10,520.13 | Add to Cart | |
| 0648-001 | Q2901-E Bullet Camera, Temperature Alarm ,H.264, PT Mount, 19mm, 35deg Fixed Lens | $10,520.13 | Add to Cart | |
| 0647-001 | Q2901-E Bullet Camera, Temperature Alarm, H.264, IP66, 19mm, 17deg Fixed Lens | $10,520.13 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Q2901E Data Sheet.pdf | 289KB | Download |
|
Q2901E User Manual.pdf | 2MB | Download |
