Camera | |
Image Sensor | 1/1.8" progressive scan RGB CMOS sensor |
Focal Length | 4.1-9mm |
Control | Remote focus and zoom, P-iris control, IR corrected |
Field of View | 6 MP Horizontal: 101-46° 4 MP 16:9 Horizontal: 90-41° 6 MP Vertical: 66-30° 4 MP 16:9 Vertical: 49-23° |
Day/Night | Automatic, removable IR cut filter |
Minimum Illumination | Color: 0.18 lux at 50 IRE, f/1.6 B/W: 0.03 lux at 50 IRE, f/1.6 |
Shutter Speed | 1/100,000 to 2 sec |
Adjustments | Pan: 370° Tilt: +/-81° Roll: +/-110° |
Video | |
Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles MJPEG |
Resolution | 3072 x 2048 to 160 x 90 |
Frame Rates | 6 MP (3072 x 2048) without WDR: 20 fps 4 MP 16:9 (2720 x 1536) or 4:3 (2304 x 1728) with WDR: 25/30 fps with power line frequency 50/60 Hz |
Streaming | Multiple, individually configurable streams in H.264 and MJPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
Multi-View Streaming | Up to 4 individually cropped out view areas |
Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zone, noise reduction, fine tuning of behavior at low light, rotation (0, 90, 180, 270° and corridor format), text and image overlay, privacy mask, mirroring of images, Electronic Image Stabilization (EIS), barrel distortion correction |
Wide Dynamic Range (WDR) | up to 115 dB |
ePTZ | 2.2x optical zoom and 2x digital zoom Digital PTZ Optical zoom and digital PTZ preset positions |
Network | |
Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, Centralized Certificate Management |
Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
System Integration | |
Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform, Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S |
Analytics | Axis Video Motion Detection 3, active tampering alarm, support for Axis Camera Application Platform enabling installation of Axis Perimeter Defender, Axis Digital Autotracking, and third-party applications |
Event Trigger | Analytics, edge storage events, shock detection |
Event Action | File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: Email, HTTP, HTTPS, and TCP Video recording to edge storage, pre- and post-alarm video buffering, zoom or digital PTZ preset, overlay text, send SNMP trap |
Data Streaming | Event data |
Built-In Installation Aids | Pan/Tilt/Roll: Designed to withstand at least 200 full cycles Autoroll, remote zoom, remote focus, pixel counter |
General | |
Casing | IP66-, IP67-, IP6K9K-, IK10-, and NEMA-4X-rated casing with polycarbonate dome, aluminum base and dehumidifying membrane |
Sustainability | PVC-free |
Memory | 1 GB RAM, 256 MB flash |
Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
Power Consumption | Typical: 6.1 W Maximum: 11.4 W |
Connectors | RJ45 10Base-T/100Base-TX PoE |
Storage | Support for microSD/SDHC/SDXC card (available separately) Support for recording to dedicated network-attached storage (NAS) (available separately) |
Operating Temperature | -40 to 140°F (-40 to 60°C) |
Operating Humidity | 10-100% RH, condensing |
Storage Temperature | -40 to 149°F (-40 to 65°C) |
Video Management Software | Axis Camera Companion, Axis Camera Station, video management software from Axis Application Development Partners |
Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |

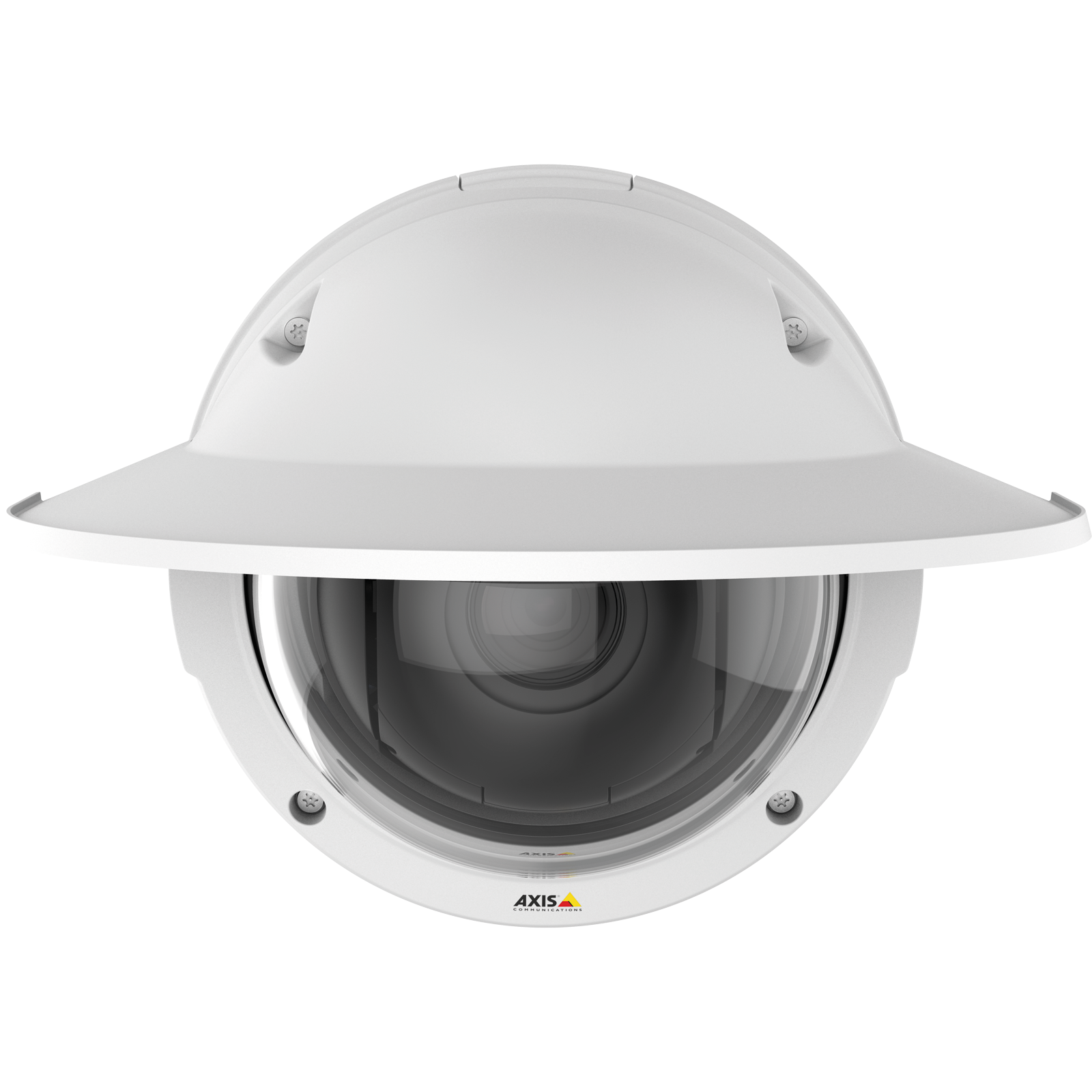

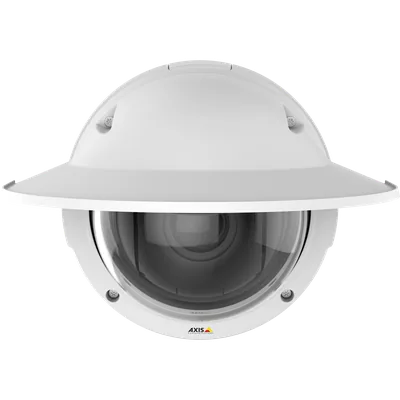

Dimensions | Without Weather Shield: 6.5 x 7.8" (166 x 198 mm) With Weather Shield: 8.8 x 7.8" (224 x 198 mm) |
Weight | With Weather Shield: 5.1 lb (2.3 kg) |
Model | Description | Price | Stock | |
---|---|---|---|---|

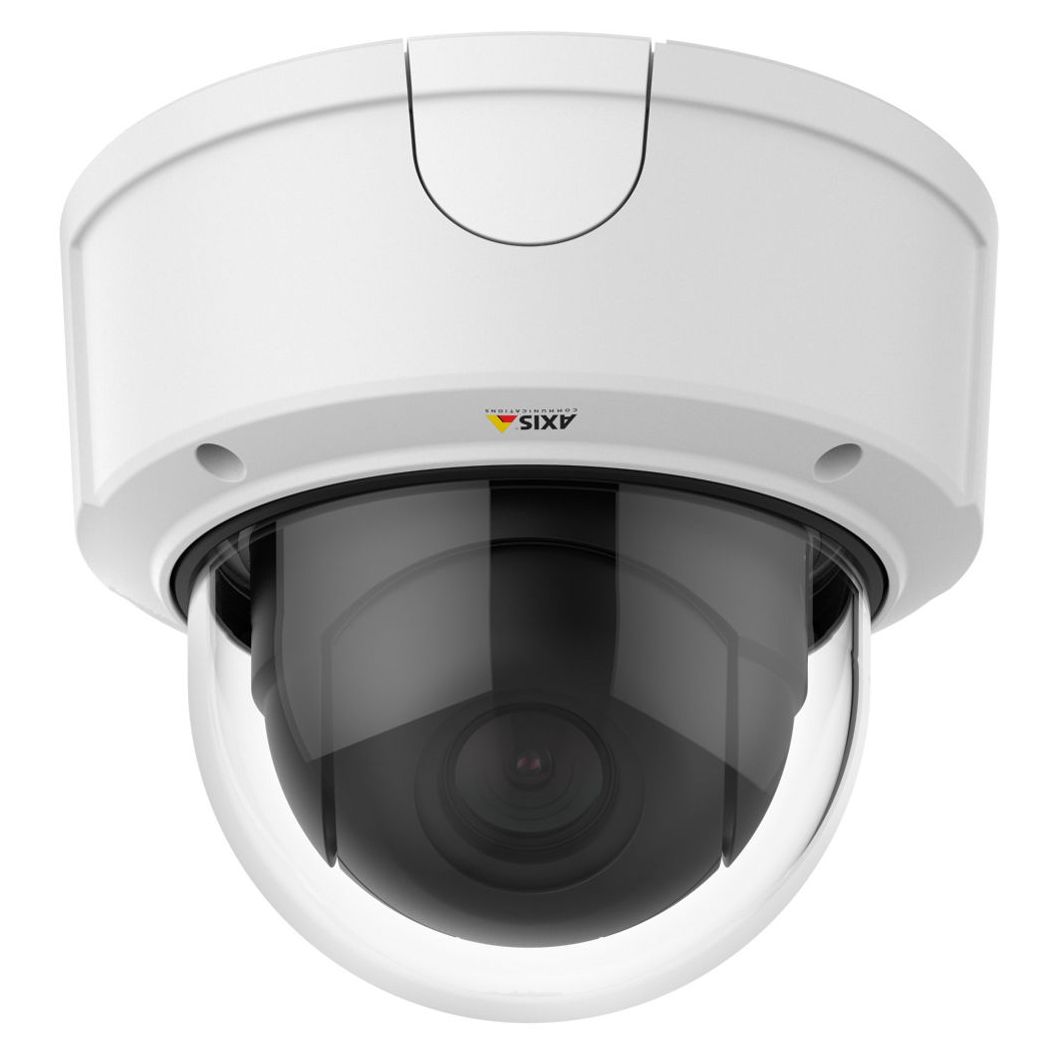

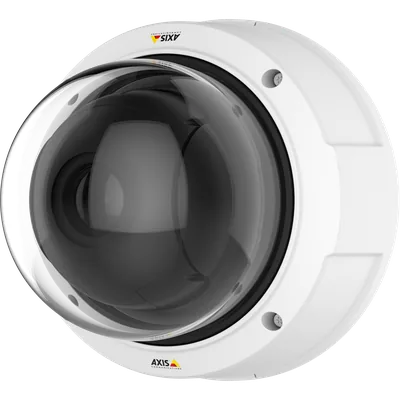

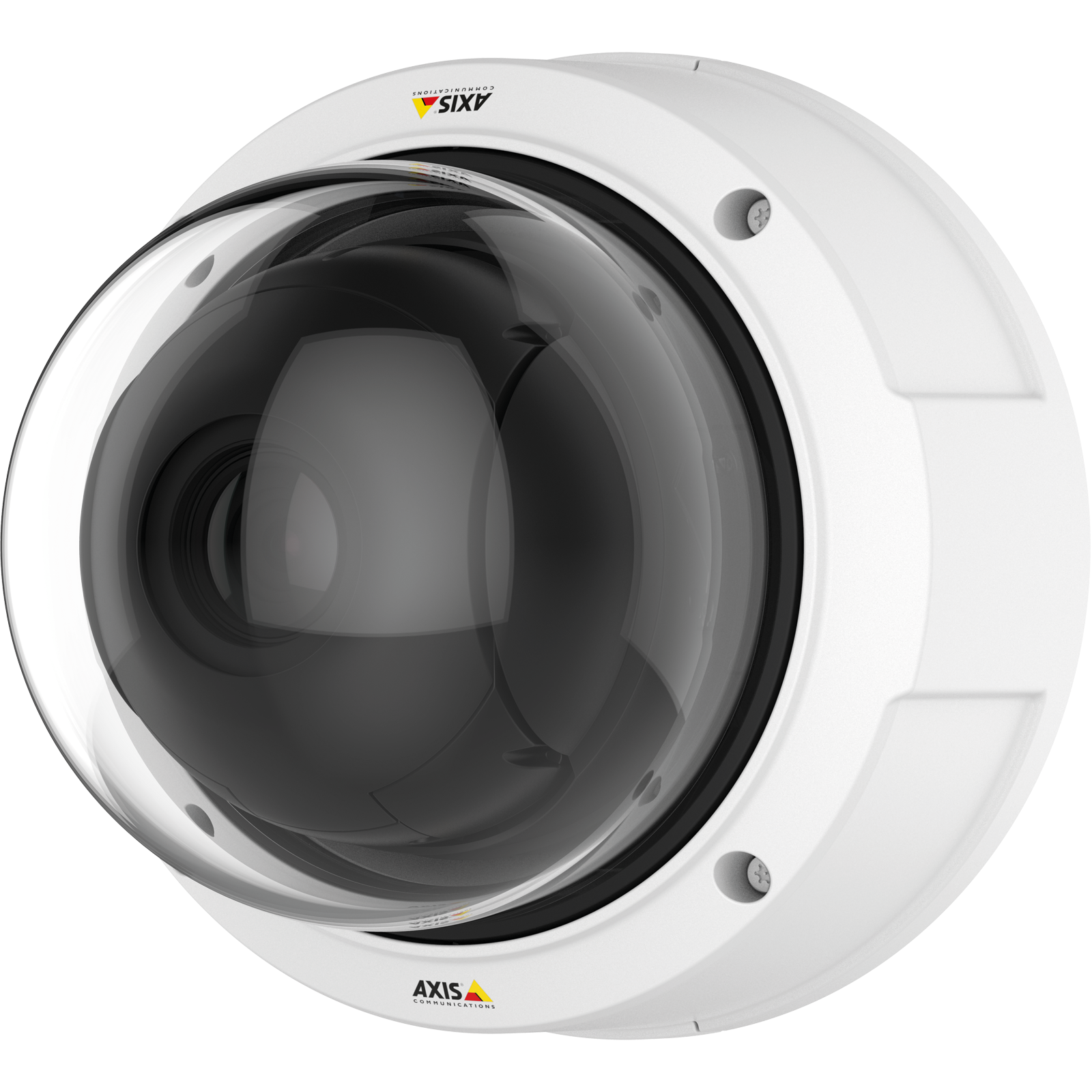

0744-001 | Q3617-VE 4MP Dome Camera, H.264, PoE, 1/1.8" Sensor, WDR, 4.1-9mm VF Lens | $3,135.00 | Add to Cart |
Filename | Size | ||
---|---|---|---|
Q3617VE Data Sheet.pdf | 513KB | Download | |
Q3617VE User Manual.pdf | 1MB | Download |
