Camera | |
Image Sensor | 1/2.3" CMOS, progressive scan |
Lens Type | 3.9-46.8mm varifocal lens, autofocus and auto-iris |
Aperture | f/1.8-2.0 |
Angle of View | Horizontal: 70.7-6.2° Vertical: 43.5-3.5° |
Day & Night | Automatically removable infrared cut filter |
Minimum Illumination | Color: 0.45 lux at 30 IRE f/1.8 B&W: 0.03 lux at 30 IRE f/1.8 |
Shutter Time | 1/10,000 to 1 sec |
Pan/Tilt/Zoom | Pan: 360° endless, 0.05-700° per second Tilt: 20; to -90°, 0.05-500° per second Zoom: 12x optical, 12x digital, 144x zoom total |
Pan/Tilt/Zoom Functionalities | Nadir flip, 256 preset positions, tour recording, guard tour, control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed, speed dry |
Video | |
Video Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles MJPEG |
Resolutions | 3840 x 2160 to 640 x 360 |
Frame Rate | Up to 60 fps (60 Hz) at 1080p Up to 30 fps (60 Hz) at UHD 4K |
Video Streaming | Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth VBR/MBR H.264 |
Image Settings | Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, rotation, backlight compensation, fine tuning of behavior at low light, electronic image stabilization, defogging, manual shutter time, text and image overlay, image freeze on PTZ, highlight compensation |
Privacy Masking | Up to 24 individual 3D privacy masks |
Network | |
Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP |
System Integration | |
Application Programming Interface | Open API for software integration, including VAPIX and Axis camera application platform Support for AXIS Video Hosting System (AVHS) with one-click camera connection, ONVIF Profile S and G |
Alarm Triggers | Detectors: Live stream accessed, motion detection, shock detection Hardware: Network, temperature Input Signal: Manual trigger, virtual inputs PTZ: Autotracking, error, moving, preset reached, ready Storage: Disruption, recording System: System ready Time: Recurrence, use schedule |
Event Action | Overlay text, record video, File upload via FTP, SFTP, HTTP, HTTPS, and email Notification via email HTTP, HTTPS, and TCP PTZ preset, guard tour, video recording to edge storage, autotracking, day/night mode, pre- and post-alarm video buffering, send SNMP Trap |
Data Streaming | Event data |
Installation Aid In Software | Pixel counter |
General | |
Casing | IK08, IP66, NEMA 4X |
Processors and Memory | 1 GB RAM, 256 MB flash |
Power | Axis High PoE Midspan 1-Port: 100 to 240 VAC, 74 W max Consumption: 14 W typical, 51 W max Axis PoE+ Midspan 1-Port: 100 to 240 VAC, 37 W max IEEE 802.3at Type 2 Class 4 Consumption: 14 W typical, 25 W max |
Connectors | RJ45 10Base-T/100Base-TX/1000Base-T RJ45 Push-pull Connector |
Local Storage | SD/SDHC/SDXC memory card slot SD card encryption Support for recording to dedicated network-attached storage (NAS) |
Video Management Software | Axis Camera Companion, Axis Camera Station, video management software for Axis's application development |
Operating Temperature & Humidity | With 30 W Midspan: -4 to 122°F / -20 to 50°C With 60 W Midspan: -58 to 122°F / -50 to 50°C Arctic Temperature Control: Start as low as -40°C / -40°F Humidity: 10-100% RH condensing |
Storage Temperature | -40 to 158°F / -40 to 70°C |
Dimensions | With Mounting Hook: 10.8 x 6.5 x 6.5" / 274 x 165 x 165 mm Without Mounting Hook: 10.1 x 6.5 x 6.5" / 256 x 165 x 165 mm |
Weight | 6.5 lb / 2.9 kg |
Model | Description | Price | Stock | |
---|---|---|---|---|

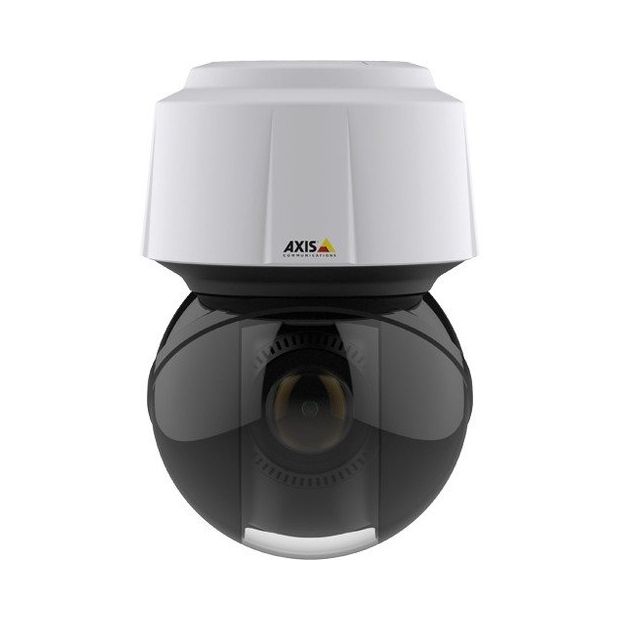

0800-006 | Q6128-E 8MP PTZ Camera, 4K, 50HZ, Defog, 12x Zoom, 700dps, 3.9-46.8mm VF Lens | $6,473.50 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
Q6128E Data Sheet.pdf | 159KB | Download |
![]() |
Q6128E User Manual.pdf | 1MB | Download |
