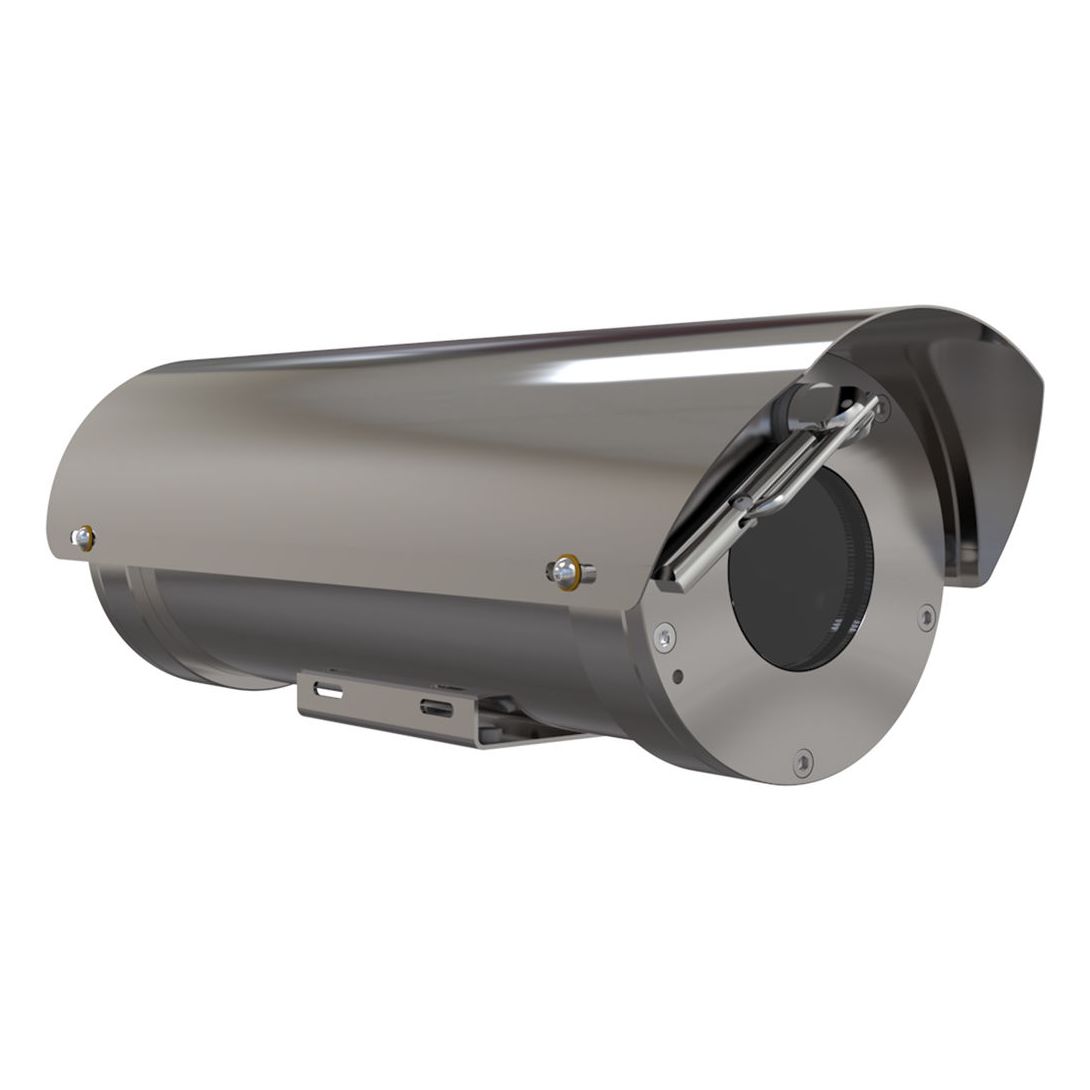

Axis XF40-Q1765
POSMarket SKU: Z14951
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
Axis' Explosion-Protected Fixed Network Camera for hazardous areas- onshore, offshore, marine and heavy industrial environments.
Product Overview
FEATURES
- Certified for hazardous areas
- Stainless steel (SAE 316L) and impact resistance
- Full HDTV 1080p resolution
- 18x zoom and autofocus
- Wide temperature range
Product Specifications
| Camera | |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Axis |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 18X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4 |
| Durability | Vandal Resistant, Weather Resistant |
| General | |
| Voltage | 24vAC |
| Dimensions (W x H) | 165 x 176 x 480 mm (6 1/2 x 6 15/16 x 18 7/8 in) |
| Electronic Shutter | 1/28000 s to 2 s |
| Image Device | Progressive scan RGB CMOS 1/2.9†|
| Minimum Scene Illumination | Color: 0.5 lux at 30 IRE F1.6, B/W: 0.04 lux at 30 IRE F1.6 |
| Operating Humidity | 10-100% RH (condensing) |
| Operating Temperature | -50°C to 60 °C (-58 °F to 140 °F) |
| OSD Menu | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Power Consumption | Max. 28W |
| Protocols | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Weatherproof | IP66, IP67, IP69 |
| Angle of View | Horizontal: 59°-4°, Vertical: 35°-2° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 0835-011 | XF40-Q1765 Explosion Protected Camera, 1080p, IP67, -60 to 40 deg, 4.7-84.6mm VF L | $15,378.00 | Add to Cart | |
| 0835-091 | XF40-Q1765 Explosion Protected Camera, CCOE, 1080p, -60 to 40 deg, 4.7-84.6mm VF Lens | $15,378.00 | Add to Cart | |
| 0835-001 | XF40-Q1765 Explosion Protected Camera, 1080p, IP67, -40 to 70deg, 4.7-84.6mm VF Lens | $14,163.88 | Add to Cart | |
| 0835-081 | XF40-Q1765 Explosion Protected Camera, CCOE, 1080p, -40 to 70deg, 4.7-84.6mm VF Lens | $14,163.88 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
XF40Q1765 User Manual.pdf | 923KB | Download |
|
XF40-Q1765 Data Sheet | 740KB | Download |
