Axis XP40-Q1765
from $35,411.75 (incl. GST)
POSMarket SKU: Z14897
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
Axis' Explosion-Protected PTZ Network
Camera for hazardous areas
Product Overview

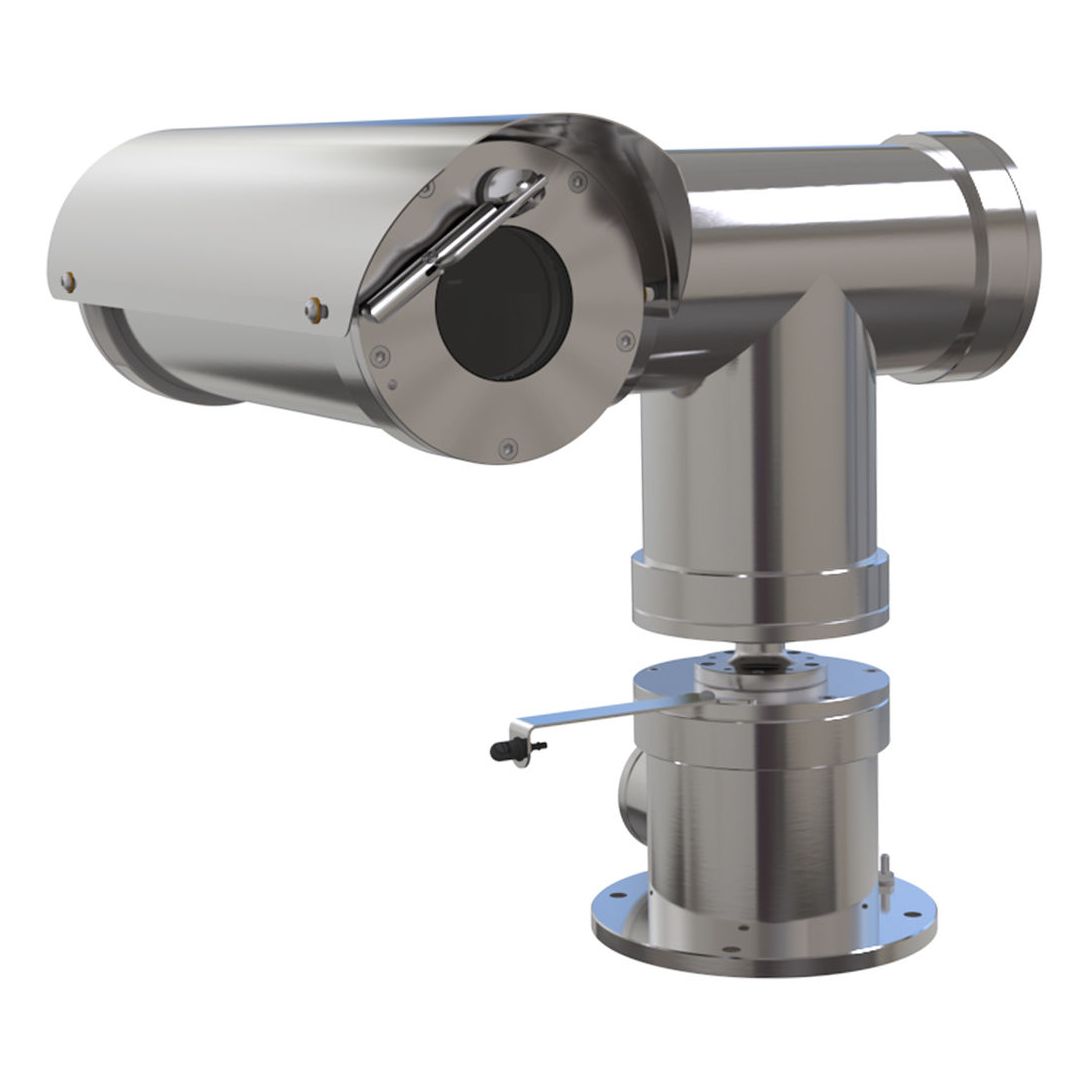

The Axis XP40-Q1765 Explosion-Protected PTZ Network Camera is suitable for onshore, offshore, marine and heavy industrial environments. As the camera features a 316L stainless steel housing certified for hazardous areas according to for example ATEX, IECEx and UL. The housing prevents any inside sparks or explosions from escaping and igniting gases or dust in the surrounding air. The Axis XP40-Q1765 provides superb image quality and color fidelity and a high level of flexible integration with other equipment, such as access control and fire alarms. It offers flexible remote accessibility using any existing IP-based networks.
The XP40-Q1765 uses a 1/2.9" progressive scan CMOS sensor for 1920 x 1080 resolution at 30 fps, and it features a 4.7-84.6mm varifocal lens for a 59-4° horizontal field of view. Wide dynamic range provides high-quality images in varied lighting, while brightness, sharpness, white balance, and backlight compensation features allow you to configure your camera based on different environments. The camera also comes with built-in analytics, such as motion detection and active tampering alarms. The camera has the ability to compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage efficiency. Additionally, video can be streamed in multiple individual streams, and frame rates and bandwidth are controllable for further customizing your network. A microSD slot supports on-site recording via the included 64GB microSD card and the camera can also record remotely to a dedicated NAS.
FEATURES
The XP40-Q1765 uses a 1/2.9" progressive scan CMOS sensor for 1920 x 1080 resolution at 30 fps, and it features a 4.7-84.6mm varifocal lens for a 59-4° horizontal field of view. Wide dynamic range provides high-quality images in varied lighting, while brightness, sharpness, white balance, and backlight compensation features allow you to configure your camera based on different environments. The camera also comes with built-in analytics, such as motion detection and active tampering alarms. The camera has the ability to compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage efficiency. Additionally, video can be streamed in multiple individual streams, and frame rates and bandwidth are controllable for further customizing your network. A microSD slot supports on-site recording via the included 64GB microSD card and the camera can also record remotely to a dedicated NAS.
FEATURES
- Stainless steel (SAE 316L) and impact resistance(* for model 0836-0(91/01/11))
- IP66- and IP67-rated for *0836-001
- Continuous 360° pan, ±90° tilt (* for model 0836-0(91/01/11))
- Full HDTV 1080p resolution
- 18x zoom and autofocus
- Wide temperature range
Product Specifications
| Camera | |
| Image Sensor | 1/2.9" progressive scan CMOS sensor |
| Lens | 4.7-84.6mm varifocal |
| Aperture | f/1.6-2.8 |
| Focus | Autofocus |
| Day/Night | Automatically removable IR cut filter |
| Minimum Illumination | Color: 0.5 lux at 30 IRE, f/1.6 B&W: 0.04 lux at 30 IRE, f/1.6 |
| Shutter Time | 1/28,000 to 2 sec |
| PTZ | Pan: 360° endless, 0.1-45°/s Tilt: ±90°, 0.1-24°/s 18x optical zoom and 12x digital zoom, total 216x zoom 64 preset positions, preset accuracy +/-0.1°, Guard Tour, driver selection, control queue |
| Video | |
| Compression | H.264 main and baseline profiles (MPEG-4 Part 10/AVC), MJPEG |
| Resolutions | 1920 x 1080 to 160 x 90 |
| Frame Rate | Up to 25/30 (50/60 Hz) in all resolutions |
| Streaming | Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth VBR/CBR H.264 |
| Image Settings | Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, WDR dynamic contrast, fine tuning of behavior at low light, rotation, text and image overlay, day/night shift level |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, Centralized Certificate Management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform Axis Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S |
| Analytics | Video motion detection, Active tampering alarm Support for Axis Camera Application Platform enabling installation of Axis Video Motion Detection 3, Axis Cross Line Detection, Axis Digital Autotracking and third-party applications |
| Event Trigger | Analytics, edge storage events |
| Event Action | File upload: FTP, HTTP, HTTPS network share and email Notification: Email, HTTP, HTTPS and TCP and SNMP trap Video recording to edge storage Pre- and post-alarm video buffering Status LED indicator PTZ preset, overlay text Day/Night vision mode |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | IP66-, IP67- and IK10-rated electro-polished SAE 316L stainless steel casing IK08 glass protective window |
| Memory | 256 MB RAM, 128 MB Flash |
| Maximum Power Consumption | 24 VAC, 100 W |
| Storage | 64 GB microSD card included Support for recording to dedicated network attached storage (NAS) |
| Operating Conditions | -40 to 140°F (-40 to 60°C) |
| Humidity | 10 to 100% RH (non-condensing) |
| VMS Software | Axis Camera Companion, Axis Camera Station, Video management software from Axis Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions | 18.7 x 20.2 x 18.9" (475 x 512 x 480 mm) |
| Weight | 110 lb (50 kg) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 0836-091 | XP40-Q1765 CCOE Certified, Explosion Protected PTZ Camera, 1080p, -60 to 40deg, 4.7-84.6mm VF Le | $37,434.38 | Add to Cart | |
| 0836-011 | XP40-Q1765 ATEX and IECEX Certified Explosion Protected PTZ Camera, 1080p, -60 to 40deg, 4.7-84.6mm VF Le | $37,434.38 | Add to Cart | |
| 0836-081 | XP40-Q1765 CCOE Certified Explosion Protected Thermal Camera, -40 to 65deg, 32deg Fixed Lens | $35,411.75 | Add to Cart | |
| 0836-001 | XP40-Q1765 Explosion Protected PTZ Camera, 1080p, -40 to 70deg, 4.7-84.6mm VF Le | $35,411.75 | Add to Cart |
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
XP40Q1765 1 User Manual.pdf | 964KB | Download |
|
Axis XP40-Q1765 0836081 | 365KB | Download |
|
Axis XP40-Q1765 0836091 0836011 | 402KB | Download |
|
Axis XP40-Q1765 0836001 | 328KB | Download |
