POSMarket SKU: Z15261

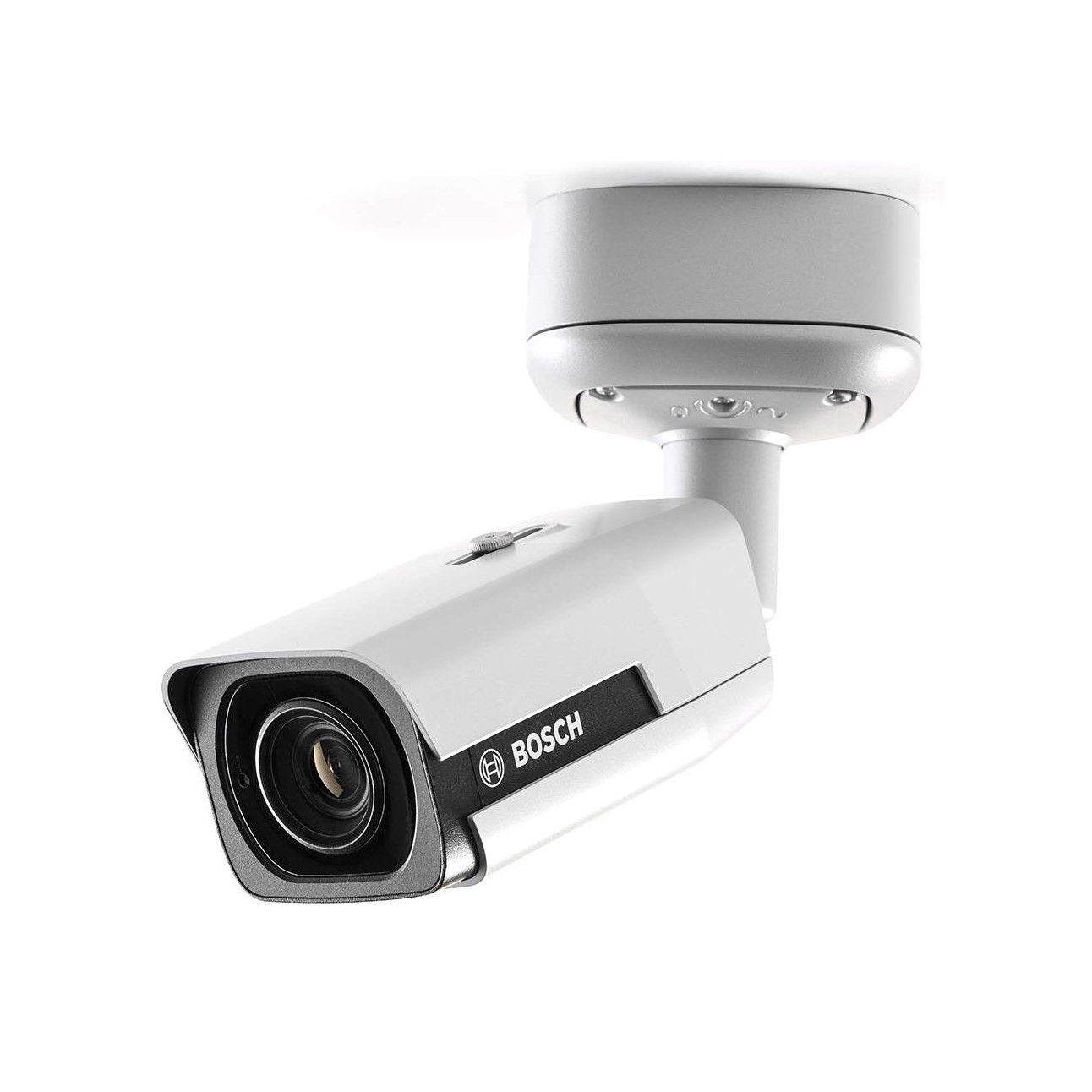

is a 2.7-12mm auto IP67 IK10 robust IP bullet camera with infrared illumination for outdoor MP surveillance with H.265 and Essential Video Analytics.
| 5MP HDR Bullet | |
| Sensor Type | 1/2.9" CMOS |
| Total Image Sensor Pixels | 3072 x 1028, 5.3 MP |
| Sensitivity | 3200K, reflectivity 89%, F1.3, 30IRE Color: 0.369 lux Mono: 0.035 lux With IR 0 lux Dynamic Range High: 120 dB WDR |
| Measured | According to IEC 62676 Part 5 108 dB WDR |
| Video Compression | H.265; H.264; MJPEG |
| Streaming | Multiple configurable streams in H.264 or H.265 and MJPEG, configurable frame rate and bandwidth |
| Regions of Interest (ROI) Latency | <55 ms (maximum average at 1080p 30 fps) <65 ms (maximum average at 5 MP 30 fps) |
| GOP Structure | IP |
| Encoding | Interval: 1 to 30 fps Regions: Up to 8 areas with encoder quality settings per area |
| Video Resolution | 5 MP (16:9) 3072 x 1728 |
| Frame Rate | Base: 25/30 fps (PAL/NTSC for analog output) |
| Analog Output | Off, 4:3 letterbox, 4:3 crop, 16:9 |
| Positioning | Coordinate / Mounting |
| Wizard | Lens: Zoom, autofocus |
| Video | Color Adjustable Picture Settings: Contrast, saturation, brightness White Balance: 2500 to 10,000K, 4 automatic modes (basic, standard, sodium lamp, dominant color), manual mode and hold mode ALC Day/Night: Auto (adjustable), color, monochrome Shutter: Automatic Electronic Shutter (AES); fixed shutter (1/15,000 to 1/30 sec) selectable; default shutter Enhance Sharpness: Sharpness enhancement level selectable Backlight Compensation: On/off Contrast Enhancement: On/off Noise Reduction: Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustment Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Signal to Noise Ratio | >55 dB |
| Local Storage | Internal RAM: 60 sec pre-alarm recording Memory Card Slot: Supports up to 32 GB microSDHC / 2 TB microSDXC card. (A memory card of Class 6 or higher is recommended for HD recording) Recording: Continuous recording, ring recording, alarm/events/schedule recording |
| Night Vision Range | 196' (60 m) LED 4 LED high efficiency array, 850 nm |
| Lens Type | Automatic varifocal 2.7-12mm, DC iris f/1.3 to 360 |
| Lens Mount | Board mounted |
| Horizontal Field of View (degree) | 95 to 28° |
| Vertical Field of View (degree) | 50 to 16° |
| Input/Output Connections | Analog Video Output: CVBS, 1 V p-p, BNC connector, 75 Ohms selectable standard Alarm Input: Short or 5 VDC activation Alarm Output: Input rating Maximum 0.5 A, 30 VAC / 40 VDC Audio Input: Wires; 10 kOhms typical 0.707 Vrms Audio Output: Wires; 16 Ohms typical 0.707 Vrms Network Connector: RJ45 |
| Audio Streaming | Standard: G.711, 8 kHz sampling rate, L16, 16 kHz sampling rate, AAC-LC, 48 kb/s at 16 kHz sampling rate, AAC-LC, 80 kb/s at 16 kHz sampling rate Signal-to-Noise Ratio: >50 dB Streaming: Full-duplex / half duplex |
| Software | Unit Discovery: IP Helper Unit Configuration: Via web browser or Configuration Manager Firmware Update: Remotely programmable Software Viewing: Web browser, Video Security Client, Video Security App, Bosch Video Management System, Bosch Video Client, or third-party software |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.2, SSL, DES, 3DES |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | ONVIF Profile S; GB/T 28181 |
| Operating Temperature | -40 to 140°F / -40 to 60°C for continuous operation |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 20% to 90% relative humidity non-condensing |
| Storage Humidity | 0% to 93% relative humidity non-condensing |
| Input Voltage | Power-over-Ethernet (48 VDC nominal); or 24 VAC +/-10% / 12 VDC +/-10% |
| PoE Standard | IEEE 802.3af (802.3at Type 1) Power Level: Class 3 |
| Power Consumption | 850 mA 12 VDC 720 mA 24 VAC 250 mA PoE |
| 3-Axis Adjustment | Pan: 360° Tilt: 90° Rotation: 360° |
| Color | RAL 9006 |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Dimensions | 10.7 x 3.5 x 3.5" / 271 x 90 x 90 mm without SMB |
| Weight | 2.9 lb / 1.3 kg without SMB 1.48 lb / 0.67 kg with SMB |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NBE-5503-AL | 5MP Outdoor Motorised VF Bullet Camera, 60m IR, EVA, H.265, WDR, IP67, 2.7-12mm | $1,421.31 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
NBE5503AL Datasheet.pdf | 617KB | Download |
|
DINION_IP_4_5_6000i Quick Installation Guide.pdf | 841KB | Download |
