POSMarket SKU: Z15252

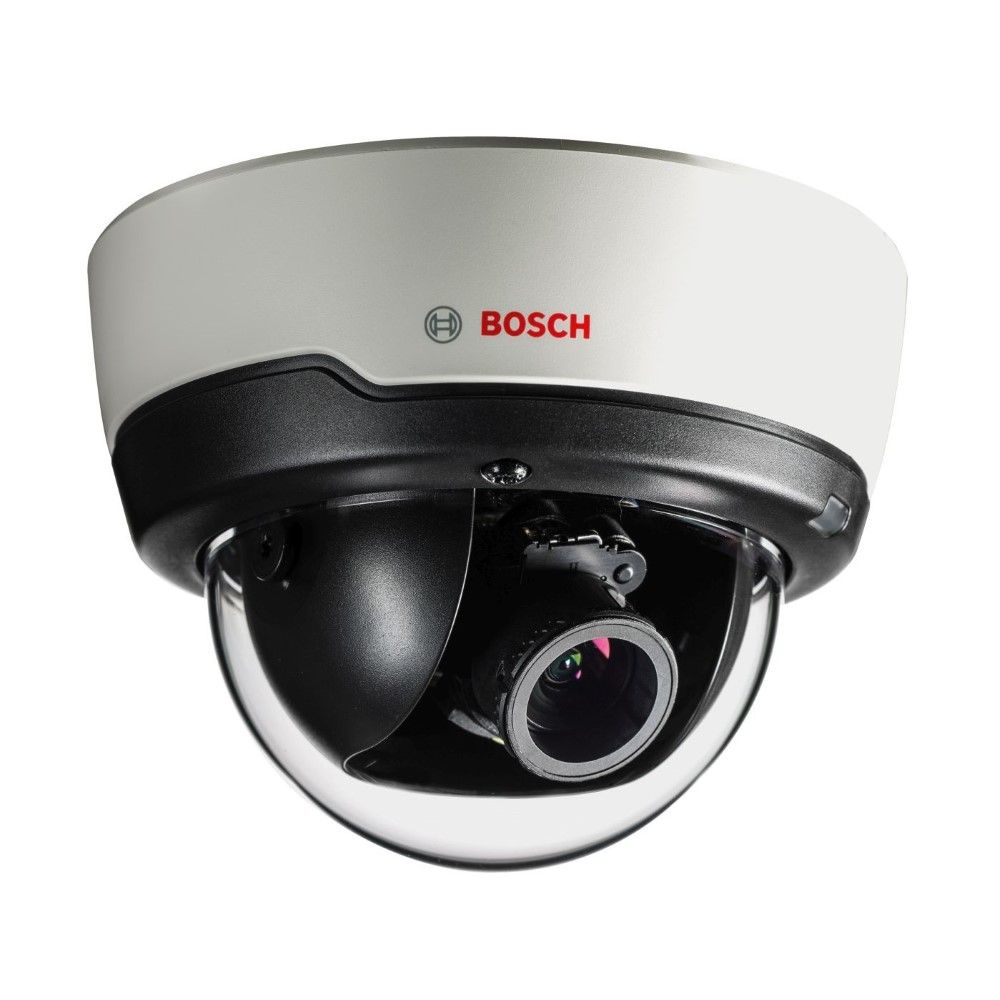

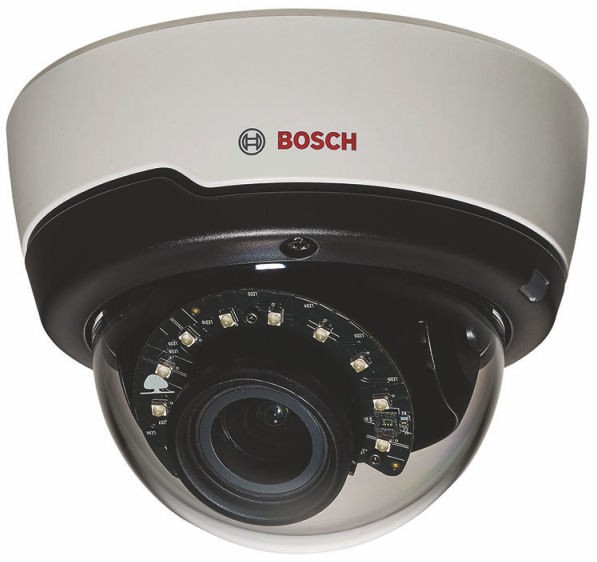

From the Flexidome camera family, the IP indoor 5000 HD is a professional IP dome camera for indoor HD
surveillance. It comes with 2 options of lens; Varifocal and Auto Varifocal.
| FLEXIDOME IP indoor 5000 HD Varifocal Lens | |
| Sensor | |
| Sensor Type | 1/2.7" CMOS |
| Total Pixels | 1952 x 1092 (2 MP) |
| Sensitivity | At 3200K, reflectivity 89%, F1.3, 30IRE Color: 0.24 lux Mono: 0.05 lux |
| Dynamic Range | 76 dB |
| Video Resolution | 1080p HD: 1920 X 1080 720p HD: 1280 x 720 D1 4:3 (cropped): 704 x 480 SD Upright (cropped): 400 x 720 480p SD Encoding: 704 x 480 Displayed: 854 x 480 432p SD: 768 x 432 288p SD: 512 x 288 240p SD Encoding: 352 x 240 Displayed: 432 x 240 144p SD: 256 x 144 |
| Functions | |
| Day/Night | Color, Monochrome, Auto |
| Adjustable | Contrast, Saturation, Brightness |
| White Balance | 4 automatic modes, manual mode and measure |
| Shutter | Automatic Electronic Shutter (AES); Fixed (1/12 to 1/15000) selectable; Default shutter |
| Backlight Compensation | On/off |
| Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Contrast Enhancement | On/off |
| Sharpness | Sharpness enhancement level selectable |
| Defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Privacy Masking | Eight independent areas, fully programmable |
| Video Motion Analysis | MOTION+ |
| Other Functions | Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Scene modes, Location |
| Optical | |
| Lens Type | Varifocal 3 to 10 mm, DC Iris F1.5 - 360, IR corrected |
| Lens Mount | Board mounted |
| Adjustment | Manual zoom/focus |
| Iris Control | Automatic iris control |
| Day/Night | Switched mechanical IR filter |
| Field of view (FOV) | Horizontal: 36 to 117° Vertical: 20 to 61° |
| Input/ Output | |
| Analog Video Out | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ω |
| Audio Line In | 0.707 VRMS max, 10 kω typical, jack connector |
| Audio Line Out | 0.707 VRMS at 16 ω typical, jack connector |
| Audio Input | Built-in microphone (can be permanently disabled) |
| Alarm Input | 1 input |
| Activation | Short or 5 VDC activation |
| Alarm Output | 1 output |
| Alarm Output | 30 VDC, maximum load 0.5 A |
| Ethernet | RJ-45 |
| Streaming Performance | |
| Audio Streaming | Standard: G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kb/s at 16 kHz sampling rate AAC-LC, 80 kb/s at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Streaming Method | Full-duplex / half duplex |
| Video Streaming | Video compression: H.264 (MP); MJPEG |
| Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth, Regions of Interest (ROI) |
| Overall IP Delay | Minimum 120 ms, Maximum 340 ms |
| GOP Structure | IP, IBP, IBBP |
| Interval | 1 to 25 (30) ips |
| Region | Eight independent areas for setting encoder quality to optimize bit-rate |
| Local Storage | |
| RAM | 10 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (An SD card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous recording, ring recording, alarm/ events/schedule recording |
| Software | |
| Software Features | Unit discovery: IP Helper Unit configuration: Via web browser or Configuration Manager Firmware update: Remotely programmable Software viewing: Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.0, SSL, DES, 3DES |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | ONVIF Profile S; GB/T 28181 |
| Power | |
| Input Voltage | +12 VDC or Power-over-Ethernet (48 VDC nominal) |
| Power Consumption | 3.8 W maximum |
| PoE | IEEE 802.3af (802.3at Type 1) Power level: Class 2 |
| Certifications and Approvals | |
| HD | Complies with the SMPTE 274M-2008 Standard in Resolution: 1920 x 1080 Scan: Progressive Color representation: complies with ITU-R BT.709 Aspect ratio: 16:9 Frame rate: 25 and 30 frames/s Complies with the SMPTE 296M-2001 Standard in Resolution: 1280 x 720 Scan: Progressive Color representation: complies with ITU-R BT.709 Aspect ratio: 16:9 Frame rate: 25 and 30 fps |
| Standards | EN 60950-1, UL 60950-1, CAN/CSA-C22.2 NO. 60950-1-03, EN 50130-4, EN 50130-5, Class II (indoor in general, fixed equipment), FCC Part15 Subpart B, Class B, EMC directive 2004/108/EC, EN 55022 class B, EN 55024, AS/NZS CISPR 22 (equal to CISPR 22), ICES-003 Class B, VCCI J55022 V2/V3, EN 50121-4 |
| ONVIF | EN 50132-5-2; IEC 62676-2-3 |
| Certifications | CE, FCC, UL, cUL, RCM, CB, VCCI |
| Environmental | |
| Operating Temperature | -4 to122°F (-20 to 50°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Humidity | 20 to 90% relative humidity (non-condensing) |
| Mechanical | |
| 3-Axis Adjustment | Pan/Tilt/Rotation: 350/130/330° |
| Color | RAL 9004, RAL 9010 |
| Dimensions | 5.3 x 4.0" (13.5 x 10.2 cm) |
| Weight | Approximately 0.9 lb (0.5 kg) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NIN-51022-V3 | 2MP Indoor VF Dome 5000 HD Camera, H.264, WDR, 3-10mm | $490.83 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
FLEXIDOME IP indoor 5000 HD Datasheet.pdf | 301KB | Download |
|
IP indoor 5000 HD Quick Installation Guide.pdf | 390KB | Download |
