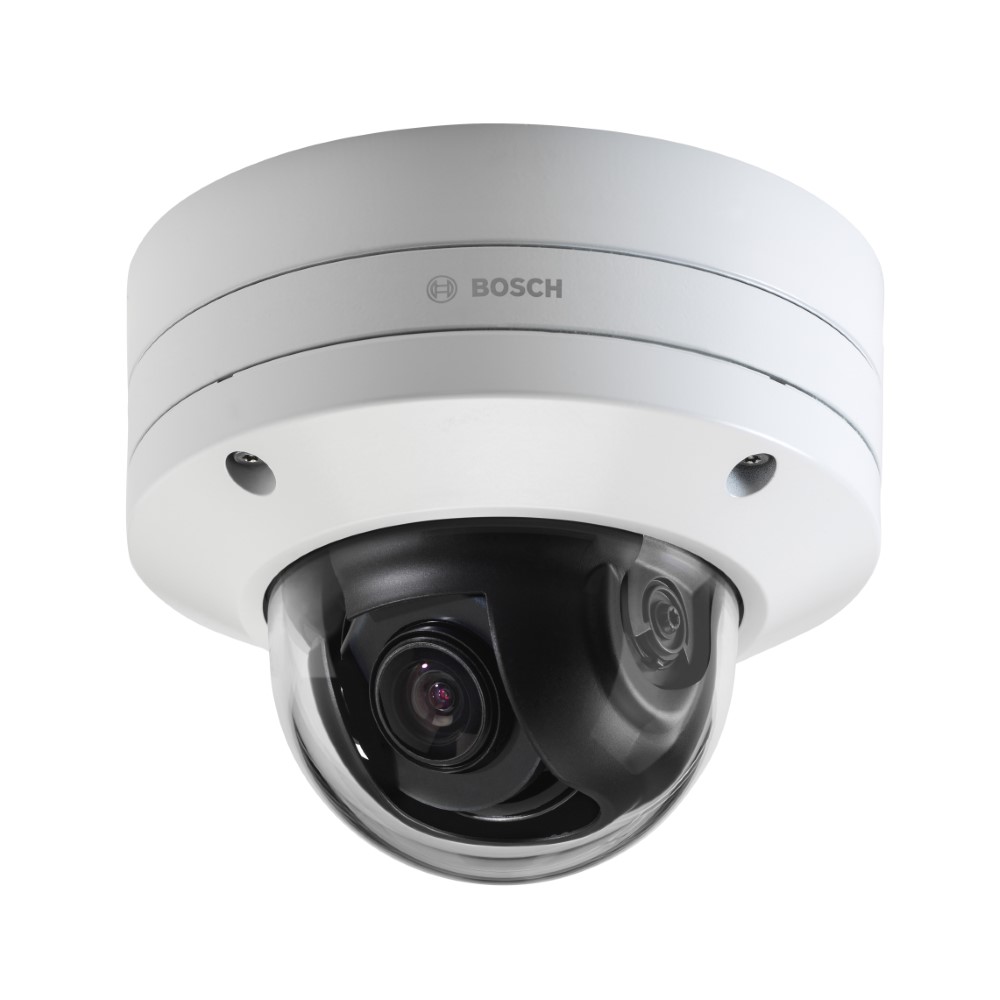

Bosch NDE-8502-R

from $2,369.85 (incl. GST)

POSMarket SKU: Z15309

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

FLEXIDOME IP starlight 8000i is 2MP HDR PTRZ IP66 with an option from 3-9mm or 10-23mm lens that offers offers starlight technology and high dynamic range with 1080p resolution to provide crisp and highly detailed images even in extreme low-light environments

Product Rating
Product Overview
The Bosch FLEXIDOME IP starlight 8000i offers starlight technology and high dynamic range with 1080p resolution to provide crisp and highly detailed images even in extreme low-light environments. Fast moving objects are easily captured with frame rates of up to 60 frames per second. This camera delivers excellence in video security and data management and has built-in state-of-the-art intelligent video analytics as a standard feature. It's rugged and aesthetic design makes the camera suitable for any indoor or outdoor installation.

The camera’s remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.

FEATURES
  • Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
  • Starlight technology provides highly detailed images in extreme low-light situations
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
  • Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
  • Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
Product Specifications
Bosch NDE-8502-R
Camera
Sensor 2.1 MP 1/2.8" CMOS
Focal Length 3 to 9mm
Maximum Aperture f/1.2 - f/2.3
Zoom Optical: 3x
Lens Field of View Horizontal: 117 to 37°
Vertical: 59 to 21°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.007 Lux
B&W: 0.0011 Lux
Shutter Speed 1/15,000 to 1/30 Seconds
Video
Streaming Resolution 1920 x 1080 at 60 fps
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes, 4 Streams
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, L16
Built-In Mic No
Networking
Security Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
Supported Protocols APIPA, ARP, CHAP, DDNS, DHCP, DNS, DiffServ, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOAP, SSL/TLS, TCP, UDP, UPnP, iSCSI
System Integration
Application Programming Interface (API) Profiles S, G, and T
GB/T 28181
Analytics Intelligent Video Analytics
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Built-In Installation Aids Camera View Wizard for Motorized Pan, Tilt, Roll, Zoom, Autofocus
Pixel Counter
System Requirements
Mobile Operating Systems iOS, Android
Environmental
Operating Temperature -58 to 140°F / -50 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C
Operating Humidity 5 to 100%
IP Rating IP66
IK Rating IK10
General
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC [128 GB Maximum]
Pan/Tilt Programmed Pan: 361°
Programmed Tilt: 93° (-3.5 to 89°)
Alarm I/O 2 / 1
I/O Connections 1 x RJ45
1 x Power
Video Management Software Bosch Video Recording Manager, Project Assistant
Internal Storage None
Power Source AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
Power Consumption AC: 7.1 W
DC: 7.5 W
PoE: 7 W
Material of Construction Aluminum, Polymer
Dimensions ø: 6.9 x H: 5.7" / ø: 175.0 x H: 145.0 mm
Weight 4.85 lb / 2.2 kg
Bosch NDE-8502-RT
Camera
Sensor 2.1 MP 1/2.8" CMOS
Focal Length 10 to 23mm
Maximum Aperture f/1.6 to 2.6
Zoom Optical: 2.3x
Lens Field of View Horizontal: 32 to 14.4°
Vertical: 18 to 8.1°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.013 Lux
B&W: 0.0031 Lux
Shutter Speed 1/15,000 to 1/30 Seconds
Video
Streaming Resolution 1920 x 1080 at 60 fps
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes, 4 Streams
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, L16
Built-In Mic No
Networking
Security Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
Supported Protocols APIPA, ARP, CHAP, DDNS, DHCP, DNS, DiffServ, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOAP, SSL/TLS, TCP, UDP, UPnP, iSCSI
System Integration
Application Programming Interface (API) ONVIF Profiles S, G, and T
GB/T 28181
Analytics Intelligent Video Analytics
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Built-In Installation Aids Camera View Wizard for Motorized Pan, Tilt, Roll, Zoom, Autofocus
Pixel Counter
System Requirements
Mobile Operating Systems iOS, Android
Environmental
Operating Temperature -58 to 140°F / -50 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C
Operating Humidity 5 to 100%
IP Rating IP66
IK Rating IK10
General
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC [128 GB Maximum]
Pan/Tilt Programmed Pan: 361°
Programmed Tilt: 94° (-3.5 to 90°)
Alarm I/O 2 / 1
I/O Connections 1 x RJ45
1 x Power
Video Management Software Bosch Video Recording Manager, Project Assistant
Internal Storage None
Power Source AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
Power Consumption AC: 7.1 W
DC: 7.5 W
PoE: 7 W
Material of Construction Aluminum, Polymer
Dimensions ø: 6.9 x H: 5.7" / ø:175.0 x H: 145.0 mm
Weight 4.85 lb / 2.2 kg
ModelDescriptionPriceStock
NDE-8502-RT 2MP Outdoor Motorised VF Dome 8000i Camera, PTRZ, H.265, WDR, IVA, 10 - 23mm $2,497.33
Call
 Add to Cart
NDE-8502-R 2MP Outdoor Motorised VF Dome 8000i Camera, PTRZ, H.265, WDR, IVA, 3 - 9mm $2,369.85
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document NDE8502Rx Datasheet.pdf 1MB Download
PDF Document FLEXIDOME IP starlight 8000i User Manual.pdf 5MB Download
PDF Document FLEXIDOME IP starlight 8000i Quick Installation Guide.pdf 5MB Download
