POSMarket SKU: Z15337

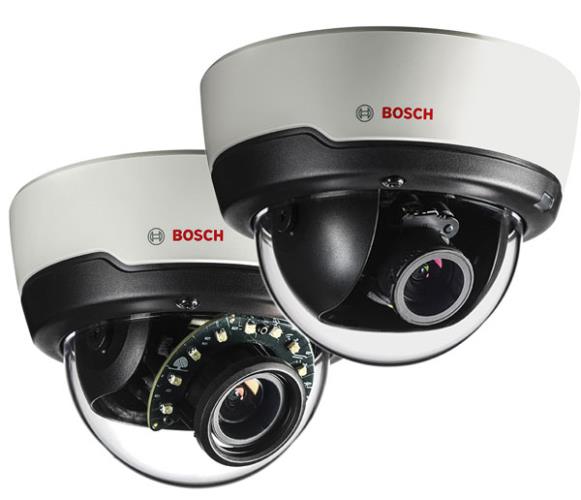

Professional IP Fixed dome 2MP 3-10mm auto camera for indoor HD surveillance with H.265, Essential Video Analytics and integrated Infrared.
| FLEXIDOME IP indoor 4000i | |
| Imager | 1/2.9" CMOS progressive scan |
| Effective Pixels (H x V) | 1920 x 1080, approximately 2 MP |
| Minimum Illumination | Color: 0.12 lux at 3100K, reflectivity 89%, 1/25, f/1.3, 30 IRE Mono: 0.02 lux at 3100K, reflectivity 89%, 1/25, f/1.3, 30 IRE 0 lux with IR on |
| Wide Dynamic Range | 85 dB |
| Day/Night | Color, Monochrome, Auto (adjustable switch points) |
| IR Distance | 98' (30 m) |
| LEDs | 10-LED high-efficiency array, 850 nm |
| Light Intensity | Adjustable IR intensity |
| Adjustable Picture Settings | Contrast, Saturation, Brightness |
| White Balance | 2500 to 10,000K 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color) Manual mode and Hold mode |
| Shutter | Automatic Electronic Shutter (AES) Fixed (1/25 [30] to 1/15,000 sec) selectable Default shutter |
| Backlight Compensation | On/off |
| Contrast Enhancement | On/off |
| Signal-to-Noise Ratio (SNR) | >55 dB |
| Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Sharpness | Sharpness enhancement level selectable |
| Defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Privacy Masking | 8 independent areas, fully-programmable |
| Intelligent Video Analytics | Essential Video Analytics |
| Scene Modes | Standard, Sodium lighting, Traffic, Intelligent AE, Vibrant, Low bit rate, Sports & Gaming, and Retail |
| Other Functions | Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Location |
| Camera Rotation | Automatic detection with manual override (0/90/180/270°) |
| Optical | |
| Lens Type | 3-10mm Automatic Varifocal (AVF) lens, IR corrected |
| Aperture | f/1.3 to 360 |
| Iris | DC |
| Lens Mount | Board |
| Adjustment | Motorized zoom/focus |
| Iris Control | Automatic iris control |
| Day/Night | Switched mechanical IR filter |
| Field of View | Horizontal: 34 to 101° Vertical: 19 to 54° |
| Video Streaming | |
| Video Compression | H.265, H.264, MJPEG |
| Streaming | Multiple configurable streams in H.264 or H.265 and MJPEG, configurable frame rate and bandwidth Regions of Interest (ROI) |
| Video Resolutions 1920 x 1080 1280 x 1024 (1.3 MP, 5:4, cropped) 1280 x 720 640 x 480 320 x 240 Upright Mode: 1080 x 1920 1024 x 1280 (1.3 MP, 5:4, cropped) 720 x 1280 Bit Rate | 1080p: 600 kb/s at 30 fps 438 kb/s at 12 fps 284 kb/s at 5 fps 122 kb/s at 2 fps 720p 450 kb/s at 30 fps 329 kb/s at 12 fps 213 kb/s at 5 fps 92 kb/s at 2 fps |
| Latency Camera | Processing Latency: <55 ms (maximum average at 1080p30) <65 ms (maximum average at 5MP30) |
| GOP Structure | IP, IBP, IBBP |
| Encoding | Interval: 1 to 25 [30] fps Regions: Up to 8 areas with encoder quality settings per area |
| Input/Output | |
| Analog Video Out | SMB connector, CVBS (PAL/NTSC), 1 V p-p, 75 Ohms |
| Audio Line In | 0.707 Vrms max, 10 kOhms typical, jack connector |
| Audio Line Out | 0.707 Vrms at 16 Ohms typical, jack connector |
| Audio Input | Built-in microphone (can be permanently disabled) |
| Alarm Input | 1 input Short or 5 VDC activation |
| Alarm Output | 1 output Output Voltage: 30 VDC, maximum load 0.5 A |
| Ethernet | RJ45 |
| Audio | |
| Standard | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kb/s at 16 kHz sampling rate AAC-LC, 80 kb/s at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full duplex/half duplex |
| Local Storage | |
| RAM | Internal: 60 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (A memory card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous Ring recording Alarm/events/schedule recording |
| Software | |
| System Detection | Via IP Helper |
| Configuration | Via web browser or Configuration Manager |
| Firmware Updates | Remotely programmable |
| Viewing | Software Viewing: Web browser Video Security Client Video Security App Bosch Video Management System Bosch Video Client or third-party software |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.0/1.2, AES128, AES256 |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | ONVIF Profile S and Profile G GB/T 28181 |
| Electrical | |
| Input Voltage | 12 VDC +/-5% 24 VAC +/-10% PoE (48 VDC nominal) |
| PoE Standard | IEEE 802.3af (802.3at Type 1, Class 3) |
| Maximum Power Consumption | 12 VDC: 9 W 24 VAC: 7.4 W PoE: 8.5 W |
| Environmental | |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Humidity | 20 to 90% relative humidity (non-condensing) |
| Mechanical | |
| 3-Axis Adjustment | Pan/Tilt/Rotation: 350/130/330° |
| Material | Dome Bubble: Polycarbonate, clear with anti-scratch coating |
| Color | RAL 9003, RAL 9017 |
| Dimensions | 5.32 x 4" / 135 x 102 mm |
| Weight | 0.99 lb / 0.45 kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

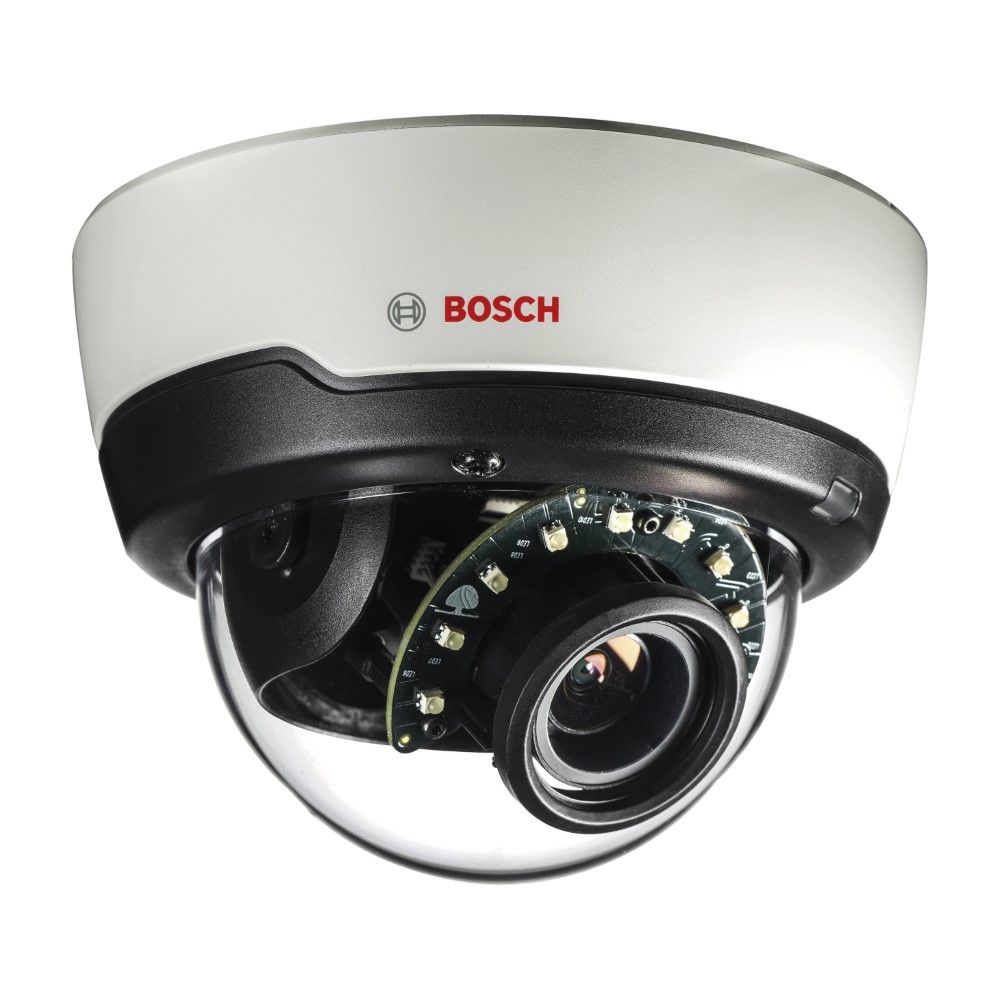

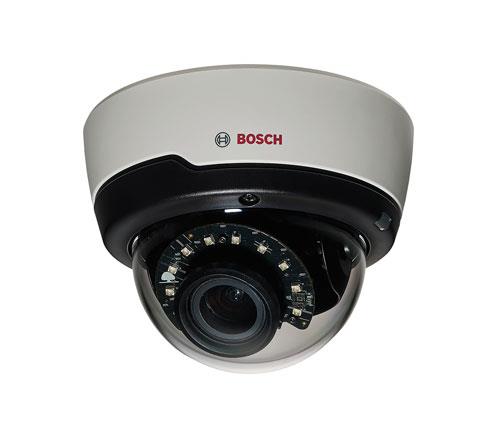

| NDI-4502-AL | 2MP Indoor Motorised VF Dome 4000i Camera, 30m IR, H.265, WDR, EVA, 3-10mm | $1,067.99 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
FLEXIDOME IP indoor 4000i Datasheet.pdf | 373KB | Download |
|
FLEXIDOME IP indoor 4000i Quick Installation Guide.pdf | 7MB | Download |
|
FLEXIDOME IP indoor 4000i User manual.pdf | 2MB | Download |
