POSMarket SKU: Z15300
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

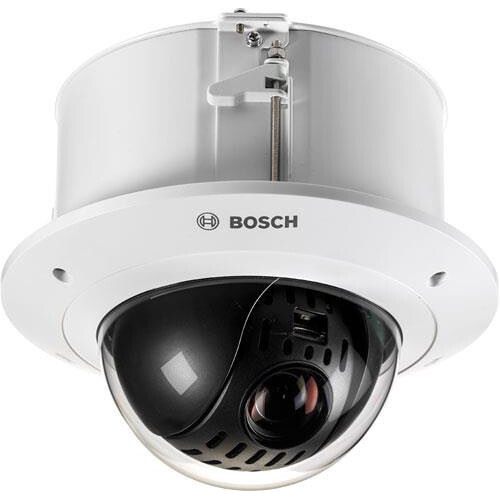

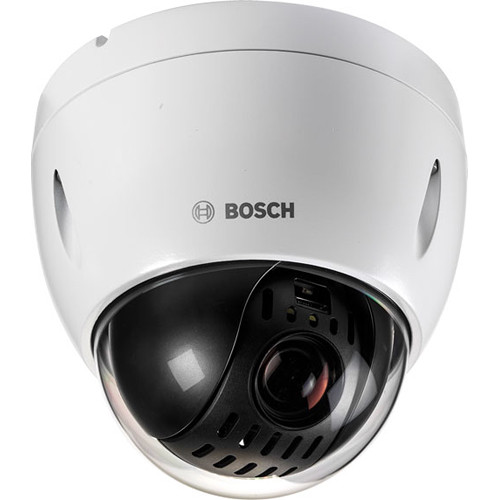

IP dome camera with clear bubble and indoor pendant
housing or in-ceiling, 12x zoom, 1080p HD. Also offers Essential Video Analytics, Intelligent Dynamic Noise Reduction, remote camera access, and dual power options.

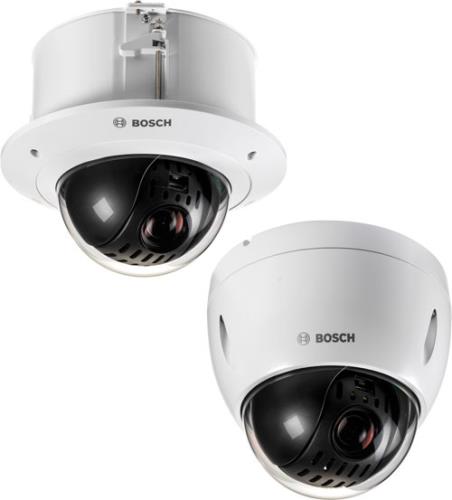

AUTODOME IP 4000i | |
Imager | 1/2.8" progressive scan CMOS |
Effective Picture Elements | 1945 x 1097 (2.13 MP) |
Lens Focal Length | 5.3-64mm (f/1.6 to 2.8) |
Optical Zoom | 12x |
Field of View | 58.5 to 4.9° |
Focus | Automatic with manual override |
Iris | Automatic |
Digital Zoom | 16x |
Sensitivity | 3100K, reflectivity 89%, 1/30, f/1.6, 30 IRE Color: 0.05 lux Mono: 0.01 lux |
WDR Mode | 94 dB |
Electronic Shutter Speed | 1/15000 to 1/30 sec (12 steps) |
Signal-to-Noise Ratio (SNR) | >55 dB (AGC off) |
Noise Reduction | Intelligent Dynamic Noise Reduction |
Backlight Compensation | On/Off |
Defog | Automatically adjusts parameters for best picture in foggy or misty scenes (Auto/Off) |
White Balance | Standard auto, sodium lamp auto, basic auto, manual, hold, dominant color auto |
Day/Night | Mechanical switchable IR filter (auto/on/off) monochrome |
Pan/Tilt Modes | Normal: 0.1-120°/s Turbo Pan: 0.1-160°/s Tilt: 0.1-120°/s |
Pre-Position Speed | Pan: 160°/s Tilt: 120°/s |
Pan Range | 360°continuous |
Tilt Angle | -90 to 0° |
Accuracy | Pre-Position: +/-0.1° typical |
Preset Positions | 256 |
Tours | Recorded Tours: Two, maximum total duration 15 minutes (depending on the amount of commands sent during recording) Pre-Position Tour: One, consisting of up to 256 scenes consecutively, and one (1), customized up to 64 scenes |
Software Control | Unit Discovery: IP helper Camera Setup/Control: Via web browser (such as Internet Explorer version 11.0 or later), Configuration Manager, Bosch VMS, or Video Client Software: Update network firmware upload |
Video Compression | H.265, H.264, MJPEG |
Streaming | Multiple configurable streams in H.265, H.264, and MJPEG; configurable frame rate and bandwidth. |
Frame Rate | 60 fps at all resolutions |
Resolution | 1080p, 720p, D1 4:3 (cropped), SD (432p, 288p) |
Ethernet | 10/100Base-T |
Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
Interoperability | ONVIF Profile S, ONVIF Profile G; GB/T 28181 |
Audio | Compression: G.711, 8 kHz sampling rate / L16, 16 kHz sampling rate / AAC, 16 kHz sampling rate Interface: 1/1-Channel input/output |
Memory Card Slot | Support a memory card with a maximum of 32 GB microSDHC / 2 TB microSDXC (user supplied). An SD card of Class 6 or higher is recommended for HD recording. |
Connections | Power: RJ45 10/100Base-T PoE+ (IEEE 802.3at, Class 4 standard) 21 to 30 VAC, 50/60 Hz Alarm Inputs: 2 Alarm Outputs 1 x relay output 32 VDC, 150 mA maximum Audio: 1 x mono line in, 1 x mono line output Signal line input 94 kOhms typical, 1 Vrms maximum Signal line output 1 kOhm typical, 1 Vrms maximum |
Input Voltage | 24 VAC and PoE+ |
Power Consumption | 24 VAC: 12 W PoE+: 12 W |
Ingress Protection | IP65 |
IK Rating | IK10 |
Operating Temperature | 14 to 131°F / -10 to 55°C |
Humidity | Up to 90% RH, non-condensing |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Construction | (pendant model) Dimensions (DIA x H) 170.2 mm x 162.4 mm (6.7 in x 6.39 in) Weight 1.88 kg (4.14 lb) Construction material Housing: Aluminum Bubble: Polycarbonate Standard color White (RAL 9003) Weight 4.14 lb / 1.88 kg (in-ceiling model) Dimensions (DIA x H) 198 mm x 159.3 mm (7.8 in x 6.27 in) Weight 1.81 kg (3.99 lb) Construction material Housing: SPCC Trim ring: PC/ABS Bubble: Polycarbonate Standard color White (RAL 9003) |
Model | Description | Price | Stock | |
---|---|---|---|---|
NDP-4502-Z12C | 2MP Indoor PTZ 4000i Camera, 12x Zoom, EVA, IP51, 5.3-64mm, In-Ceiling | $1,889.06 | Add to Cart | |
NDP-4502-Z12 | Bosch 2MP Indoor PTZ 4000i Camera, 12x Zoom, EVA, WDR, H.265, IP65, 5.3-64mm | $1,806.75 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
NDP4502Z12x Datasheet.pdf | 548KB | Download |
![]() |
AUTODOME IP 4000i Installation Manual.pdf | 1MB | Download |
![]() |
AUTODOME_IP_4000i_Quick_Installation_Guide.pdf | 3MB | Download |
![]() |
AUTODOME_IP_4000i_Quick_Installation_Guide pendant.pdf | 4MB | Download |
