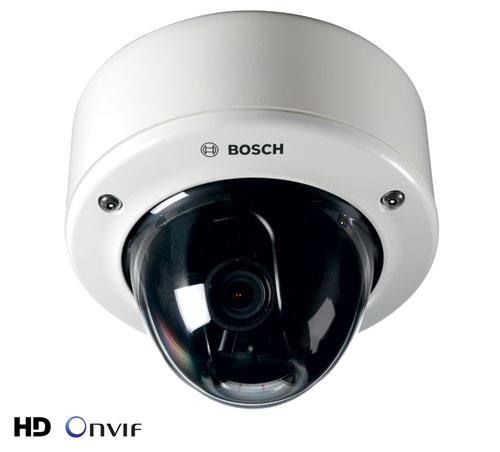

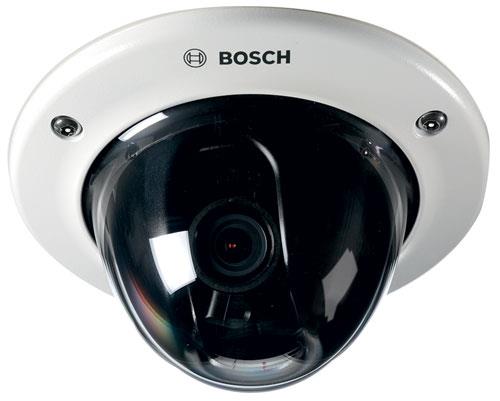

Bosch NIN-73013-A3A

This camera provides clear images 24/7 at night or under low-light conditions. The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting. The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. The aesthetic vandal-resistant housing makes the camera suitable for indoor or outdoor installation.

The camera simultaneously transfers IP video and analog video via an SMB connector. This hybrid functionality offers a migration path from an analog CCTV to an IP-based system. The camera features a mechanical filter that allows it to capture images in mono with illumination as low as 0.0011 lux and in color to 0.0075 lux. The filter can be switched remotely, or automatically via a light level sensor or contact input.

Extended Dynamic Range Mode
The extended dynamic range mode is based on a multiple-exposure process that captures more details in the highlights and shadows in the same scene. This method is used to provide a standard result which can be used to compare different cameras.

Content Based Imaging Technology
CBIT (Content Based Imaging Technology) is used to improve image quality in all lighting conditions and to identify areas for enhanced processing. This provides better detail in the areas that matter and better all-round performance. Essential Video Analytics technology, for example, allows you to view moving objects in bright and dark areas of a scene.

Intelligent Dynamic Noise Reduction
The low-noise image and H.264 compression technology provide clear images while reducing bandwidth and storage by up to 50% compared to other H.264 cameras.

Area-Based Encoding
Area-based encoding is another feature which reduces bandwidth. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.

Multiple Streams
The multi-streaming feature delivers various H.264 streams together with an MJPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.

Regions of Interest and e-PTZ
The remote e-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. Intelligent Tracking can follow objects within the defined regions of interest. Intelligent Tracking can autonomously detect and track moving objects or the user can click on an object which the tracker will then follow.

Storage Management
Recording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.

Edge Recording
Insert a memory card into the card slot to store up to 2TB of local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, and extends the effective life of the memory card.

Cloud-Based Services
The camera supports time-based or alarm-based JPEG posting to four different accounts. Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an email or SMS notification so you are always aware of abnormal events.

Automatic Image Rotation
The integrated gyro/accelerometer sensor automatically corrects the image orientation in steps of 90° if the camera is mounted at right angles or upside down. The sensor image can also be rotated manually through steps of 90°. To capture details in long hallways without loss of resolution, mount the camera at right angles.

Scene Modes
Nine configurable modes are provided with the best settings for a variety of applications. Different scene modes can be selected for day or night situations.

Hybrid Operation
A surge-protected analog video output allows full hybrid operation. The hybrid functionality offers a migration path from legacy CCTV to a modern IP-based system.

True Day/Night Switching
The camera is a true day/night camera with a mechanical filter for daytime color and night-time imaging while maintaining sharp focus under all lighting conditions. The filter can be switched remotely or automatically via a light level sensor or contact input.

Data Security
The three-level password protection with security recommendations allows users to customize device access. Web browser access can be protected using HTTPS and firmware updates can also be protected with authenticated secure uploads. The on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support provide protection from malicious attacks. The 802.1x network authentication with EAP/TLS, supports TLS 1.2 with updated cipher suites including AES 256 encryption.

Video Security App
The Bosch video security mobile app has been developed to enable anywhere access to HD surveillance images allowing you to view live images from any location. The app is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions.

System Integration
The camera conforms to ONVIF Profile S, ONVIF Profile Q, and ONVIF Profile G specifications. Compliance with these standards guarantees interoperability between network video products regardless of manufacturer.

FEATURES

• Excellent low-light performance (0.017 lx in color)
• Aesthetic vandal-resistant enclosure, suitable for indoor or outdoor applications
• Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
• Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
• Easy to install with auto zoom/focus SR lens, wizard and pre-configured modes
